Datasheet AD8229-KGD (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 1 nV/√Hz Low Noise 210°C Instrumentation Amplifier |
| Pages / Page | 8 / 5 — Known Good Die. AD8229-KGD. Parameter. Test Conditions/Comments. Min. … |
| File Format / Size | PDF / 148 Kb |
| Document Language | English |

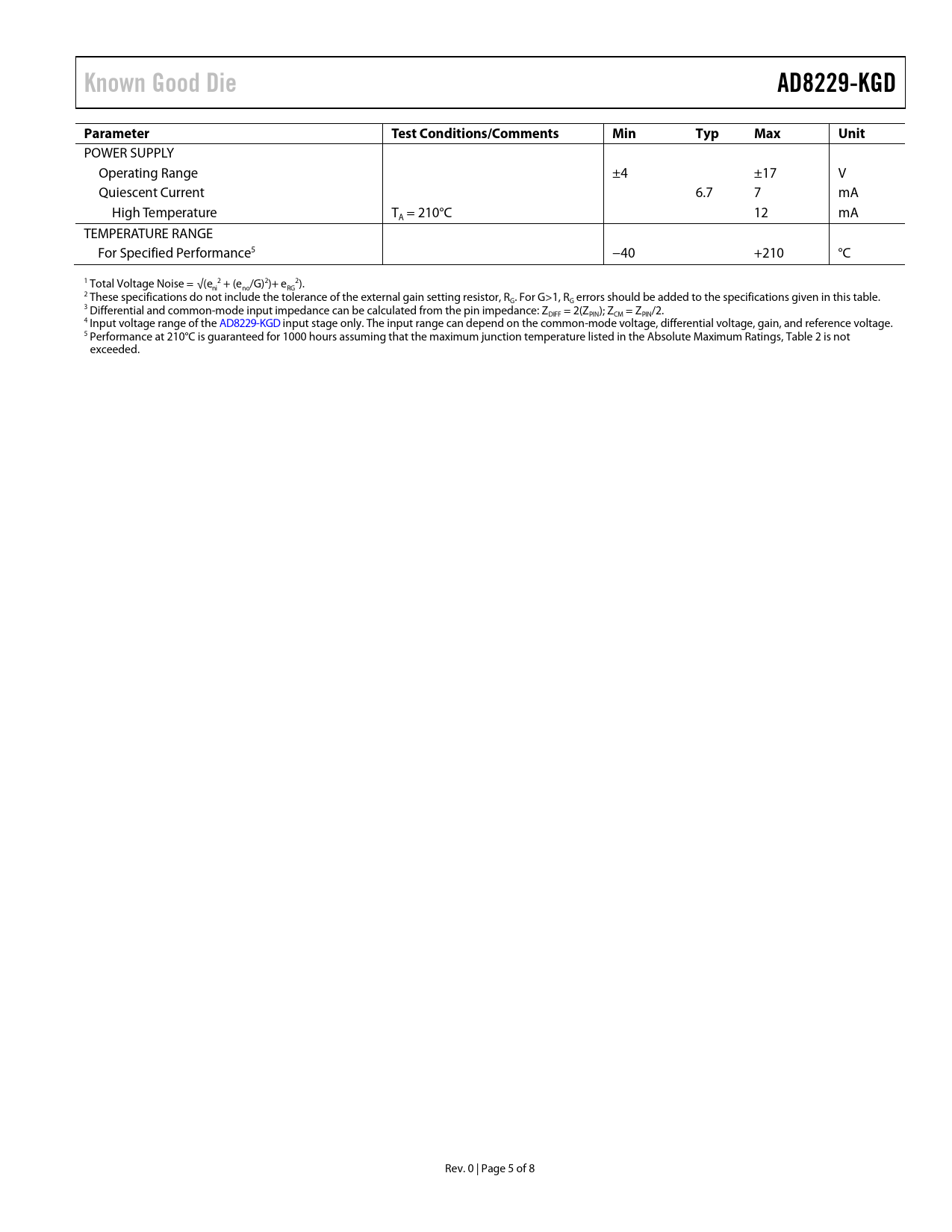

Known Good Die. AD8229-KGD. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 6 link to page 6 link to page 5
Known Good Die AD8229-KGD Parameter Test Conditions/Comments Min Typ Max Unit
POWER SUPPLY Operating Range ±4 ±17 V Quiescent Current 6.7 7 mA High Temperature T = 210°C 12 mA A TEMPERATURE RANGE For Specified Performance5 −40 +210 °C 1 Total Voltage Noise = √(e 2 2 ni + (eno/G)2)+ eRG ). 2 These specifications do not include the tolerance of the external gain setting resistor, RG. For G>1, RG errors should be added to the specifications given in this table. 3 Differential and common-mode input impedance can be calculated from the pin impedance: ZDIFF = 2(ZPIN); ZCM = ZPIN/2. 4 Input voltage range of the AD8229-KGD input stage only. The input range can depend on the common-mode voltage, differential voltage, gain, and reference voltage. 5 Performance at 210°C is guaranteed for 1000 hours assuming that the maximum junction temperature listed in the Absolute Maximum Ratings, Table 2 is not exceeded. Rev. 0 | Page 5 of 8 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings ESD Caution Pad Configuration and Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide
Known Good Die AD8229-KGD Parameter Test Conditions/Comments Min Typ Max Unit
POWER SUPPLY Operating Range ±4 ±17 V Quiescent Current 6.7 7 mA High Temperature T = 210°C 12 mA A TEMPERATURE RANGE For Specified Performance5 −40 +210 °C 1 Total Voltage Noise = √(e 2 2 ni + (eno/G)2)+ eRG ). 2 These specifications do not include the tolerance of the external gain setting resistor, RG. For G>1, RG errors should be added to the specifications given in this table. 3 Differential and common-mode input impedance can be calculated from the pin impedance: ZDIFF = 2(ZPIN); ZCM = ZPIN/2. 4 Input voltage range of the AD8229-KGD input stage only. The input range can depend on the common-mode voltage, differential voltage, gain, and reference voltage. 5 Performance at 210°C is guaranteed for 1000 hours assuming that the maximum junction temperature listed in the Absolute Maximum Ratings, Table 2 is not exceeded. Rev. 0 | Page 5 of 8 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings ESD Caution Pad Configuration and Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide
