Datasheet AD8229-KGD (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | 1 nV/√Hz Low Noise 210°C Instrumentation Amplifier |
| Pages / Page | 8 / 8 — AD8229-KGD. Known Good Die. OUTLINE DIMENSIONS. 0.493 0.483 0.473. 1.755. … |
| File Format / Size | PDF / 148 Kb |
| Document Language | English |
AD8229-KGD. Known Good Die. OUTLINE DIMENSIONS. 0.493 0.483 0.473. 1.755. 2.890. 5 6. TOP VIEW. SIDE VIEW. 1- 1. (CIRCUIT SIDE)
Model Line for this Datasheet
Text Version of Document
link to page 8
AD8229-KGD Known Good Die OUTLINE DIMENSIONS 0.493 0.483 0.473 1.755 10 1 2 3 9 2.890 4 5 6 8 7 A TOP VIEW SIDE VIEW 1- 1 (CIRCUIT SIDE) 20 0.092 × 0.092 16- 08-

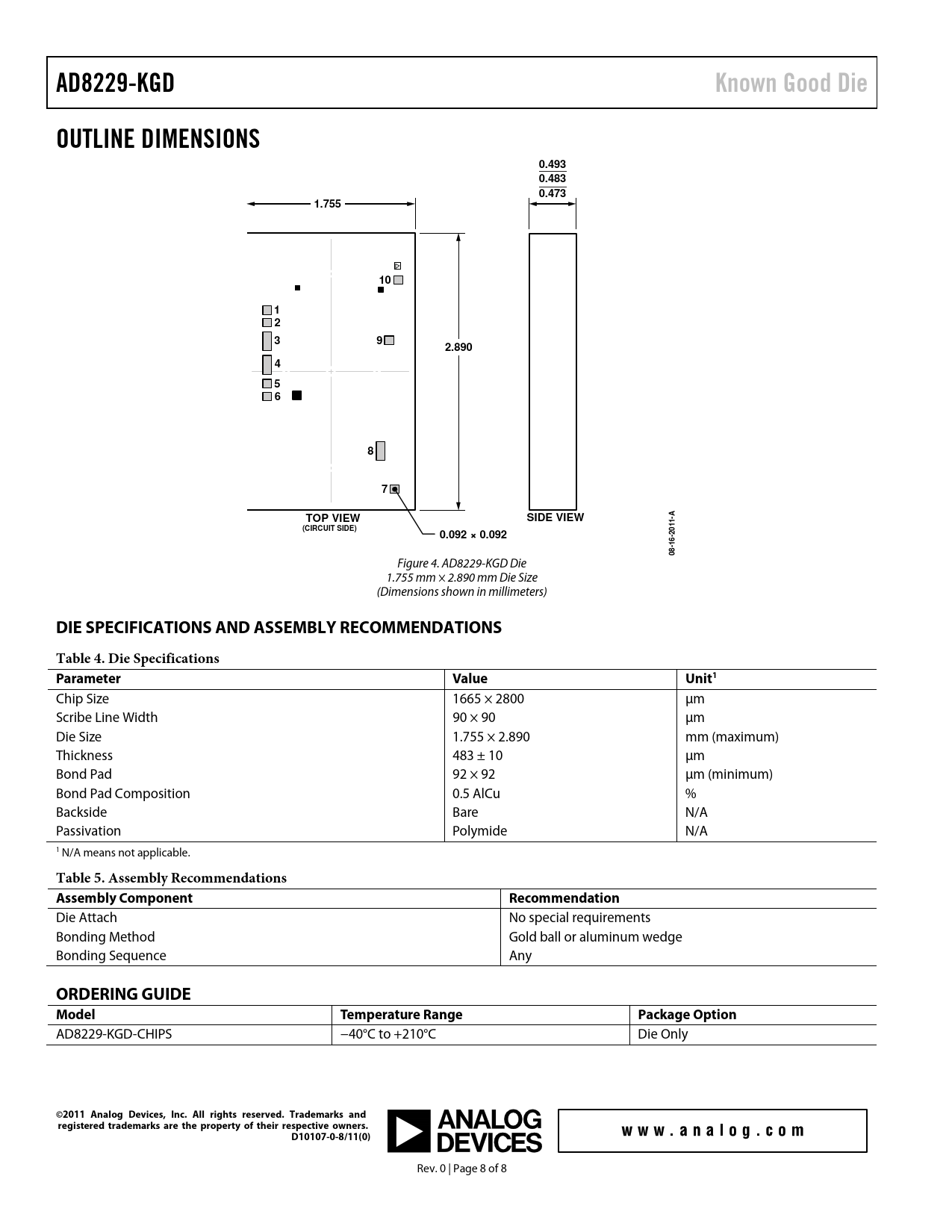

Figure 4. AD8229-KGD Die 1.755 mm × 2.890 mm Die Size (Dimensions shown in millimeters)
DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS Table 4. Die Specifications Parameter Value Unit1
Chip Size 1665 × 2800 μm Scribe Line Width 90 × 90 μm Die Size 1.755 × 2.890 mm (maximum) Thickness 483 ± 10 μm Bond Pad 92 × 92 μm (minimum) Bond Pad Composition 0.5 AlCu % Backside Bare N/A Passivation Polymide N/A 1 N/A means not applicable.
Table 5. Assembly Recommendations Assembly Component Recommendation
Die Attach No special requirements Bonding Method Gold ball or aluminum wedge Bonding Sequence Any
ORDERING GUIDE Model Temperature Range Package Option
AD8229-KGD-CHIPS −40°C to +210°C Die Only
