Datasheet ADL5513 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | 1 MHz TO 4 GHz, 80 dB Logarithmic Detector / Controller |
| Pages / Page | 26 / 8 — Data Sheet. ADL5513. ABSOLUTE MAXIMUM RATINGS Table 2. ESD CAUTION. … |
| Revision | A |
| File Format / Size | PDF / 1.4 Mb |
| Document Language | English |

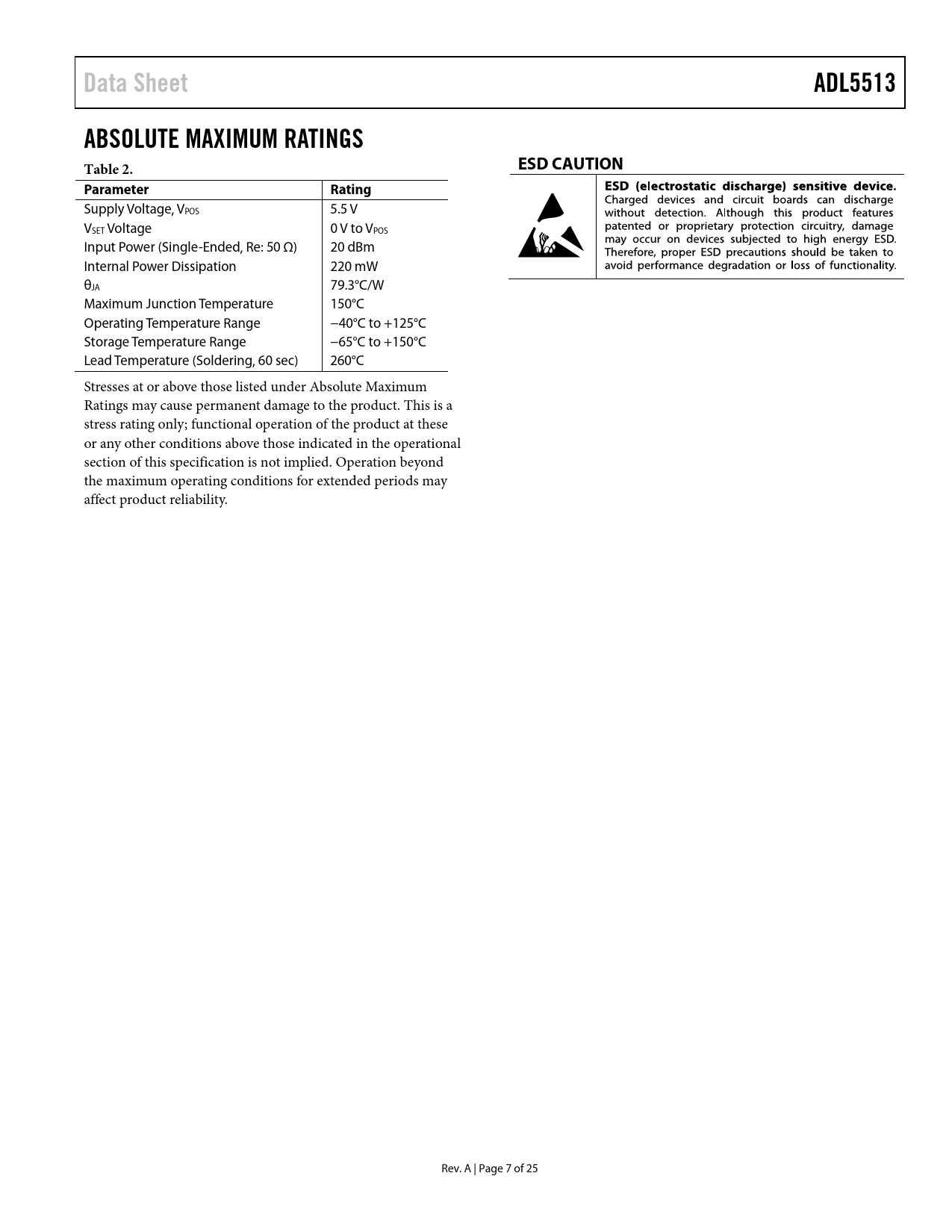

Data Sheet. ADL5513. ABSOLUTE MAXIMUM RATINGS Table 2. ESD CAUTION. Parameter. Rating
Text Version of Document
Data Sheet ADL5513 ABSOLUTE MAXIMUM RATINGS Table 2. ESD CAUTION Parameter Rating
Supply Voltage, VPOS 5.5 V VSET Voltage 0 V to VPOS Input Power (Single-Ended, Re: 50 Ω) 20 dBm Internal Power Dissipation 220 mW θJA 79.3°C/W Maximum Junction Temperature 150°C Operating Temperature Range −40°C to +125°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 260°C Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. A | Page 7 of 25 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Applications Information Basic Connections Input Signal Coupling Output Filtering Output Interface Setpoint Interface Description of Characterization Error Calculations Adjusting Accuracy Through Choice of Calibration Points Temperature Compensation of Output Voltage Device Calibration Power-Down Functionality Measurement Mode Setting the Output Slope in Measurement Mode Controller Mode Constant Power Operation Increasing the Dynamic Range of the ADL5513 Evaluation Board Outline Dimensions Ordering Guide
