Datasheet ADA4800-KGD (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | Low Power, High Speed CCD Buffer Amplifier |
| Pages / Page | 7 / 3 — Known Good Die. ADA4800-KGD. SPECIFICATIONS BUFFER ELECTRICAL … |
| File Format / Size | PDF / 206 Kb |
| Document Language | English |
Known Good Die. ADA4800-KGD. SPECIFICATIONS BUFFER ELECTRICAL CHARACTERISTICS. Table 1. Parameter Test. Conditions/Comments. Min
Model Line for this Datasheet
Text Version of Document
link to page 6 link to page 6

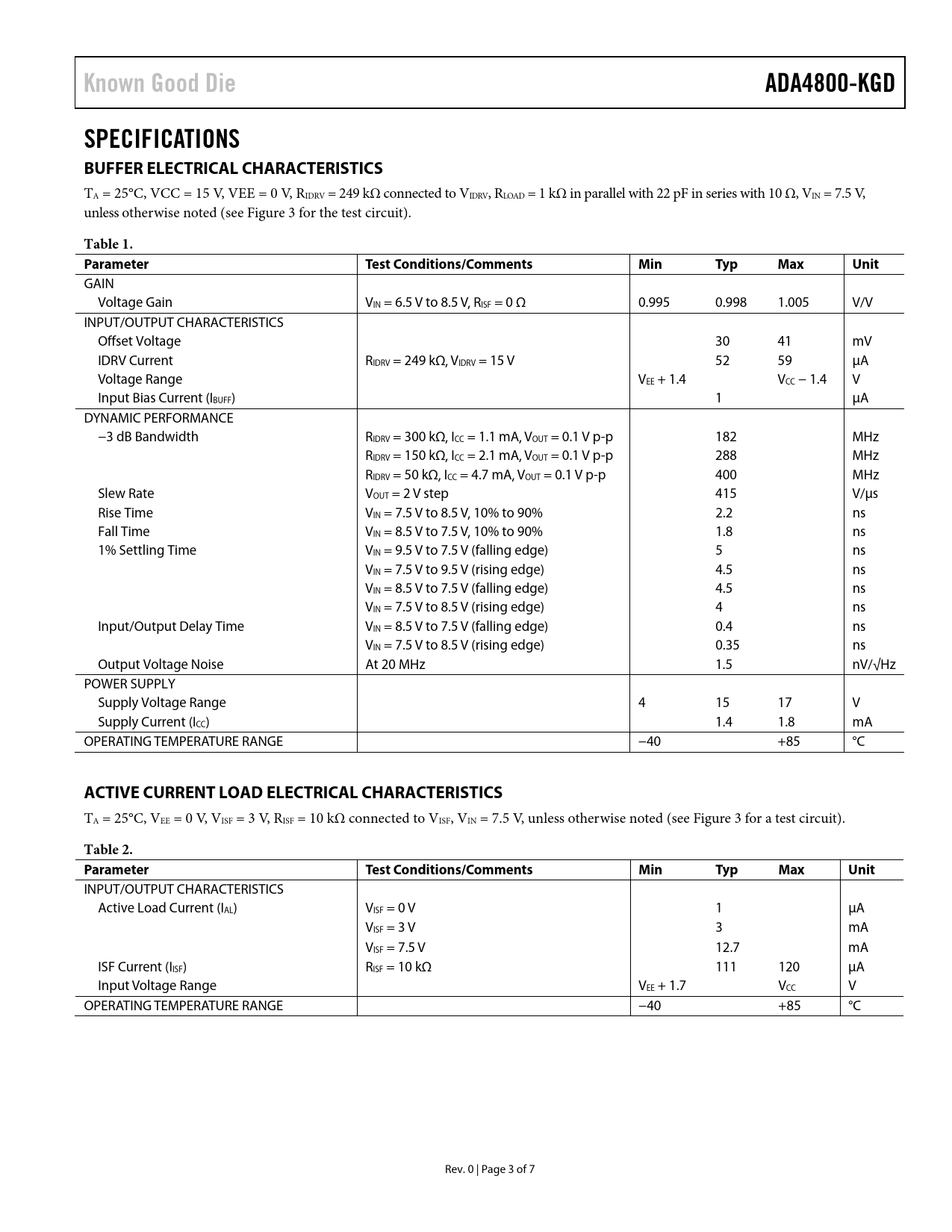

Known Good Die ADA4800-KGD SPECIFICATIONS BUFFER ELECTRICAL CHARACTERISTICS
TA = 25°C, VCC = 15 V, VEE = 0 V, RIDRV = 249 kΩ connected to VIDRV, RLOAD = 1 kΩ in parallel with 22 pF in series with 10 Ω, VIN = 7.5 V, unless otherwise noted (see Figure 3 for the test circuit).
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
GAIN Voltage Gain VIN = 6.5 V to 8.5 V, RISF = 0 Ω 0.995 0.998 1.005 V/V INPUT/OUTPUT CHARACTERISTICS Offset Voltage 30 41 mV IDRV Current RIDRV = 249 kΩ, VIDRV = 15 V 52 59 μA Voltage Range VEE + 1.4 VCC − 1.4 V Input Bias Current (IBUFF) 1 μA DYNAMIC PERFORMANCE −3 dB Bandwidth RIDRV = 300 kΩ, ICC = 1.1 mA, VOUT = 0.1 V p-p 182 MHz RIDRV = 150 kΩ, ICC = 2.1 mA, VOUT = 0.1 V p-p 288 MHz RIDRV = 50 kΩ, ICC = 4.7 mA, VOUT = 0.1 V p-p 400 MHz Slew Rate VOUT = 2 V step 415 V/μs Rise Time VIN = 7.5 V to 8.5 V, 10% to 90% 2.2 ns Fall Time VIN = 8.5 V to 7.5 V, 10% to 90% 1.8 ns 1% Settling Time VIN = 9.5 V to 7.5 V (falling edge) 5 ns VIN = 7.5 V to 9.5 V (rising edge) 4.5 ns VIN = 8.5 V to 7.5 V (falling edge) 4.5 ns VIN = 7.5 V to 8.5 V (rising edge) 4 ns Input/Output Delay Time VIN = 8.5 V to 7.5 V (falling edge) 0.4 ns VIN = 7.5 V to 8.5 V (rising edge) 0.35 ns Output Voltage Noise At 20 MHz 1.5 nV/√Hz POWER SUPPLY Supply Voltage Range 4 15 17 V Supply Current (ICC) 1.4 1.8 mA OPERATING TEMPERATURE RANGE −40 +85 °C
ACTIVE CURRENT LOAD ELECTRICAL CHARACTERISTICS
TA = 25°C, VEE = 0 V, VISF = 3 V, RISF = 10 kΩ connected to VISF, VIN = 7.5 V, unless otherwise noted (see Figure 3 for a test circuit).
Table 2. Parameter Test Conditions/Comments Min Typ Max Unit
INPUT/OUTPUT CHARACTERISTICS Active Load Current (IAL) VISF = 0 V 1 μA VISF = 3 V 3 mA VISF = 7.5 V 12.7 mA ISF Current (IISF) RISF = 10 kΩ 111 120 μA Input Voltage Range VEE + 1.7 VCC V OPERATING TEMPERATURE RANGE −40 +85 °C Rev. 0 | Page 3 of 7 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS BUFFER ELECTRICAL CHARACTERISTICS ACTIVE CURRENT LOAD ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUIT OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
