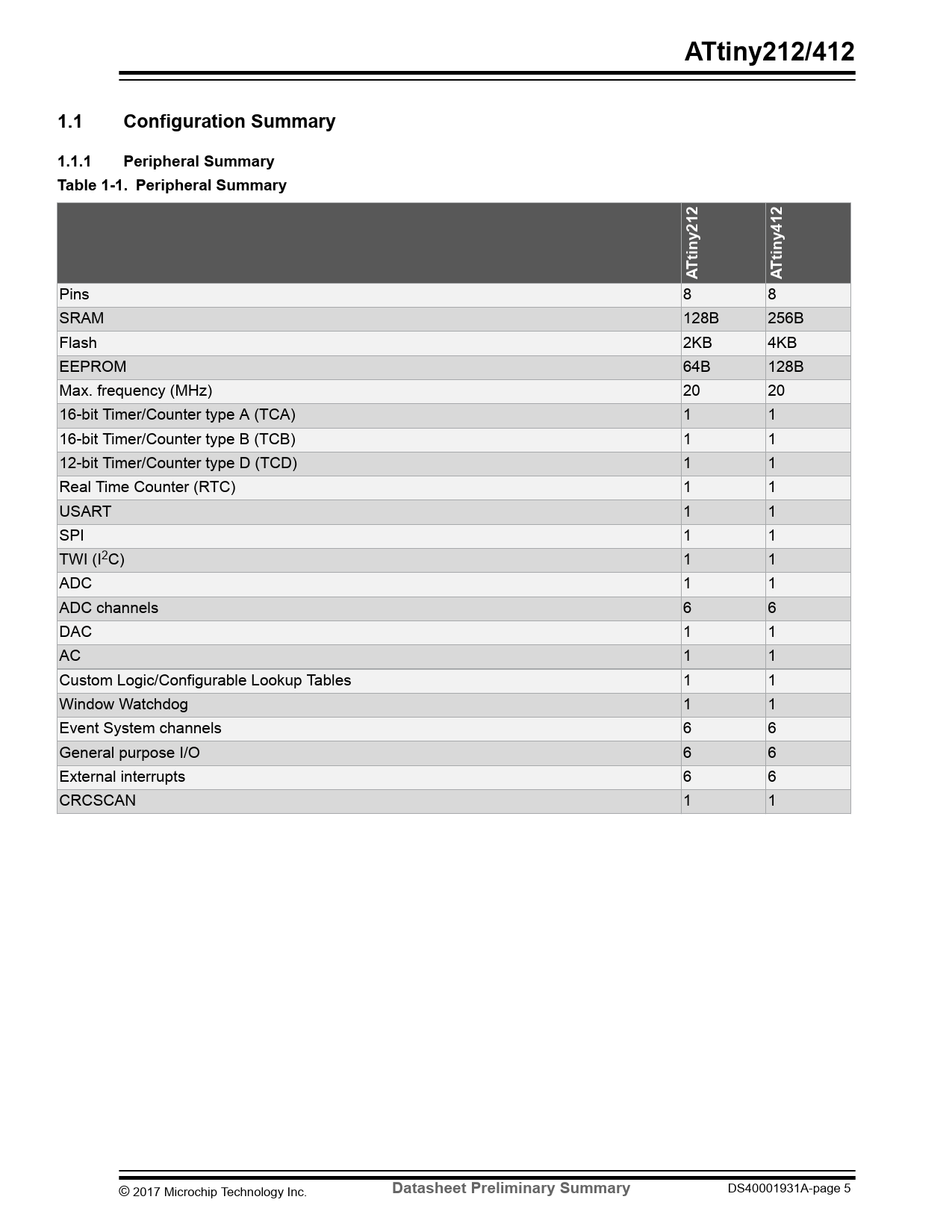

ATtiny212/412. 1.1. Configuration Summary. 1.1.1. Peripheral Summary. Table 1-1. Peripheral Summary. Ttiny212. Ttiny412
Model Line for this Datasheet
Text Version of Document
ATtiny212/412 1.1 Configuration Summary 1.1.1 Peripheral Summary Table 1-1. Peripheral Summary Ttiny212 Ttiny412 A A
Pins 8 8 SRAM 128B 256B Flash 2KB 4KB EEPROM 64B 128B Max. frequency (MHz) 20 20 16-bit Timer/Counter type A (TCA) 1 1 16-bit Timer/Counter type B (TCB) 1 1 12-bit Timer/Counter type D (TCD) 1 1 Real Time Counter (RTC) 1 1 USART 1 1 SPI 1 1 TWI (I2C) 1 1 ADC 1 1 ADC channels 6 6 DAC 1 1 AC 1 1 Custom Logic/Configurable Lookup Tables 1 1 Window Watchdog 1 1 Event System channels 6 6 General purpose I/O 6 6 External interrupts 6 6 CRCSCAN 1 1 © 2017 Microchip Technology Inc.
Datasheet Preliminary Summary
DS40001931A-page 5 Document Outline Introduction Features Table of Contents 1. tinyAVR® 1-Series Overview 1.1. Configuration Summary 1.1.1. Peripheral Summary 2. Ordering Information 2.1. ATtiny212 2.2. ATtiny412 3. Block Diagram 4. Pinout 4.1. 8-pin SOIC 5. I/O Multiplexing and Considerations 5.1. Multiplexed Signals 6. Package Drawings 6.1. 8-pin SOIC150 7. Thermal Considerations 7.1. Thermal Resistance Data 7.2. Junction Temperature The Microchip Web Site Customer Change Notification Service Customer Support Microchip Devices Code Protection Feature Legal Notice Trademarks Quality Management System Certified by DNV Worldwide Sales and Service
