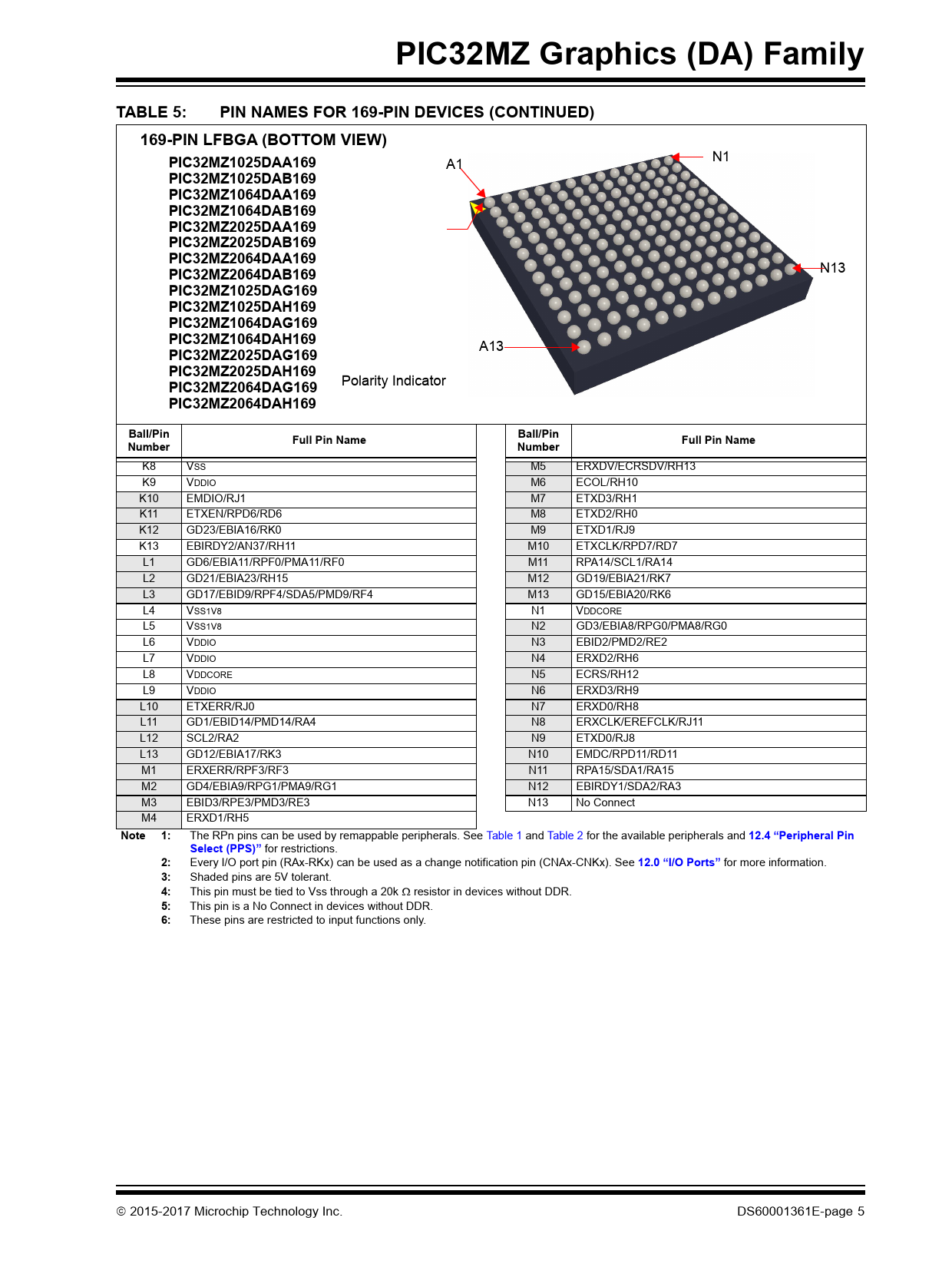

PIC32MZ Graphics (DA) Family TABLE 5: PIN NAMES FOR 169-PIN DEVICES (CONTINUED) 169-PIN LFBGA (BOTTOM VIEW)
A1 N1
PIC32MZ1025DAA169 PIC32MZ1025DAB169 PIC32MZ1064DAA169 PIC32MZ1064DAB169 PIC32MZ2025DAA169 PIC32MZ2025DAB169 PIC32MZ2064DAA169
N13
PIC32MZ2064DAB169 PIC32MZ1025DAG169 PIC32MZ1025DAH169 PIC32MZ1064DAG169 PIC32MZ1064DAH169
A13
PIC32MZ2025DAG169 PIC32MZ2025DAH169 PIC32MZ2064DAG169
Polarity Indicator
PIC32MZ2064DAH169 Ball/Pin Ball/Pin Full Pin Name Full Pin Name Number Number
K8 VSS M5 ERXDV/ECRSDV/RH13 K9 VDDIO M6 ECOL/RH10 K10 EMDIO/RJ1 M7 ETXD3/RH1 K11 ETXEN/RPD6/RD6 M8 ETXD2/RH0 K12 GD23/EBIA16/RK0 M9 ETXD1/RJ9 K13 EBIRDY2/AN37/RH11 M10 ETXCLK/RPD7/RD7 L1 GD6/EBIA11/RPF0/PMA11/RF0 M11 RPA14/SCL1/RA14 L2 GD21/EBIA23/RH15 M12 GD19/EBIA21/RK7 L3 GD17/EBID9/RPF4/SDA5/PMD9/RF4 M13 GD15/EBIA20/RK6 L4 VSS1V8 N1 VDDCORE L5 VSS1V8 N2 GD3/EBIA8/RPG0/PMA8/RG0 L6 VDDIO N3 EBID2/PMD2/RE2 L7 VDDIO N4 ERXD2/RH6 L8 VDDCORE N5 ECRS/RH12 L9 VDDIO N6 ERXD3/RH9 L10 ETXERR/RJ0 N7 ERXD0/RH8 L11 GD1/EBID14/PMD14/RA4 N8 ERXCLK/EREFCLK/RJ11 L12 SCL2/RA2 N9 ETXD0/RJ8 L13 GD12/EBIA17/RK3 N10 EMDC/RPD11/RD11 M1 ERXERR/RPF3/RF3 N11 RPA15/SDA1/RA15 M2 GD4/EBIA9/RPG1/PMA9/RG1 N12 EBIRDY1/SDA2/RA3 M3 EBID3/RPE3/PMD3/RE3 N13 No Connect M4 ERXD1/RH5
Note 1:
The RPn pins can be used by remappable peripherals. See Table 1 and Table 2 for the available peripherals and
12.4 “Peripheral Pin Select (PPS)”
for restrictions.
2:
Every I/O port pin (RAx-RKx) can be used as a change notification pin (CNAx-CNKx). See
12.0 “I/O Ports”
for more information.
3:
Shaded pins are 5V tolerant.
4:
This pin must be tied to Vss through a 20k resistor in devices without DDR.
5:
This pin is a No Connect in devices without DDR.
6:
