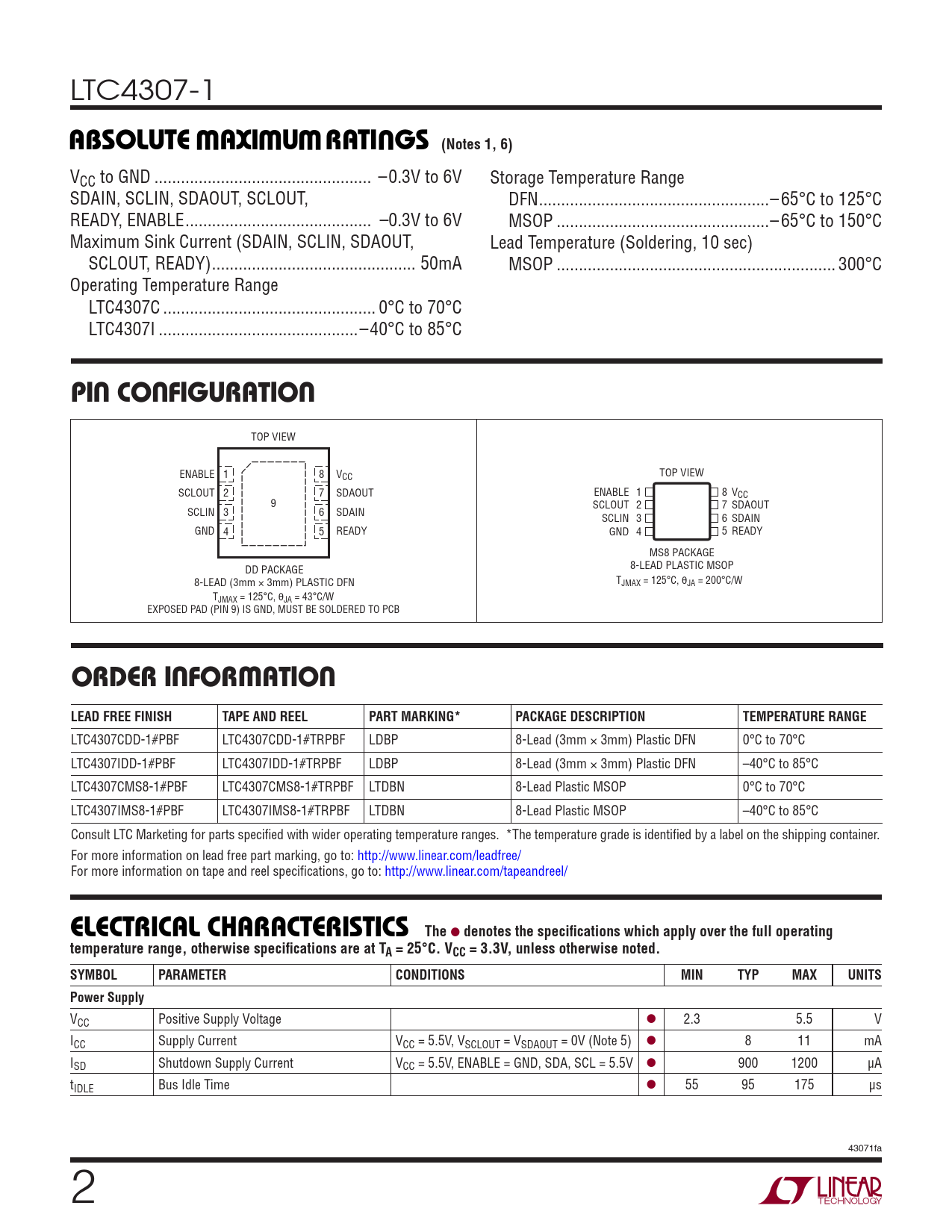

LTC4307-1
W W W U ABSOLUTE AXI U RATI GS (Notes 1, 6)
VCC to GND ... – 0.3V to 6V Storage Temperature Range SDAIN, SCLIN, SDAOUT, SCLOUT, DFN ..– 65°C to 125°C READY, ENABLE .. –0.3V to 6V MSOP ..– 65°C to 150°C Maximum Sink Current (SDAIN, SCLIN, SDAOUT, Lead Temperature (Soldering, 10 sec) SCLOUT, READY) .. 50mA MSOP ... 300°C Operating Temperature Range LTC4307C .. 0°C to 70°C LTC4307I ...– 40°C to 85°C
PIN CONFIGURATION
TOP VIEW ENABLE 1 8 V TOP VIEW CC SCLOUT 2 7 SDAOUT ENABLE 1 8 VCC 9 SCLOUT 2 7 SDAOUT SCLIN 3 6 SDAIN SCLIN 3 6 SDAIN GND 4 5 READY GND 4 5 READY MS8 PACKAGE DD PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 125°C, θJA = 200°C/W TJMAX = 125°C, θJA = 43°C/W EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC4307CDD-1#PBF LTC4307CDD-1#TRPBF LDBP 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC4307IDD-1#PBF LTC4307IDD-1#TRPBF LDBP 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC4307CMS8-1#PBF LTC4307CMS8-1#TRPBF LTDBN 8-Lead Plastic MSOP 0°C to 70°C LTC4307IMS8-1#PBF LTC4307IMS8-1#TRPBF LTDBN 8-Lead Plastic MSOP –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
The ELECTRICAL CHARACTERISTICS
●
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VCC = 3.3V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Power Supply
VCC Positive Supply Voltage ● 2.3 5.5 V ICC Supply Current VCC = 5.5V, VSCLOUT = VSDAOUT = 0V (Note 5) ● 8 11 mA ISD Shutdown Supply Current VCC = 5.5V, ENABLE = GND, SDA, SCL = 5.5V ● 900 1200 μA tIDLE Bus Idle Time ● 55 95 175 μs 43071fa 2
