Datasheet LTC4307-1 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | High Definition Multimedia Interface (HDMI) Level-Shifting 2-Wire Bus Buffer |
| Pages / Page | 12 / 7 — BLOCK DIAGRA. Low Offset Level-Shifting 2-Wire Bus Buffer |
| File Format / Size | PDF / 167 Kb |
| Document Language | English |

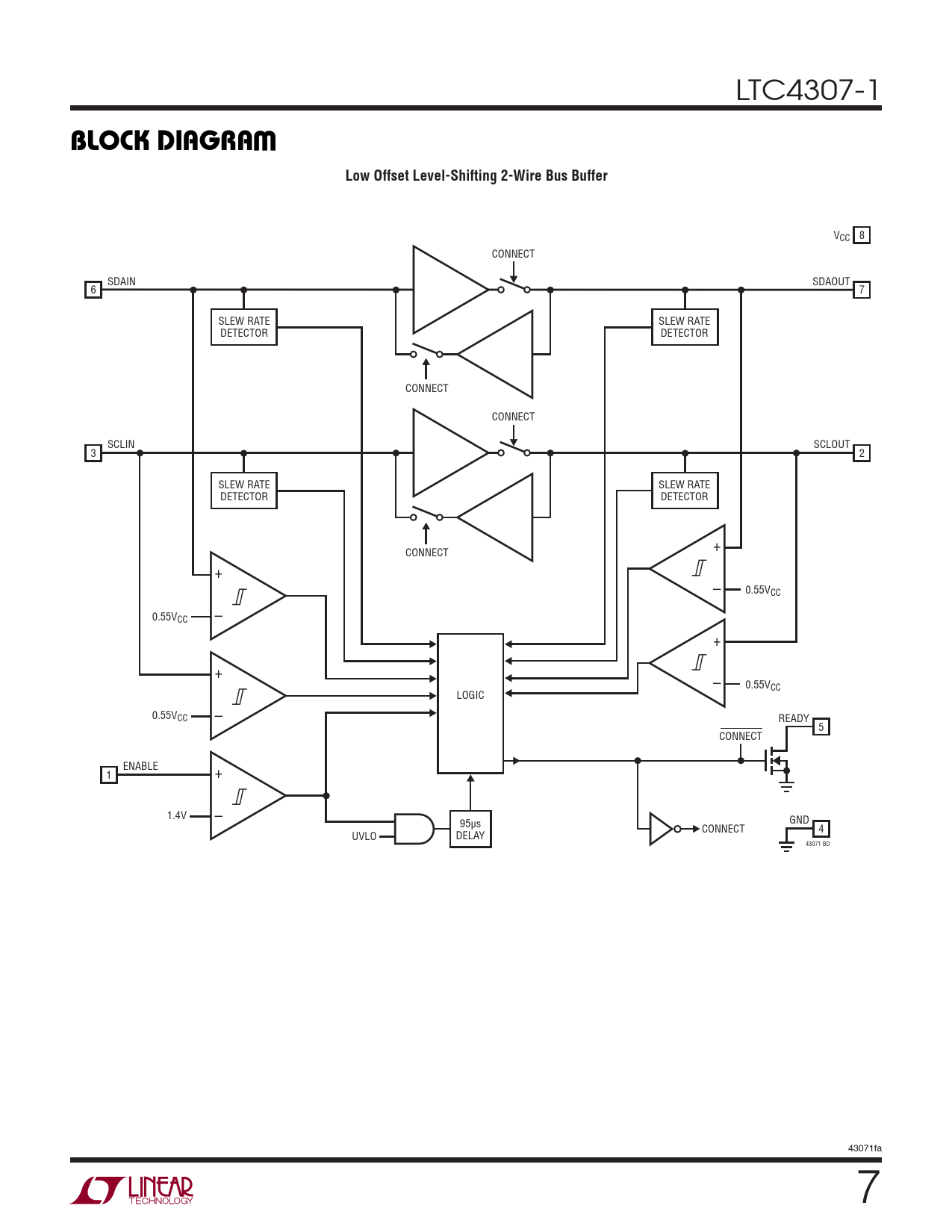

BLOCK DIAGRA. Low Offset Level-Shifting 2-Wire Bus Buffer
Model Line for this Datasheet
Text Version of Document
LTC4307-1
W BLOCK DIAGRA Low Offset Level-Shifting 2-Wire Bus Buffer
VCC 8 CONNECT SDAIN SDAOUT 6 7 SLEW RATE SLEW RATE DETECTOR DETECTOR CONNECT CONNECT SCLIN SCLOUT 3 2 SLEW RATE SLEW RATE DETECTOR DETECTOR + CONNECT + – 0.55VCC 0.55VCC – + + – 0.55VCC LOGIC 0.55VCC – READY 5 CONNECT ENABLE 1 + 1.4V – GND 95μs CONNECT 4 UVLO DELAY 43071 BD 43071fa 7
W BLOCK DIAGRA Low Offset Level-Shifting 2-Wire Bus Buffer
VCC 8 CONNECT SDAIN SDAOUT 6 7 SLEW RATE SLEW RATE DETECTOR DETECTOR CONNECT CONNECT SCLIN SCLOUT 3 2 SLEW RATE SLEW RATE DETECTOR DETECTOR + CONNECT + – 0.55VCC 0.55VCC – + + – 0.55VCC LOGIC 0.55VCC – READY 5 CONNECT ENABLE 1 + 1.4V – GND 95μs CONNECT 4 UVLO DELAY 43071 BD 43071fa 7
