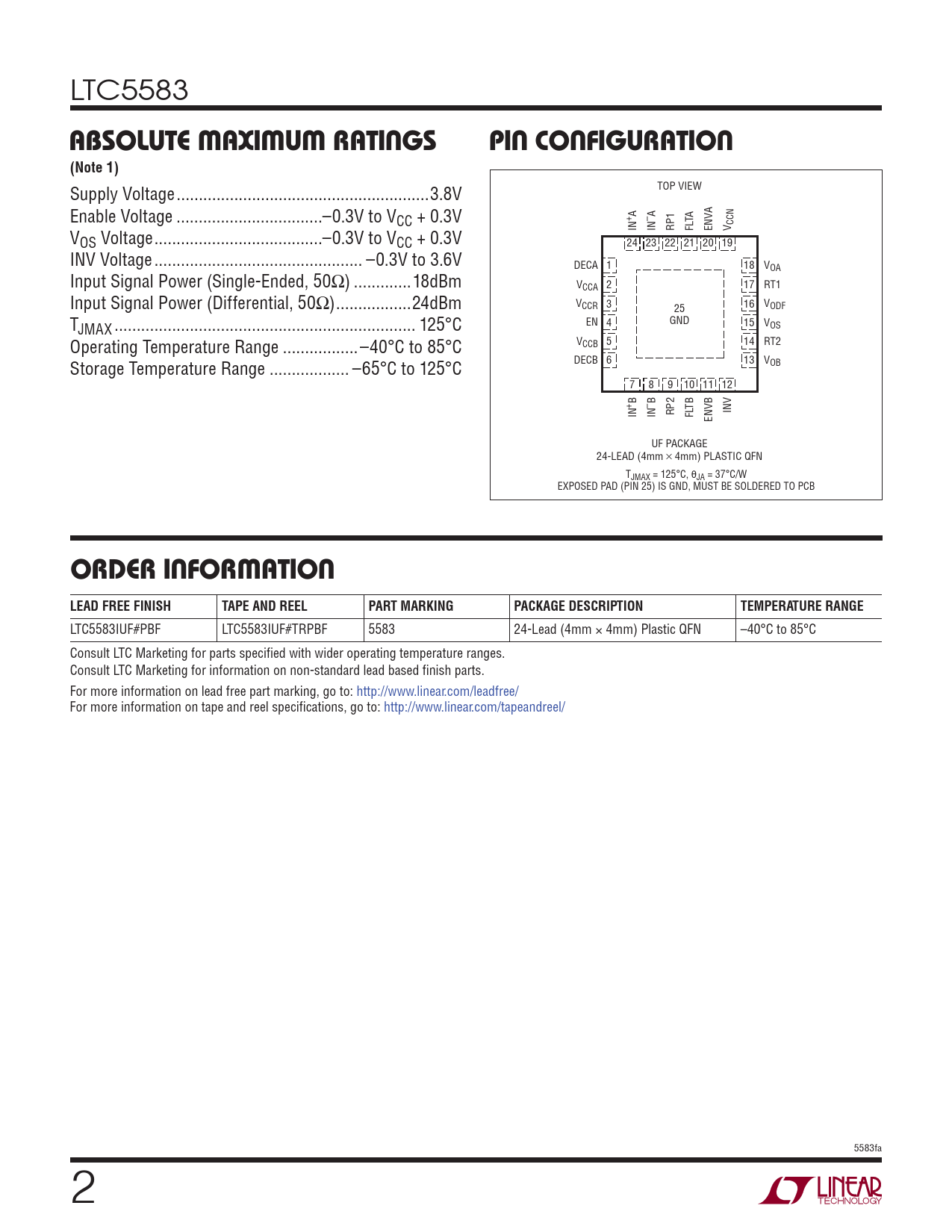

LTC5583
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltage ...3.8V TOP VIEW Enable Voltage ...–0.3V to V A A A CC + 0.3V + – TA CCN IN IN RP1 FL ENV V VOS Voltage ..–0.3V to VCC + 0.3V 24 23 22 21 20 19 INV Voltage ... –0.3V to 3.6V DECA 1 18 VOA Input Signal Power (Single-Ended, 50Ω) ...18dBm VCCA 2 17 RT1 Input Signal Power (Differential, 50Ω) ...24dBm VCCR 3 25 16 VODF T EN 4 GND 15 V JMAX .. 125°C OS Operating Temperature Range ... –40°C to 85°C VCCB 5 14 RT2 DECB 6 13 V Storage Temperature Range .. –65°C to 125°C OB 7 8 9 10 11 12 B B + – TB IN IN RP2 FL INV ENVB UF PACKAGE 24-LEAD (4mm s 4mm) PLASTIC QFN TJMAX = 125°C, θJA = 37°C/W EXPOSED PAD (PIN 25) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC5583IUF#PBF LTC5583IUF#TRPBF 5583 24-Lead (4mm × 4mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 5583fa 2
