DescriptionLow Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometers with Digital Output
Pages / Page42 / 9 — Data Sheet. ADXL356/ADXL357. PIN CONFIGURATIONS AND FUNCTION …
File Format / SizePDF / 1.1 Mb
Document LanguageEnglish

Data Sheet. ADXL356/ADXL357. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. RANGE 1. 11 V. SUPPLY. ST1 2. ADXL356. 10 V1P8ANA. TOP VIEW

Data Sheet ADXL356/ADXL357 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS RANGE 1 11 V SUPPLY ST1 2 ADXL356 10 V1P8ANA TOP VIEW

Model Line for this Datasheet

Text Version of Document

link to page 42

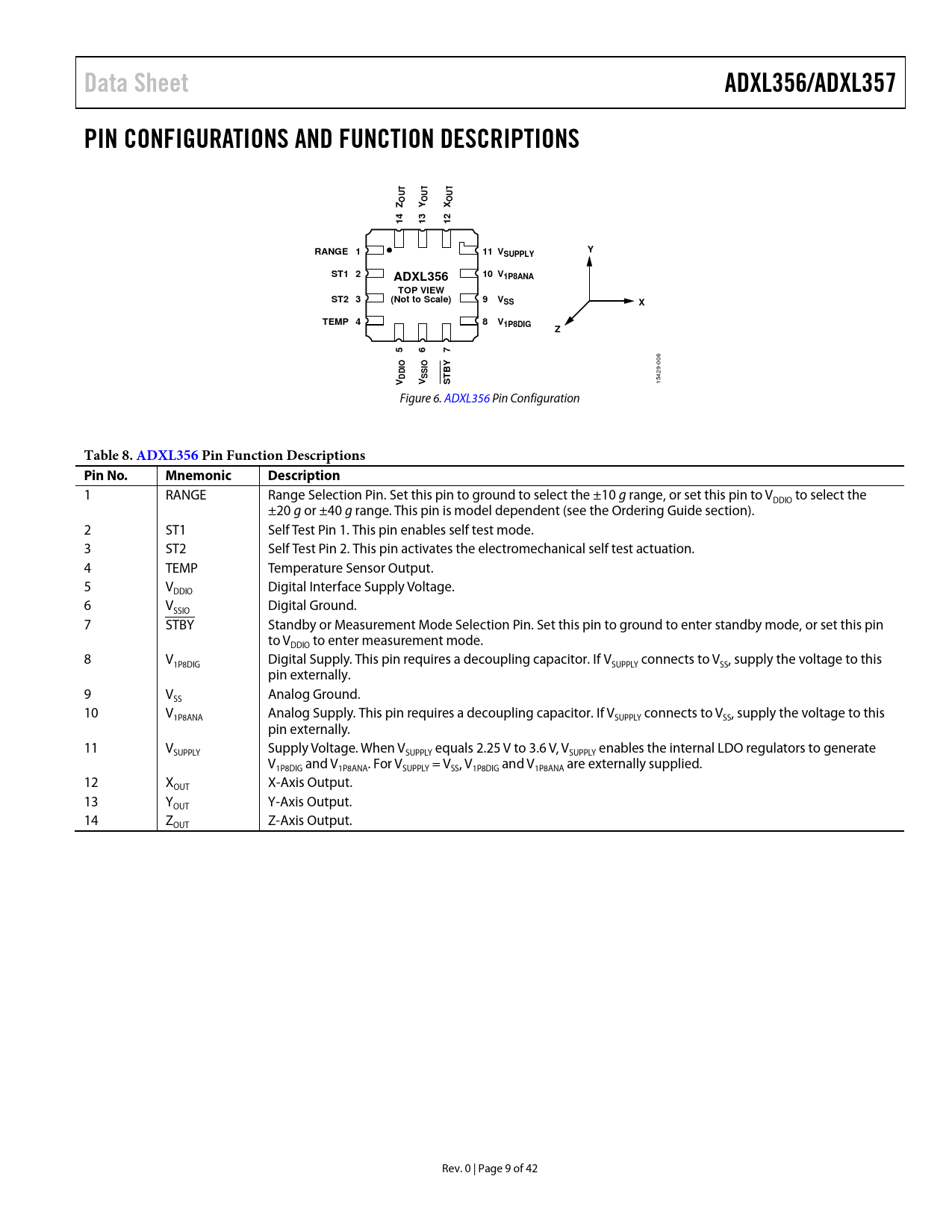

Data Sheet ADXL356/ADXL357 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS UT UT UT O O O Z Y X 14 13 12 RANGE 1 11 V Y SUPPLY ST1 2 ADXL356 10 V1P8ANA TOP VIEW ST2 3 (Not to Scale) 9 VSS X TEMP 4 8 V1P8DIG Z 5 6 7 O O
006
BY DDI SSI T V V S
15429- Figure 6. ADXL356 Pin Configuration
Table 8. ADXL356 Pin Function Descriptions Pin No. Mnemonic Description
