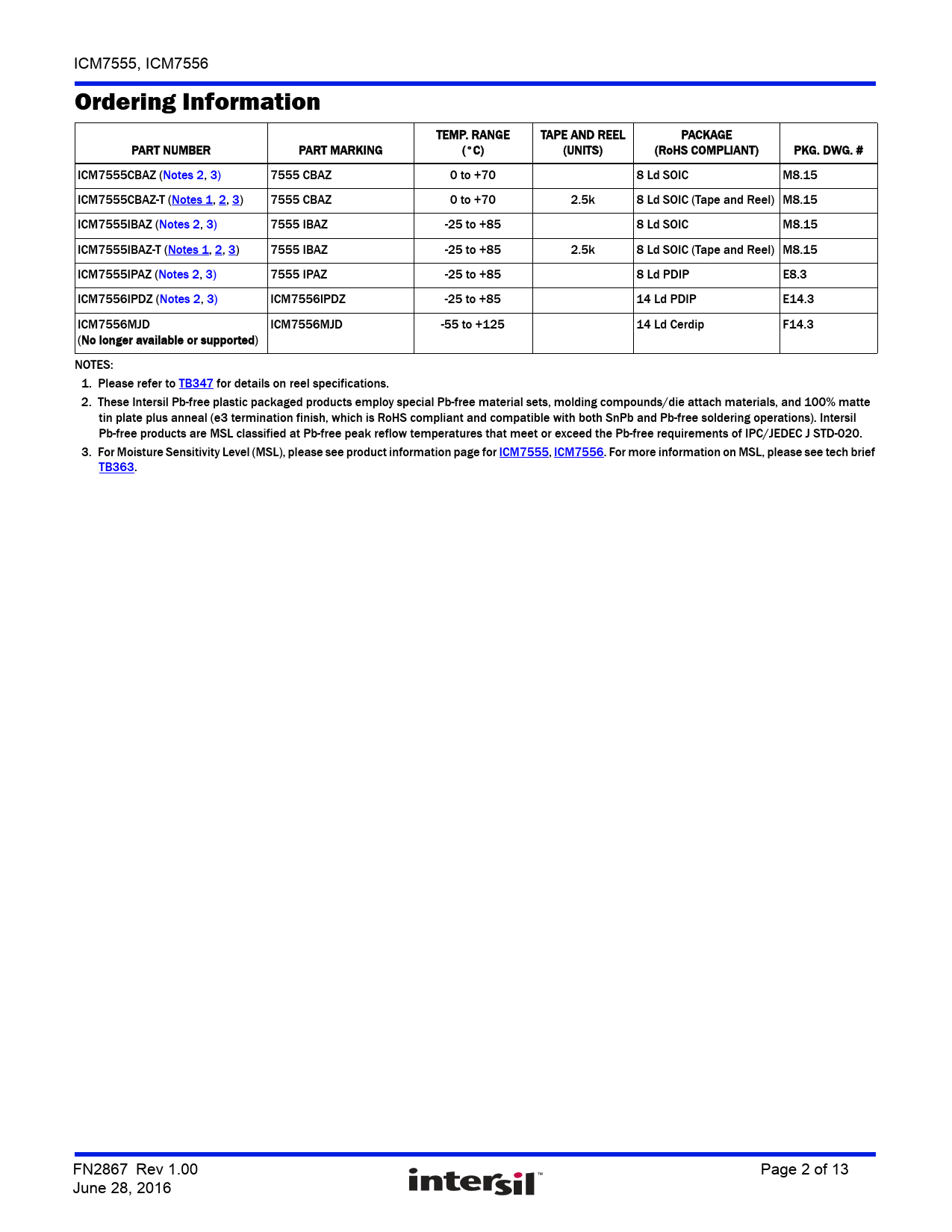

link to page 2 link to page 2 link to page 2 link to page 2 link to page 2 link to page 2 link to page 2 link to page 2 link to page 2 link to page 2 link to page 2 link to page 2 link to page 2 link to page 2 ICM7555, ICM7556 Ordering Information TEMP. RANGE TAPE AND REEL PACKAGE PART NUMBER PART MARKING (°C) (UNITS) (RoHS COMPLIANT) PKG. DWG. # ICM7555CBAZ (Notes 2, 3) 7555 CBAZ 0 to +70 8 Ld SOIC M8.15 ICM7555CBAZ-T (Notes 1, 2, 3) 7555 CBAZ 0 to +70 2.5k 8 Ld SOIC (Tape and Reel) M8.15 ICM7555IBAZ (Notes 2, 3) 7555 IBAZ -25 to +85 8 Ld SOIC M8.15 ICM7555IBAZ-T (Notes 1, 2, 3) 7555 IBAZ -25 to +85 2.5k 8 Ld SOIC (Tape and Reel) M8.15 ICM7555IPAZ (Notes 2, 3) 7555 IPAZ -25 to +85 8 Ld PDIP E8.3 ICM7556IPDZ (Notes 2, 3) ICM7556IPDZ -25 to +85 14 Ld PDIP E14.3 ICM7556MJD ICM7556MJD -55 to +125 14 Ld Cerdip F14.3 (No longer available or supported) NOTES: 1. Please refer to TB347 for details on reel specifications. 2. These Intersil Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020. 3. For Moisture Sensitivity Level (MSL), please see product information page for ICM7555, ICM7556. For more information on MSL, please see tech brief TB363. FN2867 Rev 1.00 Page 2 of 13 June 28, 2016
