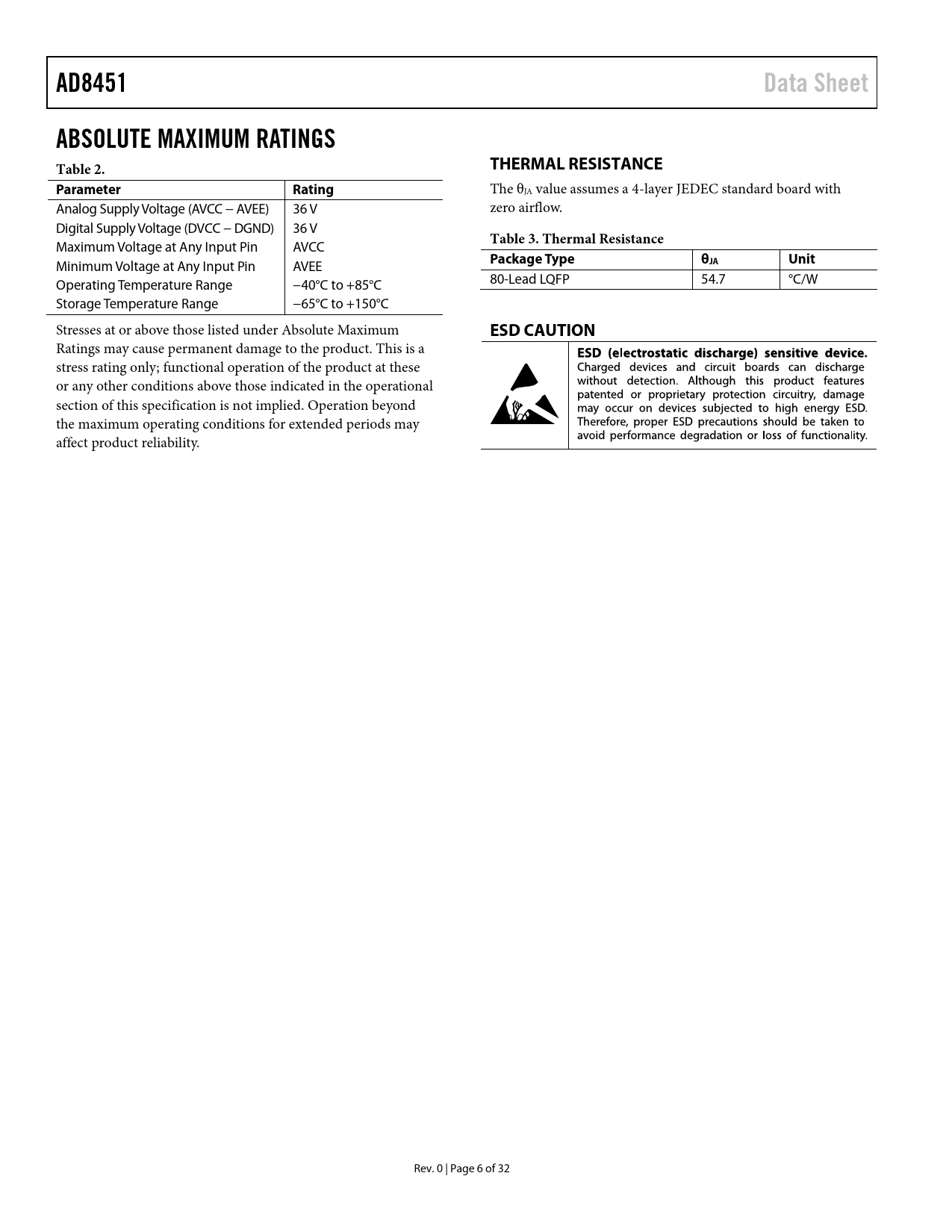

AD8451. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. Rating. Table 3. Thermal Resistance
Model Line for this Datasheet
Text Version of Document
AD8451 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating
The θJA value assumes a 4-layer JEDEC standard board with Analog Supply Voltage (AVCC − AVEE) 36 V zero airflow. Digital Supply Voltage (DVCC − DGND) 36 V Maximum Voltage at Any Input Pin AVCC
Table 3. Thermal Resistance
Minimum Voltage at Any Input Pin AVEE
Package Type θJA Unit
Operating Temperature Range −40°C to +85°C 80-Lead LQFP 54.7 °C/W Storage Temperature Range −65°C to +150°C Stresses at or above those listed under Absolute Maximum
