link. to. page. 9. link. to. page. 9. ISL70444SEH. Electrical. Specifications. VS. =. ±2.5V. VCM. =. VO. =. 0V,. RL. =. Open,. TA. =. +25°C,. unless. otherwise. noted

link to page 9 link to page 9 ISL70444SEH Electrical Specifications VS = ±2.5V VCM = VO = 0V, RL = Open, TA = +25°C, unless otherwise noted

Model Line for this Datasheet

Text Version of Document

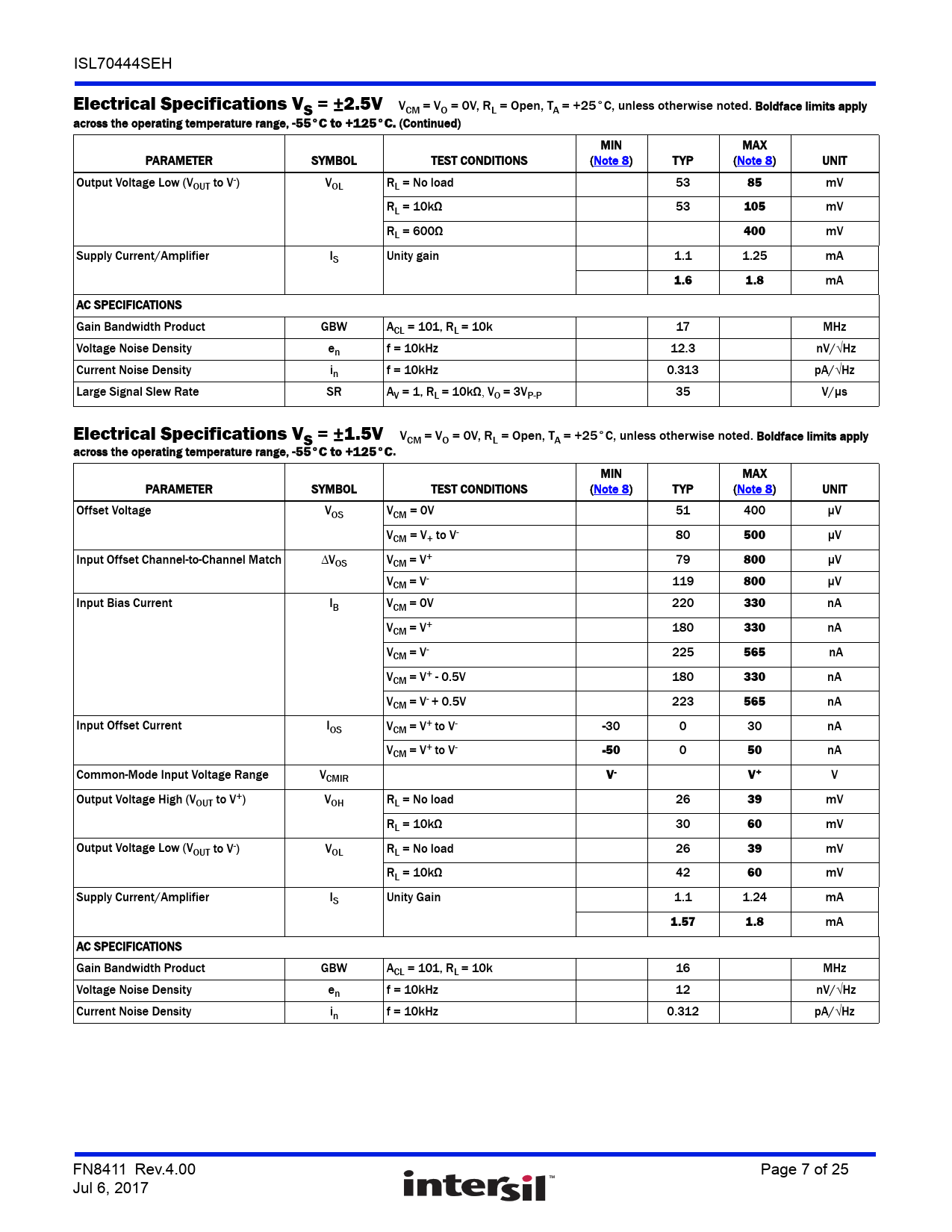

link to page 9 link to page 9 ISL70444SEH Electrical Specifications VS = ±2.5V VCM = VO = 0V, RL = Open, TA = +25°C, unless otherwise noted. Boldface limits apply across the operating temperature range, -55°C to +125°C. (Continued) MIN MAX PARAMETER SYMBOL TEST CONDITIONS (Note 8) TYP (Note 8) UNIT Output Voltage Low (VOUT to V-) VOL RL = No load 53 85 mV RL = 10kΩ 53 105 mV RL = 600Ω 400 mV Supply Current/Amplifier IS Unity gain 1.1 1.25 mA 1.6 1.8 mA AC SPECIFICATIONS Gain Bandwidth Product GBW ACL = 101, RL = 10k 17 MHz Voltage Noise Density en f = 10kHz 12.3 nV/√Hz Current Noise Density in f = 10kHz 0.313 pA/√Hz Large Signal Slew Rate SR AV = 1, RL = 10kΩVO = 3VP-P 35 V/µs Electrical Specifications VS = ±1.5V VCM = VO = 0V, RL = Open, TA = +25°C, unless otherwise noted. Boldface limits apply across the operating temperature range, -55°C to +125°C. MIN MAX PARAMETER SYMBOL TEST CONDITIONS (Note 8) TYP (Note 8) UNIT Offset Voltage VOS VCM = 0V 51 400 µV VCM = V+ to V- 80 500 µV Input Offset Channel-to-Channel Match VOS VCM = V+ 79 800 µV VCM = V- 119 800 µV Input Bias Current IB VCM = 0V 220 330 nA VCM = V+ 180 330 nA VCM = V- 225 565 nA VCM = V+ - 0.5V 180 330 nA VCM = V- + 0.5V 223 565 nA Input Offset Current IOS VCM = V+ to V- -30 0 30 nA VCM = V+ to V- -50 0 50 nA Common-Mode Input Voltage Range VCMIR V- V+ V Output Voltage High (VOUT to V+) VOH RL = No load 26 39 mV RL = 10kΩ 30 60 mV Output Voltage Low (VOUT to V-) VOL RL = No load 26 39 mV RL = 10kΩ 42 60 mV Supply Current/Amplifier IS Unity Gain 1.1 1.24 mA 1.57 1.8 mA AC SPECIFICATIONS Gain Bandwidth Product GBW ACL = 101, RL = 10k 16 MHz Voltage Noise Density en f = 10kHz 12 nV/√Hz Current Noise Density in f = 10kHz 0.312 pA/√Hz FN8411 Rev.4.00 Page 7 of 25 Jul 6, 2017 Document Outline Related Literature Features Applications Table of Contents Pin Configuration Pin Descriptions Ordering Information Absolute Maximum Ratings Thermal Information Recommended Operating Conditions Electrical Specifications VS = ±18V Electrical Specifications VS = ±2.5V Electrical Specifications VS = ±1.5V Electrical Specifications VS = ±18V - Post Radiation Electrical Specifications VS = ±2.5V - Post Radiation Electrical Specifications VS = ±1.5V - Post Radiation Typical Performance Curves Post High Dose Rate Radiation Characteristics Post Low Dose Rate Radiation Characteristics Applications Information Functional Description Operating Voltage Range Input Performance Input ESD Diode Protection Output Short-Circuit Current Limiting Output Phase Reversal Power Dissipation Unused Channel Configuration Die Characteristics Die Dimensions Interface Materials Glassivation Top Metallization Backside Finish Process Assembly Related Information Substrate Potential Additional Information Worst Case Current Density Transistor Count Weight of Packaged Device Lid Characteristics Metallization Mask Layout Revision History About Intersil Package Outline Drawing
