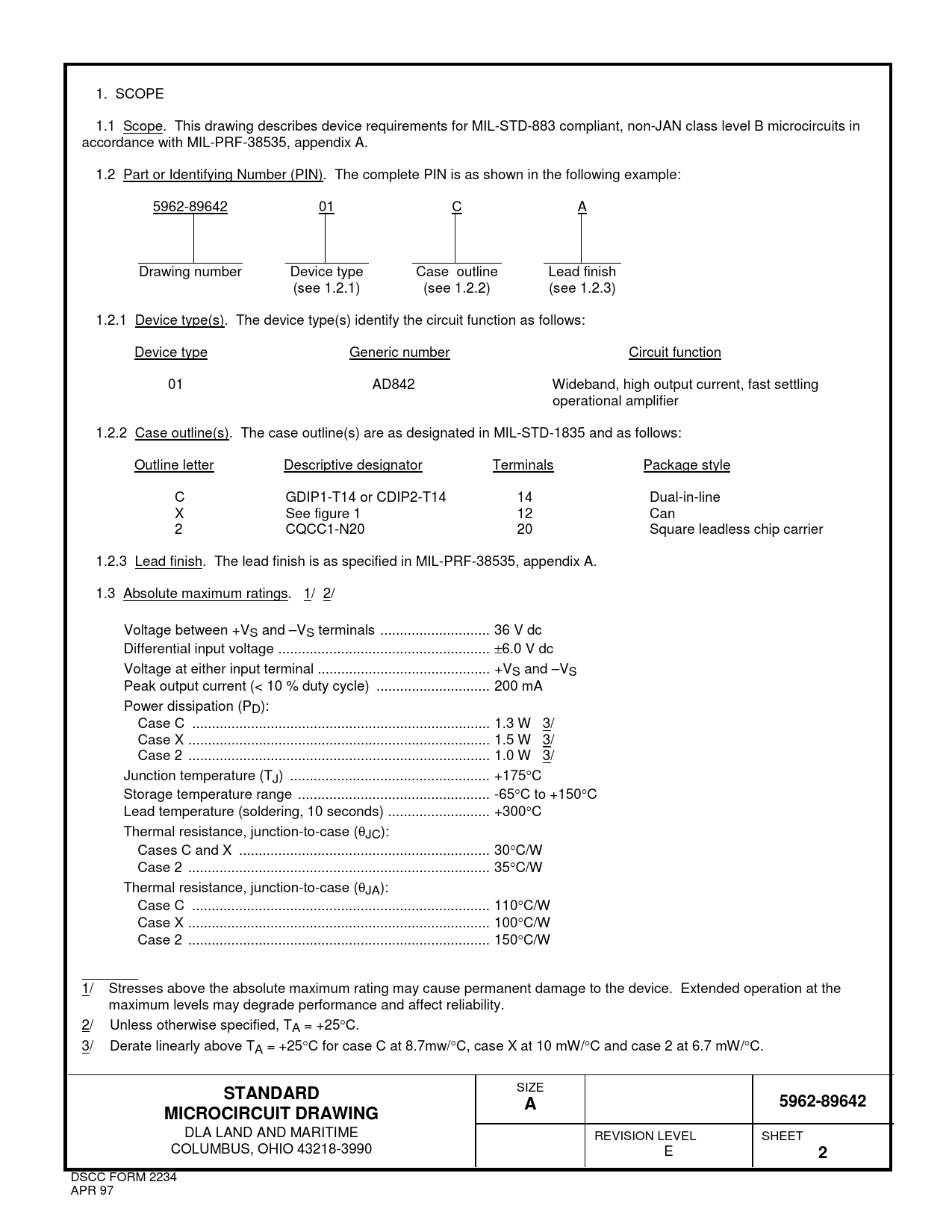

1. SCOPE 1.1 Scope. This drawing describes device requirements for MIL-STD-883 compliant, non-JAN class level B microcircuits in accordance with MIL-PRF-38535, appendix A. 1.2 Part or Identifying Number (PIN). The complete PIN is as shown in the following example: 5962-89642 01 C A Drawing number Device type Case outline Lead finish (see 1.2.1) (see 1.2.2) (see 1.2.3) 1.2.1 Device type(s). The device type(s) identify the circuit function as follows: Device type Generic number Circuit function 01 AD842 Wideband, high output current, fast settling operational amplifier 1.2.2 Case outline(s). The case outline(s) are as designated in MIL-STD-1835 and as follows: Outline letter Descriptive designator Terminals Package style C GDIP1-T14 or CDIP2-T14 14 Dual-in-line X See figure 1 12 Can 2 CQCC1-N20 20 Square leadless chip carrier 1.2.3 Lead finish. The lead finish is as specified in MIL-PRF-38535, appendix A. 1.3 Absolute maximum ratings. 1/ 2/ Voltage between +VS and –VS terminals .. 36 V dc Differential input voltage .. ±6.0 V dc Voltage at either input terminal .. +VS and –VS Peak output current (< 10 % duty cycle) ... 200 mA Power dissipation (PD): Case C .. 1.3 W 3/ Case X ... 1.5 W 3/ Case 2 ... 1.0 W 3/ Junction temperature (TJ) ... +175°C Storage temperature range ... -65°C to +150°C Lead temperature (soldering, 10 seconds) .. +300°C Thermal resistance, junction-to-case (θJC): Cases C and X .. 30°C/W Case 2 ... 35°C/W Thermal resistance, junction-to-case (θJA): Case C .. 110°C/W Case X ... 100°C/W Case 2 ... 150°C/W 1/ Stresses above the absolute maximum rating may cause permanent damage to the device. Extended operation at the maximum levels may degrade performance and affect reliability. 2/ Unless otherwise specified, TA = +25°C. 3/ Derate linearly above TA = +25°C for case C at 8.7mw/°C, case X at 10 mW/°C and case 2 at 6.7 mW/°C.
