PIC16(L)F18425/45. Analog Peripherals. Flexible Oscillator Structure. Datasheet Preliminary
Text Version of Document
PIC16(L)F18425/45

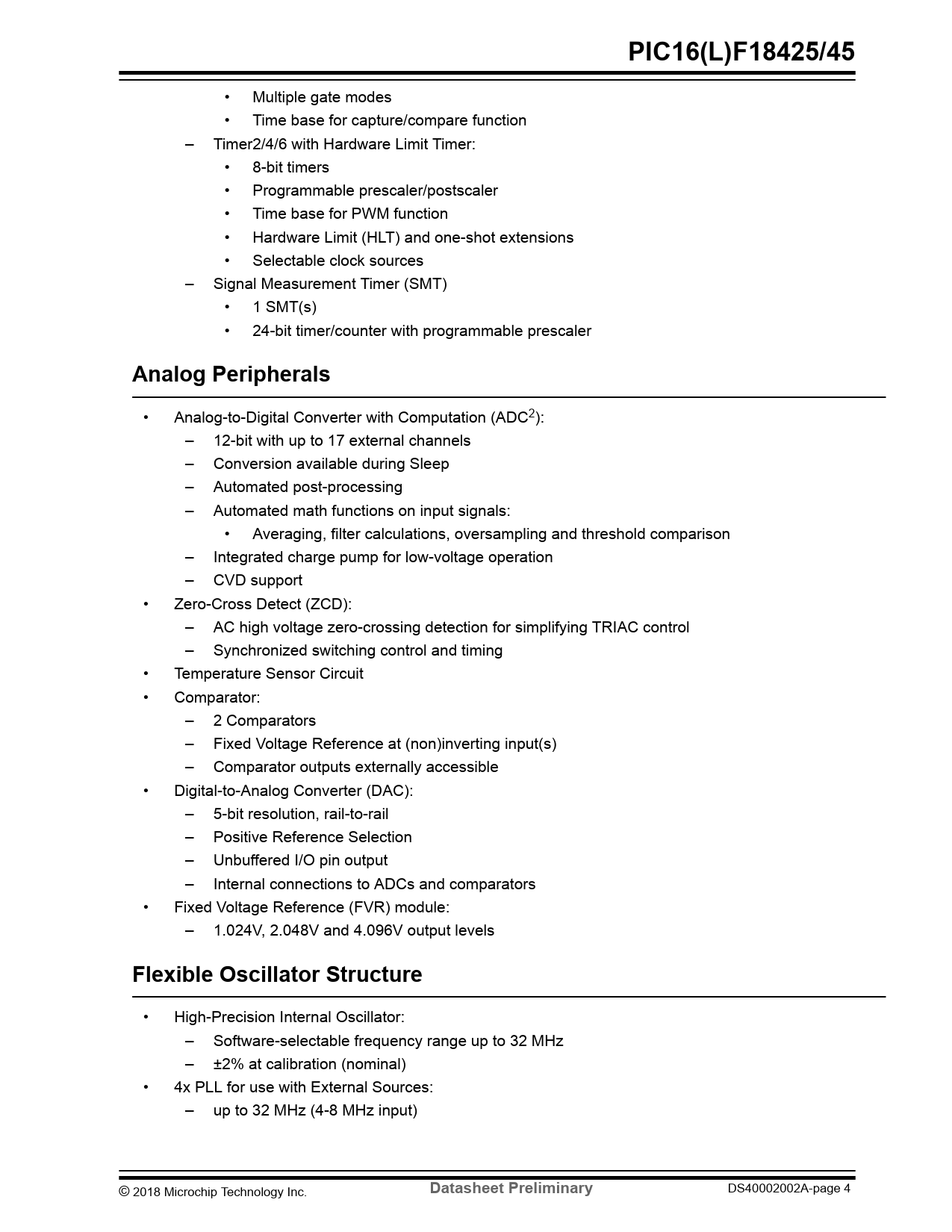

• Multiple gate modes • Time base for capture/compare function – Timer2/4/6 with Hardware Limit Timer: • 8-bit timers • Programmable prescaler/postscaler • Time base for PWM function • Hardware Limit (HLT) and one-shot extensions • Selectable clock sources – Signal Measurement Timer (SMT) • 1 SMT(s) • 24-bit timer/counter with programmable prescaler
Analog Peripherals
• Analog-to-Digital Converter with Computation (ADC2): – 12-bit with up to 17 external channels – Conversion available during Sleep – Automated post-processing – Automated math functions on input signals: • Averaging, filter calculations, oversampling and threshold comparison – Integrated charge pump for low-voltage operation – CVD support • Zero-Cross Detect (ZCD): – AC high voltage zero-crossing detection for simplifying TRIAC control – Synchronized switching control and timing • Temperature Sensor Circuit • Comparator: – 2 Comparators – Fixed Voltage Reference at (non)inverting input(s) – Comparator outputs externally accessible • Digital-to-Analog Converter (DAC): – 5-bit resolution, rail-to-rail – Positive Reference Selection – Unbuffered I/O pin output – Internal connections to ADCs and comparators • Fixed Voltage Reference (FVR) module: – 1.024V, 2.048V and 4.096V output levels
Flexible Oscillator Structure
• High-Precision Internal Oscillator: – Software-selectable frequency range up to 32 MHz – ±2% at calibration (nominal) • 4x PLL for use with External Sources: – up to 32 MHz (4-8 MHz input) © 2018 Microchip Technology Inc.
Datasheet Preliminary
