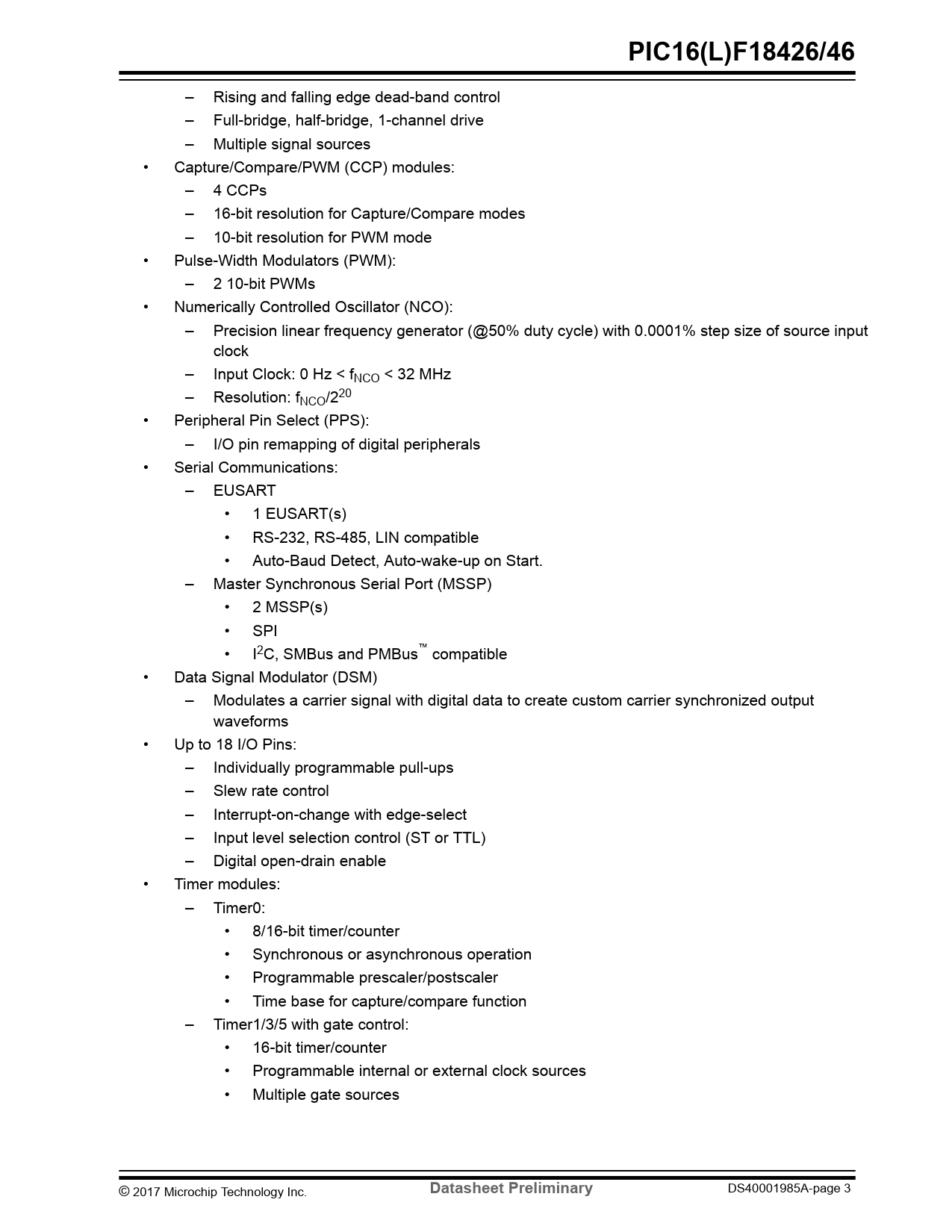

Datasheet PIC16F18426, PIC16F18446, PIC16LF18426, PIC16LF18446 (Microchip) - 3

PIC16(L)F18426/46 • •
• •
• • • • – Rising and falling edge dead-band control
– Full-bridge, half-bridge, 1-channel drive
– Multiple signal sources
Capture/Compare/PWM (CCP) modules:
– 4 CCPs
– 16-bit resolution for Capture/Compare modes
– 10-bit resolution for PWM mode
Pulse-Width Modulators (PWM):
– 2 10-bit PWMs
Numerically Controlled Oscillator (NCO):
– Precision linear frequency generator (@50% duty cycle) with 0.0001% step size of source input
clock
– Input Clock: 0 Hz < fNCO < 32 MHz
– Resolution: fNCO/220
Peripheral Pin Select (PPS):
– I/O pin remapping of digital peripherals
Serial Communications:
– EUSART
• 1 EUSART(s)
• RS-232, RS-485, LIN compatible
• Auto-Baud Detect, Auto-wake-up on Start.
– Master Synchronous Serial Port (MSSP)
• 2 MSSP(s)
• SPI
™
• I2C, SMBus and PMBus compatible
Data Signal Modulator (DSM)
– Modulates a carrier signal with digital data to create custom carrier synchronized output
waveforms
Up to 18 I/O Pins:
– Individually programmable pull-ups
– Slew rate control
– Interrupt-on-change with edge-select
– Input level selection control (ST or TTL)
– Digital open-drain enable
Timer modules:
– Timer0:
• 8/16-bit timer/counter
• Synchronous or asynchronous operation
• Programmable prescaler/postscaler
• Time base for capture/compare function
– Timer1/3/5 with gate control:
• 16-bit timer/counter
• Programmable internal or external clock sources
• Multiple gate sources © 2017 Microchip Technology Inc. Datasheet Preliminary DS40001985A-page 3
