Datasheet RH1016M (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | UltraFast Precision 10ns Comparator |
| Pages / Page | 6 / 2 — TABLE 1: ELECTRICAL CHARACTERISTICS |
| File Format / Size | PDF / 119 Kb |
| Document Language | English |
TABLE 1: ELECTRICAL CHARACTERISTICS
Model Line for this Datasheet
Text Version of Document
RH1016M

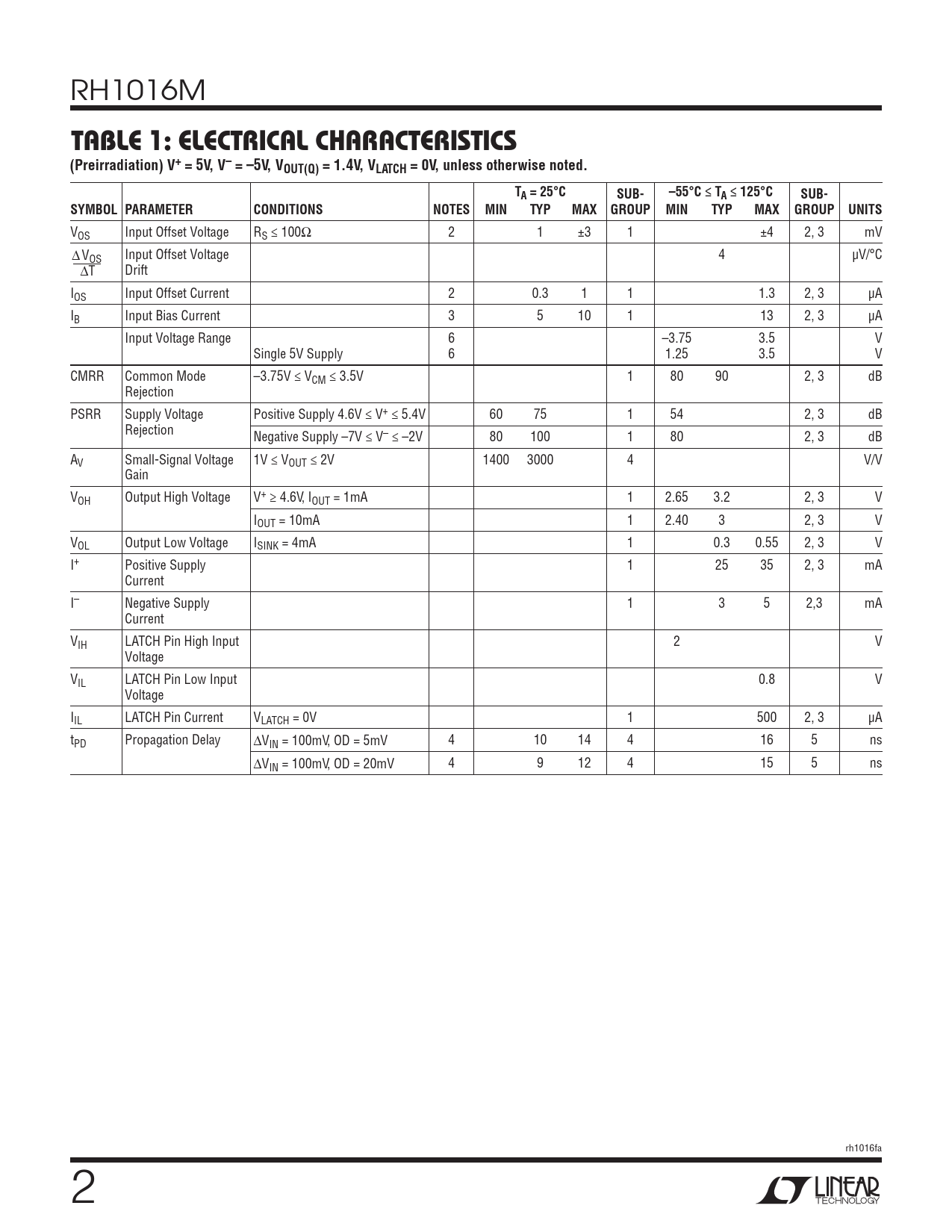

TABLE 1: ELECTRICAL CHARACTERISTICS (Preirradiation) V+ = 5V, V– = –5V, VOUT(Q) = 1.4V, VLATCH = 0V, unless otherwise noted. TA = 25°C SUB- –55°C ≤ TA ≤ 125°C SUB- SYMBOL PARAMETER CONDITIONS NOTES MIN TYP MAX GROUP MIN TYP MAX GROUP UNITS
VOS Input Offset Voltage RS ≤ 100Ω 2 1 ±3 1 ±4 2, 3 mV ΔVOS Input Offset Voltage 4 μV/°C ΔT Drift IOS Input Offset Current 2 0.3 1 1 1.3 2, 3 μA IB Input Bias Current 3 5 10 1 13 2, 3 μA Input Voltage Range 6 –3.75 3.5 V Single 5V Supply 6 1.25 3.5 V CMRR Common Mode –3.75V ≤ VCM ≤ 3.5V 1 80 90 2, 3 dB Rejection PSRR Supply Voltage Positive Supply 4.6V ≤ V+ ≤ 5.4V 60 75 1 54 2, 3 dB Rejection Negative Supply –7V ≤ V– ≤ –2V 80 100 1 80 2, 3 dB AV Small-Signal Voltage 1V ≤ VOUT ≤ 2V 1400 3000 4 V/V Gain VOH Output High Voltage V+ ≥ 4.6V, IOUT = 1mA 1 2.65 3.2 2, 3 V IOUT = 10mA 1 2.40 3 2, 3 V VOL Output Low Voltage ISINK = 4mA 1 0.3 0.55 2, 3 V I+ Positive Supply 1 25 35 2, 3 mA Current I– Negative Supply 1 3 5 2,3 mA Current VIH LATCH Pin High Input 2 V Voltage VIL LATCH Pin Low Input 0.8 V Voltage IIL LATCH Pin Current VLATCH = 0V 1 500 2, 3 μA tPD Propagation Delay ΔVIN = 100mV, OD = 5mV 4 10 14 4 16 5 ns ΔVIN = 100mV, OD = 20mV 4 9 12 4 15 5 ns rh1016fa 2
