Datasheet LTC2320-14 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Octal, 14-Bit + Sign, 1.5Msps/Ch Simultaneous Sampling ADC |
| Pages / Page | 34 / 5 — DIGITAL INPUTS AND DIGITAL OUTPUTS. The. denotes the specifications which … |
| File Format / Size | PDF / 2.2 Mb |
| Document Language | English |

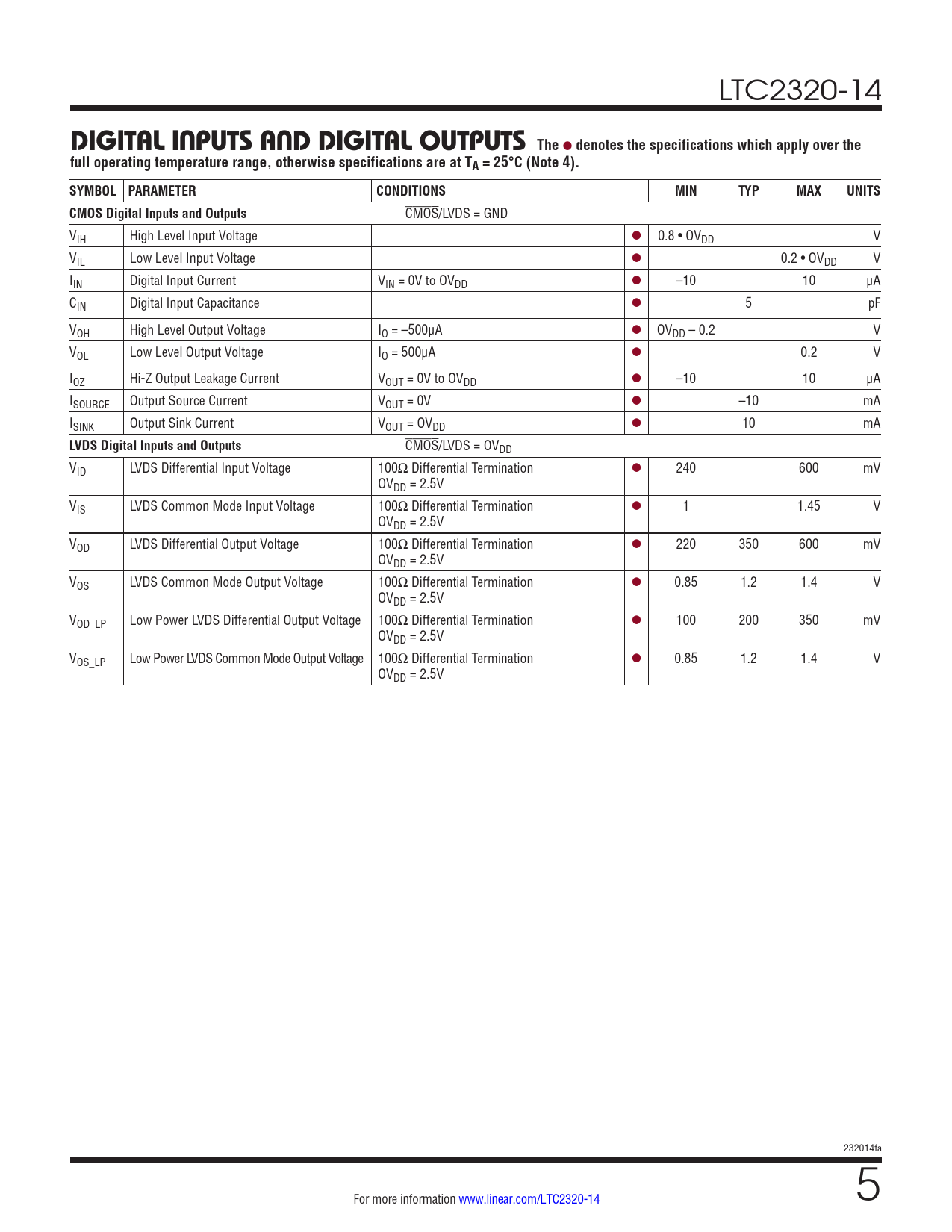

DIGITAL INPUTS AND DIGITAL OUTPUTS. The. denotes the specifications which apply over the
Model Line for this Datasheet
Text Version of Document
LTC2320-14
DIGITAL INPUTS AND DIGITAL OUTPUTS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C (Note 4). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS CMOS Digital Inputs and Outputs
CMOS/LVDS = GND VIH High Level Input Voltage l 0.8 • OVDD V VIL Low Level Input Voltage l 0.2 • OVDD V IIN Digital Input Current VIN = 0V to OVDD l –10 10 μA CIN Digital Input Capacitance l 5 pF VOH High Level Output Voltage IO = –500μA l OVDD – 0.2 V VOL Low Level Output Voltage IO = 500μA l 0.2 V IOZ Hi-Z Output Leakage Current VOUT = 0V to OVDD l –10 10 μA ISOURCE Output Source Current VOUT = 0V l –10 mA ISINK Output Sink Current VOUT = OVDD l 10 mA
LVDS Digital Inputs and Outputs
CMOS/LVDS = OVDD VID LVDS Differential Input Voltage 100Ω Differential Termination l 240 600 mV OVDD = 2.5V VIS LVDS Common Mode Input Voltage 100Ω Differential Termination l 1 1.45 V OVDD = 2.5V VOD LVDS Differential Output Voltage 100Ω Differential Termination l 220 350 600 mV OVDD = 2.5V VOS LVDS Common Mode Output Voltage 100Ω Differential Termination l 0.85 1.2 1.4 V OVDD = 2.5V VOD_LP Low Power LVDS Differential Output Voltage 100Ω Differential Termination l 100 200 350 mV OVDD = 2.5V VOS_LP Low Power LVDS Common Mode Output Voltage 100Ω Differential Termination l 0.85 1.2 1.4 V OVDD = 2.5V 232014fa For more information www.linear.com/LTC2320-14 5 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Converter Characteristics Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram Applications Information Package Description Revision History Typical Application Related Parts
