Datasheet A2003, A2004, A2023, A2024 (Allegro) - 10
| Manufacturer | Allegro |
| Description | High Voltage High Current Darlington Arrays (Discontinued Product) |
| Pages / Page | 11 / 10 — 2003 THRU 2024. HIGH-VOLTAGE,. HIGH-CURRENT. DARLINGTON ARRAYS. PACKAGE … |
| File Format / Size | PDF / 324 Kb |
| Document Language | English |
2003 THRU 2024. HIGH-VOLTAGE,. HIGH-CURRENT. DARLINGTON ARRAYS. PACKAGE DESIGNATOR “L”
Text Version of Document
2003 THRU 2024 HIGH-VOLTAGE, HIGH-CURRENT DARLINGTON ARRAYS PACKAGE DESIGNATOR “L”

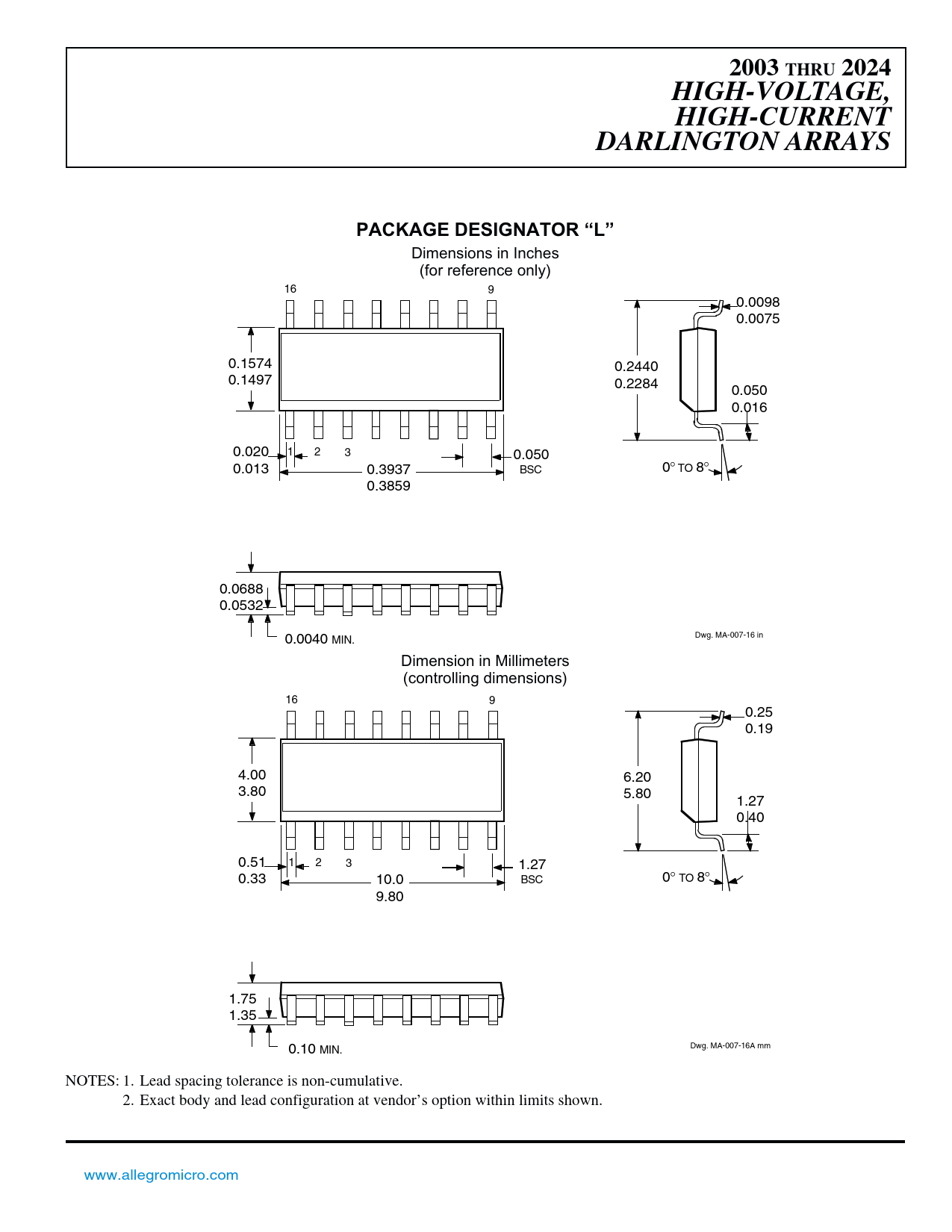

Dimensions in Inches (for reference only) 16 9 0.0098 0.0075 0.1574 0.2440 0.1497 0.2284 0.050 0.016 0.020 1 2 3 0.050 0.013 0.3937 BSC 0° TO 8° 0.3859 0.0688 0.0532 Dwg. MA-007-16 in 0.0040 MIN. Dimension in Millimeters (controlling dimensions) 16 9 0.25 0.19 4.00 6.20 3.80 5.80 1.27 0.40 0.51 1 2 3 1.27 0.33 10.0 BSC 0° TO 8° 9.80 1.75 1.35 Dwg. MA-007-16A mm 0.10 MIN. NOTES: 1. Lead spacing tolerance is non-cumulative. 2. Exact body and lead configuration at vendor’s option within limits shown. www.allegromicro.com
Dimensions in Inches (for reference only) 16 9 0.0098 0.0075 0.1574 0.2440 0.1497 0.2284 0.050 0.016 0.020 1 2 3 0.050 0.013 0.3937 BSC 0° TO 8° 0.3859 0.0688 0.0532 Dwg. MA-007-16 in 0.0040 MIN. Dimension in Millimeters (controlling dimensions) 16 9 0.25 0.19 4.00 6.20 3.80 5.80 1.27 0.40 0.51 1 2 3 1.27 0.33 10.0 BSC 0° TO 8° 9.80 1.75 1.35 Dwg. MA-007-16A mm 0.10 MIN. NOTES: 1. Lead spacing tolerance is non-cumulative. 2. Exact body and lead configuration at vendor’s option within limits shown. www.allegromicro.com
