L78L

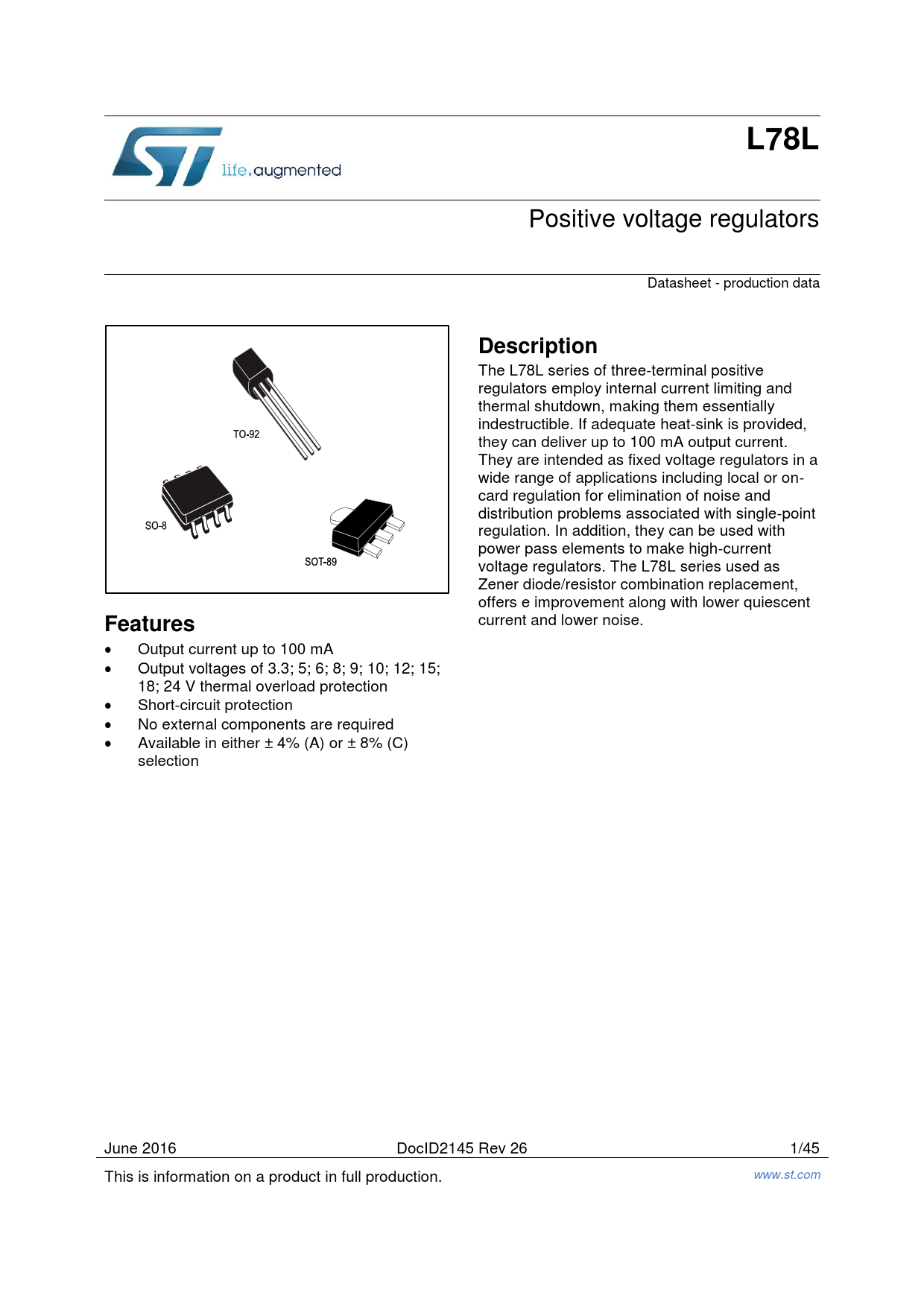

Positive voltage regulators Datasheet - production data
Description
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or on- card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent
Features
current and lower noise. Output current up to 100 mA Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V thermal overload protection Short-circuit protection No external components are required Available in either ± 4% (A) or ± 8% (C) selection June 2016 DocID2145 Rev 26 1/45 This is information on a product in full production. www.st.com
