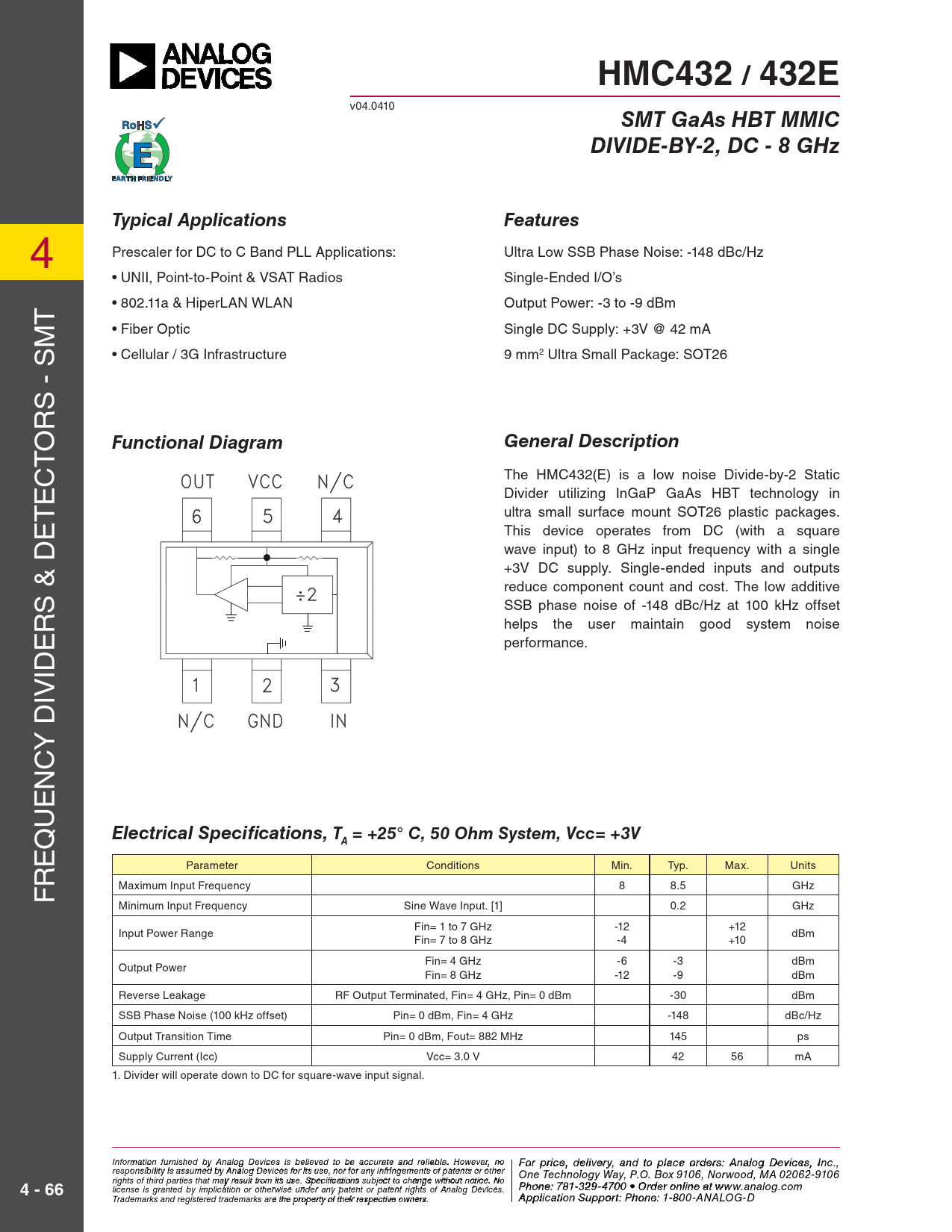

HMC432 / 432E
v04.0410
SMT GaAs HBT MMIC DIVIDE-BY-2, DC - 8 GHz Typical Applications Features
4 Prescaler for DC to C Band PLL Applications: Ultra Low SSB Phase Noise: -148 dBc/Hz • UNII, Point-to-Point & VSAT Radios Single-Ended I/O’s • 802.11a & HiperLAN WLAN Output Power: -3 to -9 dBm T • Fiber Optic Single DC Supply: +3V @ 42 mA • Cellular / 3G Infrastructure 9 mm2 Ultra Small Package: SOT26 S - SM R O
Functional Diagram General Description
T C The HMC432(E) is a low noise Divide-by-2 Static E Divider utilizing InGaP GaAs HBT technology in T ultra small surface mount SOT26 plastic packages. E This device operates from DC (with a square wave input) to 8 GHz input frequency with a single +3V DC supply. Single-ended inputs and outputs & D reduce component count and cost. The low additive S SSB phase noise of -148 dBc/Hz at 100 kHz offset R helps the user maintain good system noise E performance. ID IV Y D NC E U Q
Electrical Specifi cations, T = +25° C, 50 Ohm System, Vcc= +3V A
E Parameter Conditions Min. Typ. Max. Units R F Maximum Input Frequency 8 8.5 GHz Minimum Input Frequency Sine Wave Input. [1] 0.2 GHz Fin= 1 to 7 GHz -12 +12 Input Power Range dBm Fin= 7 to 8 GHz -4 +10 Fin= 4 GHz -6 -3 dBm Output Power Fin= 8 GHz -12 -9 dBm Reverse Leakage RF Output Terminated, Fin= 4 GHz, Pin= 0 dBm -30 dBm SSB Phase Noise (100 kHz offset) Pin= 0 dBm, Fin= 4 GHz -148 dBc/Hz Output Transition Time Pin= 0 dBm, Fout= 882 MHz 145 ps Supply Current (Icc) Vcc= 3.0 V 42 56 mA 1. Divider will operate down to DC for square-wave input signal. Info F rmoatr pr ion f iurcne, de ished b ly iv A e n r al y o a g D n evd to p ices is bla eli c eve o ed t rde o be ras: H ccuratite tiatne M d reli iacr ble ow . Ho av wev e C er, n o o rpo Fora r t p iro ic n e ,, 2 d 0 eli A ve lrpha R y, and toad, C o place hoel rd m er s s fo : Ard, MA 01 nalog Devic 8 e 2 s 4 , Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rde hone r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .ehit r o t nilte in .c e ao t m
4 - 66
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 o plica r app tion Su s p @ po h rt itt : P ite ho .c ne o : 1m -800-ANALOG-D
