Datasheet HMC363 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | GaAs HBT MMIC DIVIDE-BY-8, DC - 12 GHz |
| Pages / Page | 6 / 1 — HMC363. GaAs HBT MMIC. DIVIDE-BY-8, DC - 12 GHz. Typical Applications. … |
| File Format / Size | PDF / 313 Kb |
| Document Language | English |

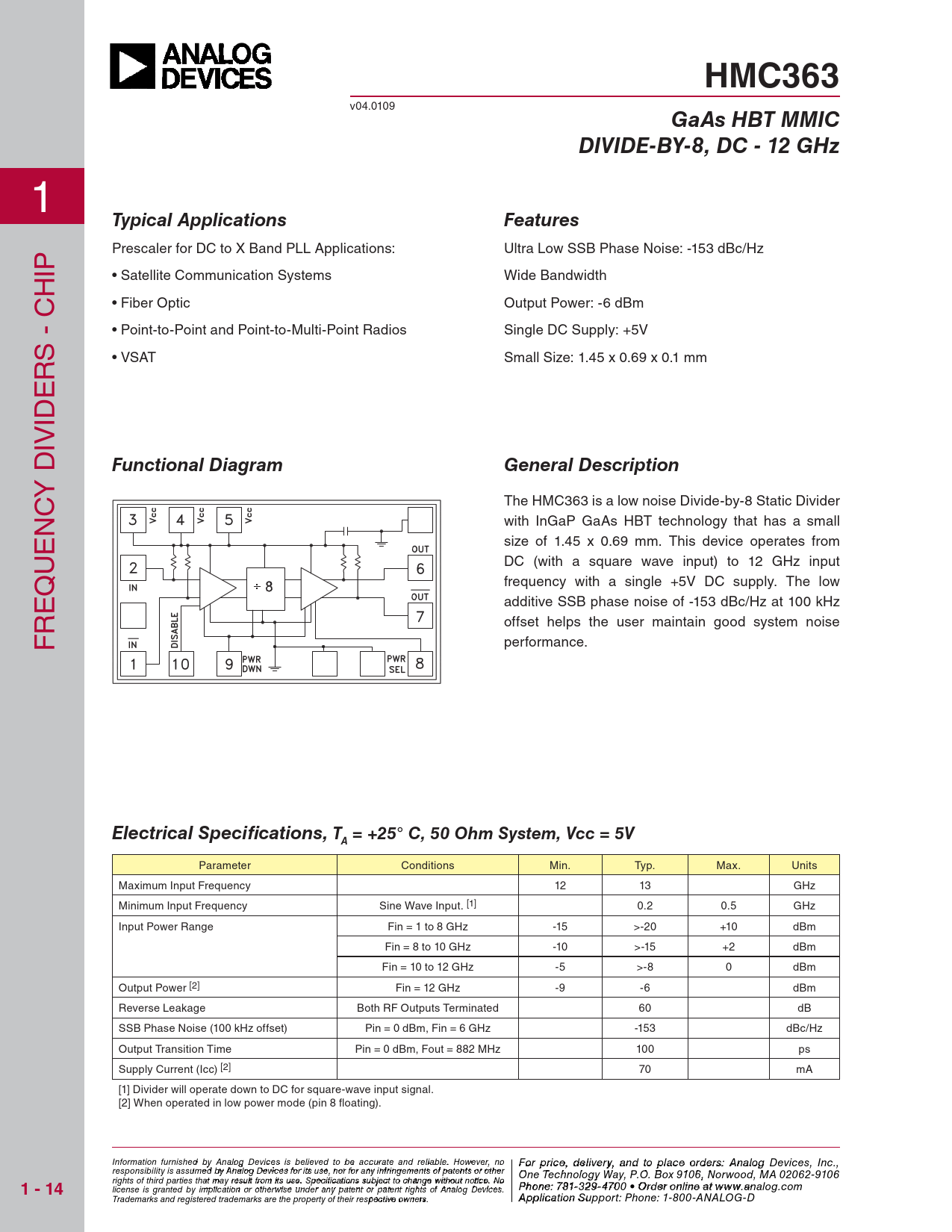

HMC363. GaAs HBT MMIC. DIVIDE-BY-8, DC - 12 GHz. Typical Applications. Features. Functional Diagram. General Description
Model Line for this Datasheet
Text Version of Document
HMC363
v04.0109
GaAs HBT MMIC DIVIDE-BY-8, DC - 12 GHz
1
Typical Applications Features
Prescaler for DC to X Band PLL Applications: Ultra Low SSB Phase Noise: -153 dBc/Hz IP • Satellite Communication Systems Wide Bandwidth H • Fiber Optic Output Power: -6 dBm • Point-to-Point and Point-to-Multi-Point Radios Single DC Supply: +5V S - C • VSAT Small Size: 1.45 x 0.69 x 0.1 mm R E ID IV
Functional Diagram General Description
Y D The HMC363 is a low noise Divide-by-8 Static Divider NC with InGaP GaAs HBT technology that has a small E size of 1.45 x 0.69 mm. This device operates from U DC (with a square wave input) to 12 GHz input Q frequency with a single +5V DC supply. The low E additive SSB phase noise of -153 dBc/Hz at 100 kHz R offset helps the user maintain good system noise F performance.
Electrical Specifi cations, T = +25° C, 50 Ohm System, Vcc = 5V A
Parameter Conditions Min. Typ. Max. Units Maximum Input Frequency 12 13 GHz Minimum Input Frequency Sine Wave Input. [1] 0.2 0.5 GHz Input Power Range Fin = 1 to 8 GHz -15 >-20 +10 dBm Fin = 8 to 10 GHz -10 >-15 +2 dBm Fin = 10 to 12 GHz -5 >-8 0 dBm Output Power [2] Fin = 12 GHz -9 -6 dBm Reverse Leakage Both RF Outputs Terminated 60 dB SSB Phase Noise (100 kHz offset) Pin = 0 dBm, Fin = 6 GHz -153 dBc/Hz Output Transition Time Pin = 0 dBm, Fout = 882 MHz 100 ps Supply Current (Icc) [2] 70 mA [1] Divider will operate down to DC for square-wave input signal. [2] When operated in low power mode (pin 8 fl oating). Information furnish F ed obr pri y Anal ce, de og Device li s vie s r beyli, a eve nd to pla d to be accura ce o te and rder reliabl s e , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
1 - 14
20 Alpha Road, Chelmsford, MA 01824 Phone: 978 Phon - e 25 : 7 0 81--3 32 3 9 4 - 3 F 70 ax 0 • O : 978 rder on -li25 n 0 e a - t 33 ww 73 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. w.analog.com Order On Trademarks and registered trademarks are the property of their respective owners. -line at www.h A it p tpite.co licatio m n Support: Phone: 1-800-ANALOG-D
