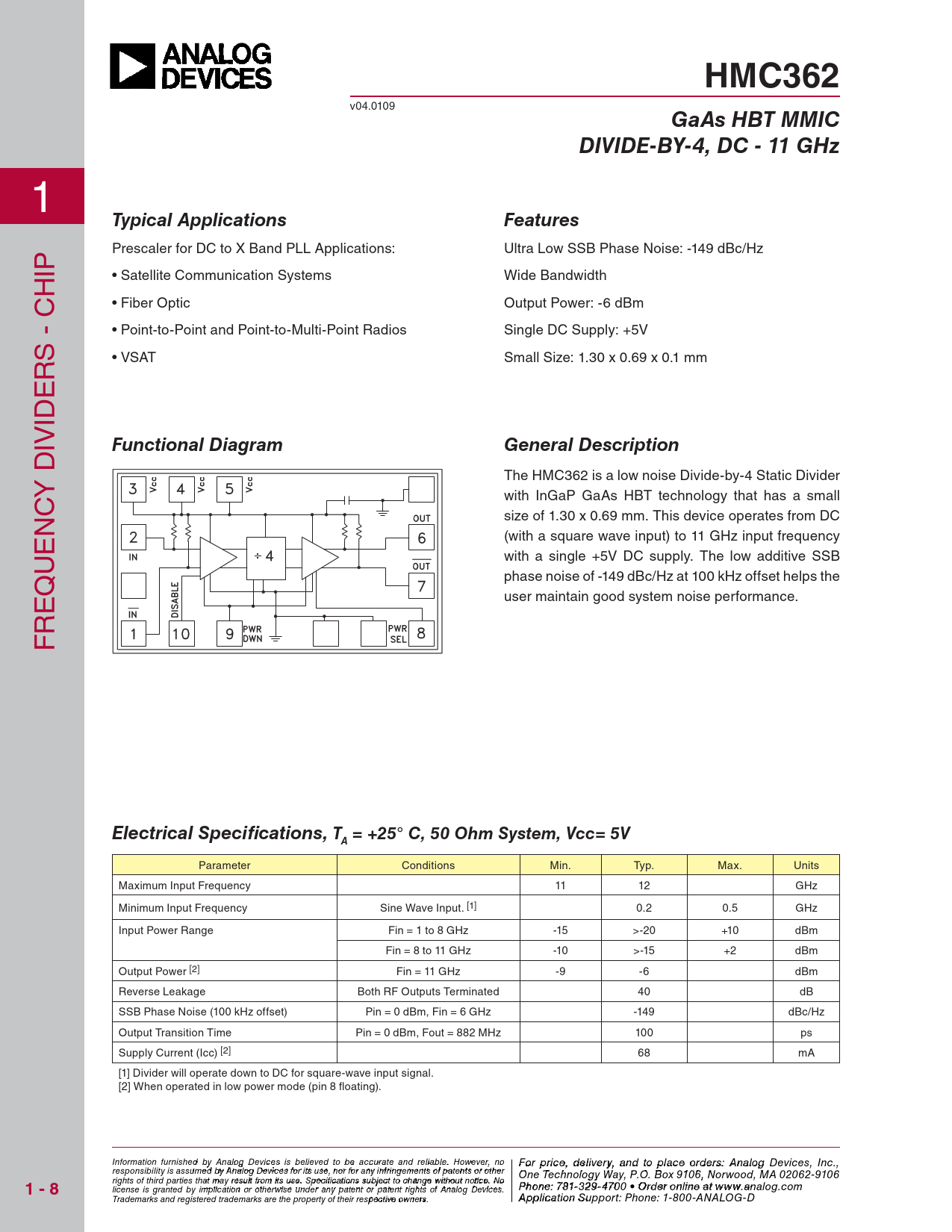

HMC362
v04.0109
GaAs HBT MMIC DIVIDE-BY-4, DC - 11 GHz
1
Typical Applications Features
Prescaler for DC to X Band PLL Applications: Ultra Low SSB Phase Noise: -149 dBc/Hz IP • Satellite Communication Systems Wide Bandwidth H • Fiber Optic Output Power: -6 dBm • Point-to-Point and Point-to-Multi-Point Radios Single DC Supply: +5V S - C • VSAT Small Size: 1.30 x 0.69 x 0.1 mm R E ID IV
Functional Diagram General Description
The HMC362 is a low noise Divide-by-4 Static Divider Y D with InGaP GaAs HBT technology that has a small size of 1.30 x 0.69 mm. This device operates from DC NC E (with a square wave input) to 11 GHz input frequency U with a single +5V DC supply. The low additive SSB Q phase noise of -149 dBc/Hz at 100 kHz offset helps the E user maintain good system noise performance. R F
Electrical Specifi cations, T = +25° C, 50 Ohm System, Vcc= 5V A
Parameter Conditions Min. Typ. Max. Units Maximum Input Frequency 11 12 GHz Minimum Input Frequency Sine Wave Input. [1] 0.2 0.5 GHz Input Power Range Fin = 1 to 8 GHz -15 >-20 +10 dBm Fin = 8 to 11 GHz -10 >-15 +2 dBm Output Power [2] Fin = 11 GHz -9 -6 dBm Reverse Leakage Both RF Outputs Terminated 40 dB SSB Phase Noise (100 kHz offset) Pin = 0 dBm, Fin = 6 GHz -149 dBc/Hz Output Transition Time Pin = 0 dBm, Fout = 882 MHz 100 ps Supply Current (Icc) [2] 68 mA [1] Divider will operate down to DC for square-wave input signal. [2] When operated in low power mode (pin 8 fl oating). Information furnish F ed obr pri y Anal ce, de og Device li s vie s r beyli, a eve nd to pla d to be accura ce o te and rder reliabl s e , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
1 - 8
20 Alpha Road, Chelmsford, MA 01824 Phone: 978 Phon - e 25 : 7 0 81--3 32 3 9 4 - 3 F 70 ax 0 • O : 978 rder on -li25 n 0 e a - t 33 ww 73 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. w.analog.com Order On Trademarks and registered trademarks are the property of their respective owners. -line at www.h A it p tpite.co licatio m n Support: Phone: 1-800-ANALOG-D
