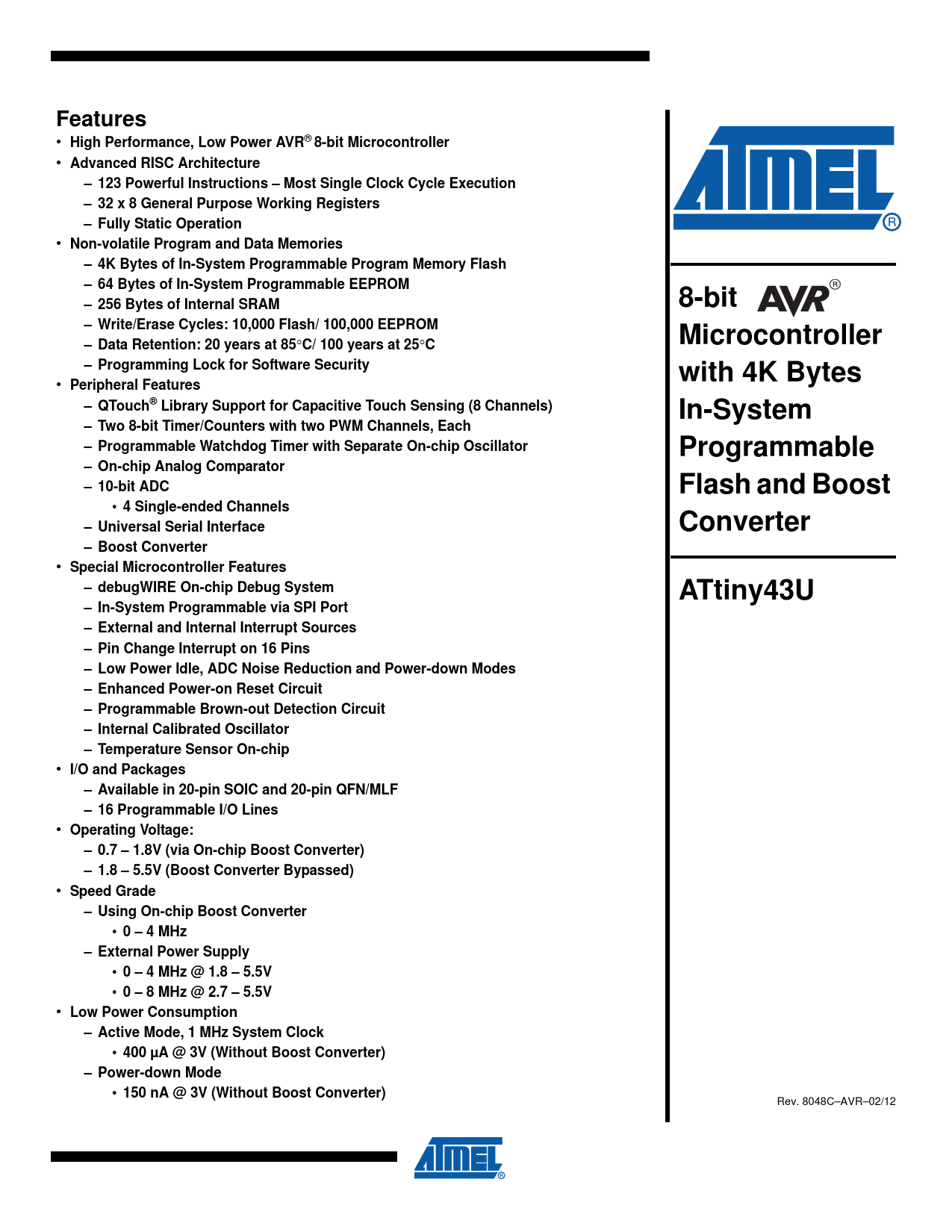

Features. High Performance, Low Power AVR. 8-bit Microcontroller. Advanced RISC Architecture
Model Line for this Datasheet
Text Version of Document
Features
•
High Performance, Low Power AVR
®
8-bit Microcontroller
•
Advanced RISC Architecture – 123 Powerful Instructions – Most Single Clock Cycle Execution – 32 x 8 General Purpose Working Registers – Fully Static Operation
•
Non-volatile Program and Data Memories – 4K Bytes of In-System Programmable Program Memory Flash – 64 Bytes of In-System Programmable EEPROM – 256 Bytes of Internal SRAM 8-bit – Write/Erase Cycles: 10,000 Flash/ 100,000 EEPROM Microcontroller – Data Retention: 20 years at 85
°
C/ 100 years at 25
°
C – Programming Lock for Software Security with 4K Bytes
•
Peripheral Features – QTouch® Library Support for Capacitive Touch Sensing (8 Channels) In-System – Two 8-bit Timer/Counters with two PWM Channels, Each – Programmable Watchdog Timer with Separate On-chip Oscillator Programmable – On-chip Analog Comparator – 10-bit ADC Flash and Boost • 4 Single-ended Channels – Universal Serial Interface Converter – Boost Converter
•
Special Microcontroller Features – debugWIRE On-chip Debug System ATtiny43U – In-System Programmable via SPI Port – External and Internal Interrupt Sources – Pin Change Interrupt on 16 Pins – Low Power Idle, ADC Noise Reduction and Power-down Modes – Enhanced Power-on Reset Circuit – Programmable Brown-out Detection Circuit – Internal Calibrated Oscillator – Temperature Sensor On-chip
•
I/O and Packages – Available in 20-pin SOIC and 20-pin QFN/MLF – 16 Programmable I/O Lines
•
Operating Voltage: – 0.7 – 1.8V (via On-chip Boost Converter) – 1.8 – 5.5V (Boost Converter Bypassed)
•
Speed Grade – Using On-chip Boost Converter • 0 – 4 MHz – External Power Supply • 0 – 4 MHz @ 1.8 – 5.5V • 0 – 8 MHz @ 2.7 – 5.5V
•
Low Power Consumption – Active Mode, 1 MHz System Clock • 400 µA @ 3V (Without Boost Converter) – Power-down Mode • 150 nA @ 3V (Without Boost Converter)
