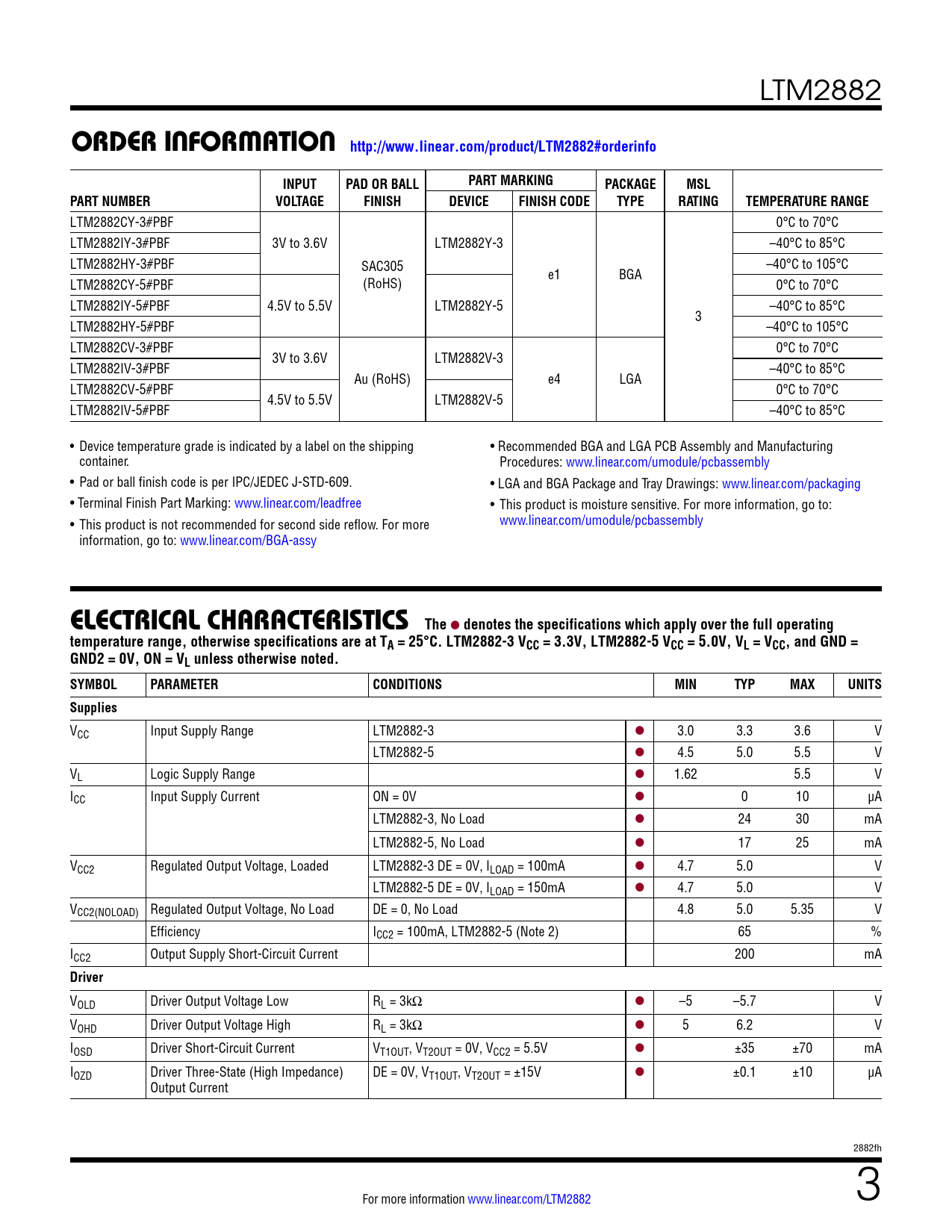

ORDER INFORMATION http://www.linear.com/product/LTM2882#orderinfo. INPUT. PAD OR BALL. PART MARKING. PACKAGE. MSL. PART NUMBER

ORDER INFORMATION http://www.linear.com/product/LTM2882#orderinfo INPUT PAD OR BALL PART MARKING PACKAGE MSL PART NUMBER

Model Line for this Datasheet

Text Version of Document

LTM2882
ORDER INFORMATION http://www.linear.com/product/LTM2882#orderinfo INPUT PAD OR BALL PART MARKING PACKAGE MSL PART NUMBER VOLTAGE FINISH DEVICE FINISH CODE TYPE RATING TEMPERATURE RANGE
LTM2882CY-3#PBF 0°C to 70°C LTM2882IY-3#PBF 3V to 3.6V LTM2882Y-3 –40°C to 85°C LTM2882HY-3#PBF SAC305 –40°C to 105°C LTM2882CY-5#PBF (RoHS) e1 BGA 0°C to 70°C LTM2882IY-5#PBF 4.5V to 5.5V LTM2882Y-5 –40°C to 85°C 3 LTM2882HY-5#PBF –40°C to 105°C LTM2882CV-3#PBF 0°C to 70°C 3V to 3.6V LTM2882V-3 LTM2882IV-3#PBF –40°C to 85°C Au (RoHS) e4 LGA LTM2882CV-5#PBF 0°C to 70°C 4.5V to 5.5V LTM2882V-5 LTM2882IV-5#PBF –40°C to 85°C • Device temperature grade is indicated by a label on the shipping • Recommended BGA and LGA PCB Assembly and Manufacturing container. Procedures: www.linear.com/umodule/pcbassembly • Pad or ball finish code is per IPC/JEDEC J-STD-609. • LGA and BGA Package and Tray Drawings: www.linear.com/packaging • Terminal Finish Part Marking: www.linear.com/leadfree • This product is moisture sensitive. For more information, go to: • This product is not recommended for second side reflow. For more www.linear.com/umodule/pcbassembly information, go to: www.linear.com/BGA-assy
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. LTM2882-3 VCC = 3.3V, LTM2882-5 VCC = 5.0V, VL = VCC, and GND = GND2 = 0V, ON = VL unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Supplies
VCC Input Supply Range LTM2882-3 l 3.0 3.3 3.6 V LTM2882-5 l 4.5 5.0 5.5 V VL Logic Supply Range l 1.62 5.5 V ICC Input Supply Current ON = 0V l 0 10 µA LTM2882-3, No Load l 24 30 mA LTM2882-5, No Load l 17 25 mA VCC2 Regulated Output Voltage, Loaded LTM2882-3 DE = 0V, ILOAD = 100mA l 4.7 5.0 V LTM2882-5 DE = 0V, ILOAD = 150mA l 4.7 5.0 V VCC2(NOLOAD) Regulated Output Voltage, No Load DE = 0, No Load 4.8 5.0 5.35 V Efficiency ICC2 = 100mA, LTM2882-5 (Note 2) 65 % ICC2 Output Supply Short-Circuit Current 200 mA
