Datasheet LT1027LS8 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Precision, Low Noise, High Stability Hermetic Voltage Reference |
| Pages / Page | 14 / 5 — Typical perForMance characTerisTics. Output Noise Voltage Density. Output … |
| File Format / Size | PDF / 3.1 Mb |
| Document Language | English |

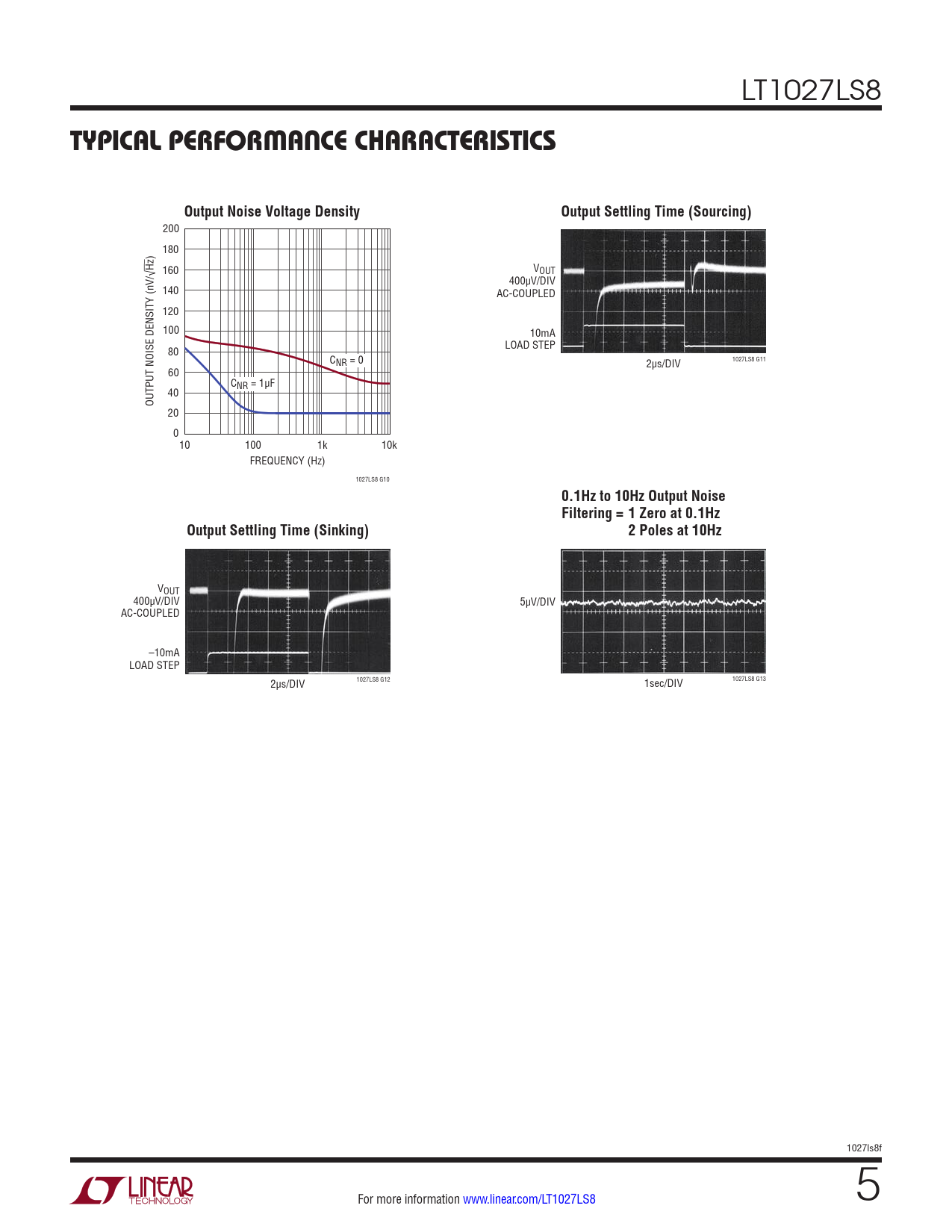

Typical perForMance characTerisTics. Output Noise Voltage Density. Output Settling Time (Sourcing)
Model Line for this Datasheet
Text Version of Document
LT1027LS8
Typical perForMance characTerisTics Output Noise Voltage Density Output Settling Time (Sourcing)
200 180 ) Hz 160 VOUT 400µV/DIV 140 AC-COUPLED 120 100 10mA 80 LOAD STEP CNR = 0 2µs/DIV 1027LS8 G11 60 C 40 NR = 1µF OUTPUT NOISE DENSITY (nV/√ 20 010 100 1k 10k FREQUENCY (Hz) 1027LS8 G10
0.1Hz to 10Hz Output Noise Filtering = 1 Zero at 0.1Hz Output Settling Time (Sinking) 2 Poles at 10Hz
VOUT 400µV/DIV 5µV/DIV AC-COUPLED –10mA LOAD STEP 2µs/DIV 1027LS8 G12 1sec/DIV 1027LS8 G13 1027ls8f For more information www.linear.com/LT1027LS8 5 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
