absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion. orDer inForMaTion http://www.linear.com/product/LT6654#orderinfo
Model Line for this Datasheet
- LT6654AHLS8-2.048#PBF LT6654AHLS8-2.5#PBF LT6654AHLS8-4.096#PBF LT6654AHLS8-5#PBF LT6654AHS6-1.25#PBF LT6654AHS6-1.25#TRMPBF LT6654AHS6-1.25#TRPBF LT6654AHS6-2.048#PBF LT6654AHS6-2.048#TRMPBF LT6654AHS6-2.048#TRPBF LT6654AHS6-2.5#PBF LT6654AHS6-2.5#TRMPBF LT6654AHS6-2.5#TRPBF LT6654AHS6-3#PBF LT6654AHS6-3#TRMPBF LT6654AHS6-3#TRPBF LT6654AHS6-3.3#PBF LT6654AHS6-3.3#TRMPBF LT6654AHS6-3.3#TRPBF LT6654AHS6-4.096#PBF LT6654AHS6-4.096#TRMPBF LT6654AHS6-4.096#TRPBF LT6654AHS6-5#PBF LT6654AHS6-5#TRMPBF LT6654AHS6-5#TRPBF LT6654AIS6-1.25#PBF LT6654AIS6-1.25#TRMPBF LT6654AIS6-1.25#TRPBF LT6654AIS6-2.048#PBF LT6654AIS6-2.048#TRMPBF LT6654AIS6-2.048#TRPBF LT6654AIS6-2.5#PBF LT6654AIS6-2.5#TRMPBF LT6654AIS6-2.5#TRPBF LT6654AIS6-3#PBF LT6654AIS6-3#TRMPBF LT6654AIS6-3#TRPBF LT6654AIS6-3.3#PBF LT6654AIS6-3.3#TRMPBF LT6654AIS6-3.3#TRPBF LT6654AIS6-4.096#PBF LT6654AIS6-4.096#TRMPBF LT6654AIS6-4.096#TRPBF LT6654AIS6-5#PBF LT6654AIS6-5#TRMPBF LT6654AIS6-5#TRPBF LT6654AMPS6-1.25#PBF LT6654AMPS6-1.25#TRMPBF LT6654AMPS6-1.25#TRPBF LT6654AMPS6-2.048#PBF LT6654AMPS6-2.048#TRMPBF LT6654AMPS6-2.048#TRPBF LT6654AMPS6-2.5#PBF LT6654AMPS6-2.5#TRM LT6654AMPS6-2.5#TRMPBF LT6654AMPS6-2.5#TRPBF LT6654AMPS6-3#PBF LT6654AMPS6-3#TR LT6654AMPS6-3#TRM LT6654AMPS6-3#TRMPBF LT6654AMPS6-3#TRPBF LT6654AMPS6-3.3#PBF LT6654AMPS6-3.3#TRM LT6654AMPS6-3.3#TRMPBF LT6654AMPS6-3.3#TRPBF LT6654AMPS6-4.096#PBF LT6654AMPS6-4.096#TRMPBF LT6654AMPS6-4.096#TRPBF LT6654AMPS6-5#PBF LT6654AMPS6-5#TRMPBF LT6654AMPS6-5#TRPBF LT6654BHLS8-2.048#PBF LT6654BHLS8-2.5#PBF LT6654BHLS8-4.096#PBF LT6654BHLS8-5#PBF LT6654BHS6-1.25#PBF LT6654BHS6-1.25#TRMPBF LT6654BHS6-1.25#TRPBF LT6654BHS6-2.048#PBF LT6654BHS6-2.048#TRMPBF LT6654BHS6-2.048#TRPBF LT6654BHS6-2.5#PBF LT6654BHS6-2.5#TRMPBF LT6654BHS6-2.5#TRPBF LT6654BHS6-3#PBF LT6654BHS6-3#TRMPBF LT6654BHS6-3#TRPBF LT6654BHS6-3.3#PBF LT6654BHS6-3.3#TRMPBF LT6654BHS6-3.3#TRPBF LT6654BHS6-4.096#PBF LT6654BHS6-4.096#TRMPBF LT6654BHS6-4.096#TRPBF LT6654BHS6-5#PBF LT6654BHS6-5#TRMPBF LT6654BHS6-5#TRPBF LT6654BIS6-1.25#PBF LT6654BIS6-1.25#TRMPBF LT6654BIS6-1.25#TRPBF LT6654BIS6-2.048#PBF LT6654BIS6-2.048#TRMPBF LT6654BIS6-2.048#TRPBF LT6654BIS6-2.5#PBF LT6654BIS6-2.5#TRMPBF LT6654BIS6-2.5#TRPBF LT6654BIS6-3#PBF LT6654BIS6-3#TRMPBF LT6654BIS6-3#TRPBF LT6654BIS6-3.3#PBF LT6654BIS6-3.3#TRMPBF LT6654BIS6-3.3#TRPBF LT6654BIS6-4.096#PBF LT6654BIS6-4.096#TRMPBF LT6654BIS6-4.096#TRPBF LT6654BIS6-5#PBF LT6654BIS6-5#TRMPBF LT6654BIS6-5#TRPBF LT6654BMPS6-1.25#PBF LT6654BMPS6-1.25#TRMPBF LT6654BMPS6-1.25#TRPBF LT6654BMPS6-2.048#PBF LT6654BMPS6-2.048#TRMPBF LT6654BMPS6-2.048#TRPBF LT6654BMPS6-2.5#PBF LT6654BMPS6-2.5#TRMPBF LT6654BMPS6-2.5#TRPBF LT6654BMPS6-3#PBF LT6654BMPS6-3#TRMPBF LT6654BMPS6-3#TRPBF LT6654BMPS6-3.3#PBF LT6654BMPS6-3.3#TRMPBF LT6654BMPS6-3.3#TRPBF LT6654BMPS6-4.096#PBF LT6654BMPS6-4.096#TRMPBF LT6654BMPS6-4.096#TRPBF LT6654BMPS6-5#PBF LT6654BMPS6-5#TRMPBF LT6654BMPS6-5#TRPBF
Text Version of Document
LT6654

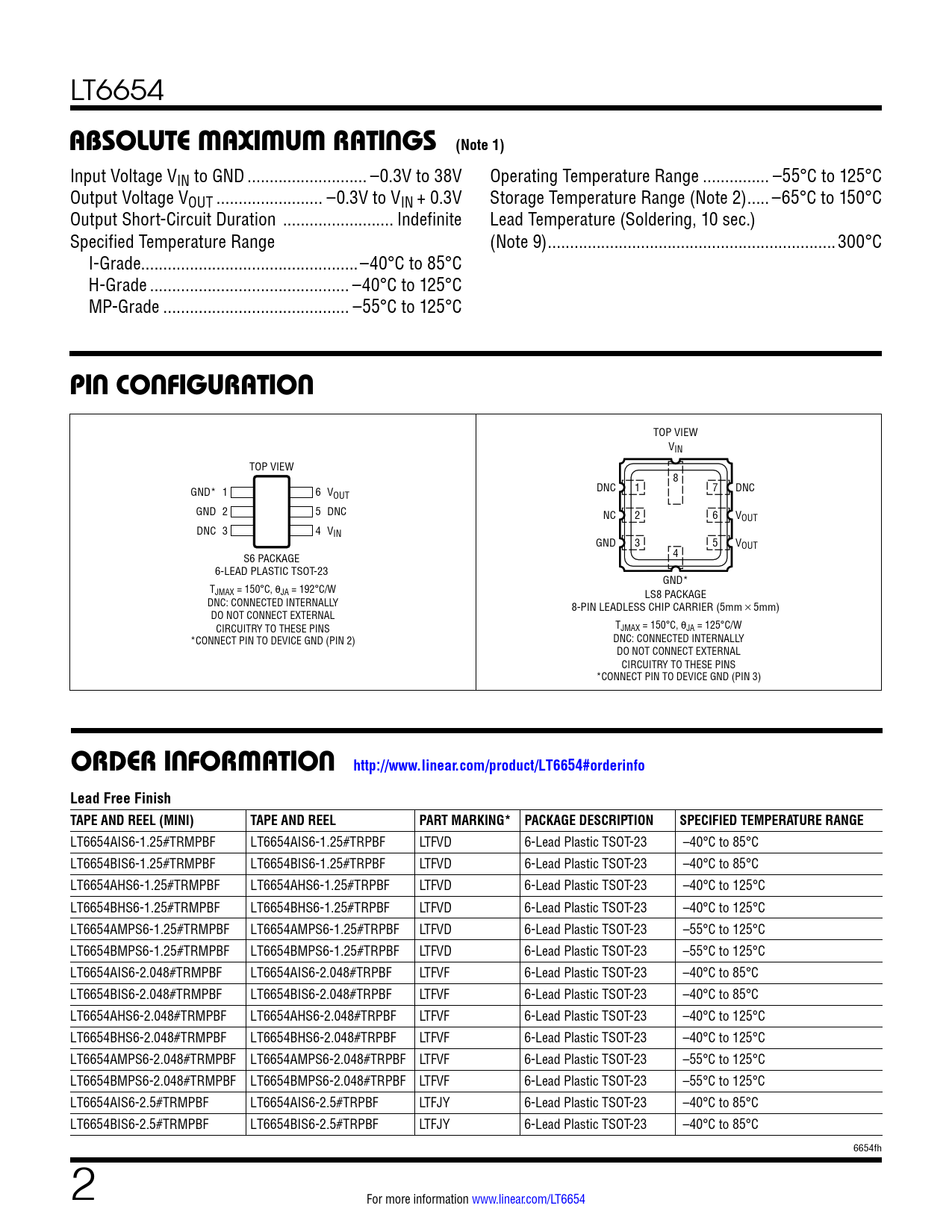

absoluTe MaxiMuM raTings (Note 1)
Input Voltage VIN to GND ... –0.3V to 38V Operating Temperature Range ... –55°C to 125°C Output Voltage VOUT .. –0.3V to VIN + 0.3V Storage Temperature Range (Note 2) ... –65°C to 150°C Output Short-Circuit Duration ... Indefinite Lead Temperature (Soldering, 10 sec.) Specified Temperature Range (Note 9) ...300°C I-Grade...–40°C to 85°C H-Grade ... –40°C to 125°C MP-Grade .. –55°C to 125°C
pin conFiguraTion
TOP VIEW VIN TOP VIEW 8 GND* 1 6 V DNC 1 7 DNC OUT GND 2 5 DNC NC 2 6 VOUT DNC 3 4 VIN GND 3 5 VOUT S6 PACKAGE 4 6-LEAD PLASTIC TSOT-23 GND* TJMAX = 150°C, θJA = 192°C/W LS8 PACKAGE DNC: CONNECTED INTERNALLY 8-PIN LEADLESS CHIP CARRIER (5mm × 5mm) DO NOT CONNECT EXTERNAL CIRCUITRY TO THESE PINS TJMAX = 150°C, θJA = 125°C/W *CONNECT PIN TO DEVICE GND (PIN 2) DNC: CONNECTED INTERNALLY DO NOT CONNECT EXTERNAL CIRCUITRY TO THESE PINS *CONNECT PIN TO DEVICE GND (PIN 3)
orDer inForMaTion http://www.linear.com/product/LT6654#orderinfo Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6654AIS6-1.25#TRMPBF LT6654AIS6-1.25#TRPBF LTFVD 6-Lead Plastic TSOT-23 –40°C to 85°C LT6654BIS6-1.25#TRMPBF LT6654BIS6-1.25#TRPBF LTFVD 6-Lead Plastic TSOT-23 –40°C to 85°C LT6654AHS6-1.25#TRMPBF LT6654AHS6-1.25#TRPBF LTFVD 6-Lead Plastic TSOT-23 –40°C to 125°C LT6654BHS6-1.25#TRMPBF LT6654BHS6-1.25#TRPBF LTFVD 6-Lead Plastic TSOT-23 –40°C to 125°C LT6654AMPS6-1.25#TRMPBF LT6654AMPS6-1.25#TRPBF LTFVD 6-Lead Plastic TSOT-23 –55°C to 125°C LT6654BMPS6-1.25#TRMPBF LT6654BMPS6-1.25#TRPBF LTFVD 6-Lead Plastic TSOT-23 –55°C to 125°C LT6654AIS6-2.048#TRMPBF LT6654AIS6-2.048#TRPBF LTFVF 6-Lead Plastic TSOT-23 –40°C to 85°C LT6654BIS6-2.048#TRMPBF LT6654BIS6-2.048#TRPBF LTFVF 6-Lead Plastic TSOT-23 –40°C to 85°C LT6654AHS6-2.048#TRMPBF LT6654AHS6-2.048#TRPBF LTFVF 6-Lead Plastic TSOT-23 –40°C to 125°C LT6654BHS6-2.048#TRMPBF LT6654BHS6-2.048#TRPBF LTFVF 6-Lead Plastic TSOT-23 –40°C to 125°C LT6654AMPS6-2.048#TRMPBF LT6654AMPS6-2.048#TRPBF LTFVF 6-Lead Plastic TSOT-23 –55°C to 125°C LT6654BMPS6-2.048#TRMPBF LT6654BMPS6-2.048#TRPBF LTFVF 6-Lead Plastic TSOT-23 –55°C to 125°C LT6654AIS6-2.5#TRMPBF LT6654AIS6-2.5#TRPBF LTFJY 6-Lead Plastic TSOT-23 –40°C to 85°C LT6654BIS6-2.5#TRMPBF LT6654BIS6-2.5#TRPBF LTFJY 6-Lead Plastic TSOT-23 –40°C to 85°C 6654fh 2 For more information www.linear.com/LT6654 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Available Options Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagrams Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
