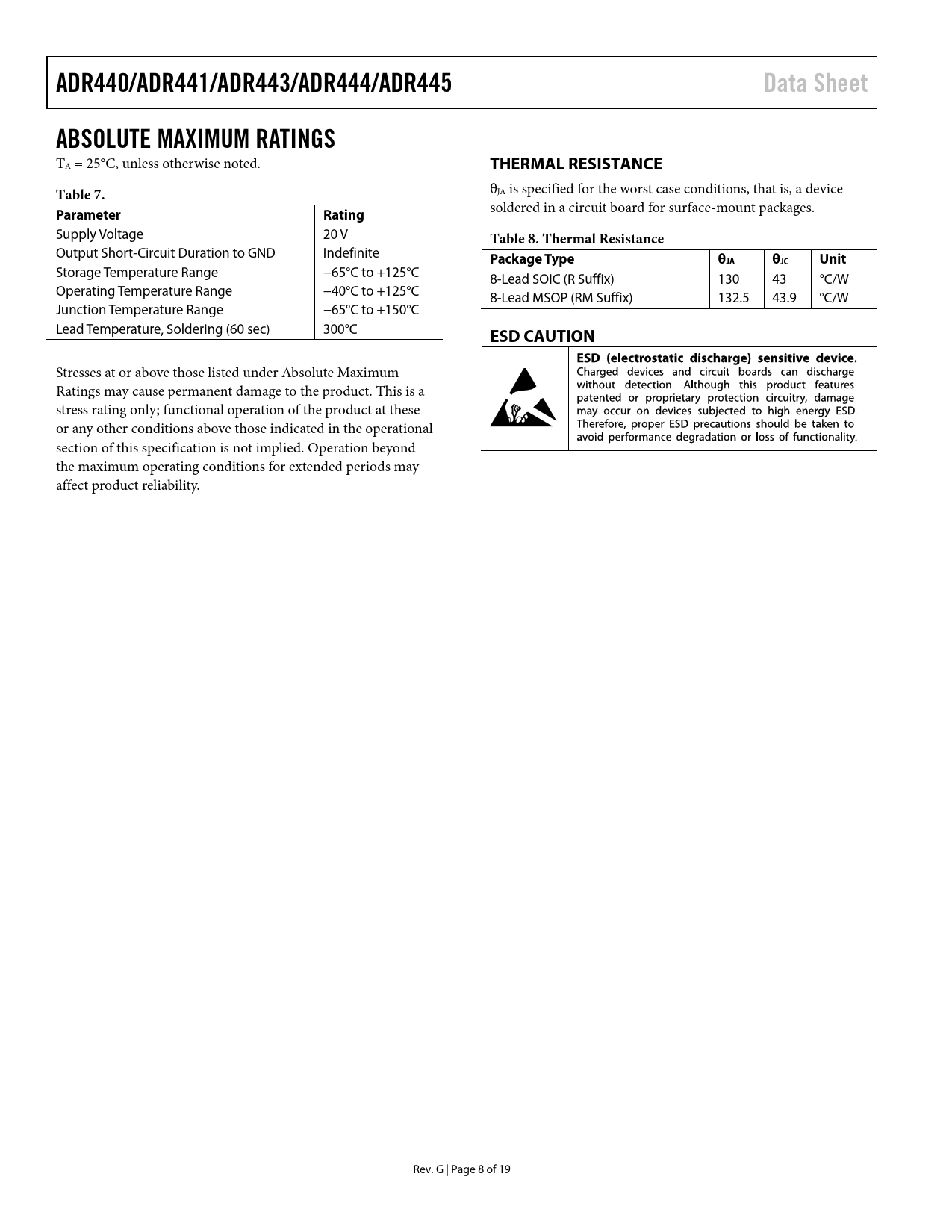

ADR440/ADR441/ADR443/ADR444/ADR445. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 7. Parameter. Rating

ADR440/ADR441/ADR443/ADR444/ADR445 Data Sheet ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 7 Parameter Rating

Model Line for this Datasheet

Text Version of Document

ADR440/ADR441/ADR443/ADR444/ADR445 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
THERMAL RESISTANCE Table 7.
θJA is specified for the worst case conditions, that is, a device
Parameter Rating
soldered in a circuit board for surface-mount packages. Supply Voltage 20 V
Table 8. Thermal Resistance
Output Short-Circuit Duration to GND Indefinite
Package Type θJA θJC Unit
Storage Temperature Range −65°C to +125°C 8-Lead SOIC (R Suffix) 130 43 °C/W Operating Temperature Range −40°C to +125°C 8-Lead MSOP (RM Suffix) 132.5 43.9 °C/W Junction Temperature Range −65°C to +150°C Lead Temperature, Soldering (60 sec) 300°C
ESD CAUTION
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. G | Page 8 of 19 Document Outline Features Applications Pin Configurations General Description Revision History Specifications ADR440 Electrical Characteristics ADR441 Electrical Characteristics ADR443 Electrical Characteristics ADR444 Electrical Characteristics ADR445 Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Theory of Operation Power Dissipation Considerations Basic Voltage Reference Connections Noise Performance Turn On Time Applications Information Output Adjustment Bipolar Outputs Programmable Voltage Source Programmable Current Source High Voltage Floating Current Source Precision Output Regulator (Boosted Reference) Outline Dimensions Ordering Guide
