Datasheet ADR291W (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | Low Noise Micropower Precision Voltage Reference (2.5 V) |
| Pages / Page | 8 / 7 — ADR291W. OUTLINE DIMENSIONS. 5.00 (0.1968) 4.80 (0.1890). 4.00 (0.1574). … |
| File Format / Size | PDF / 128 Kb |
| Document Language | English |

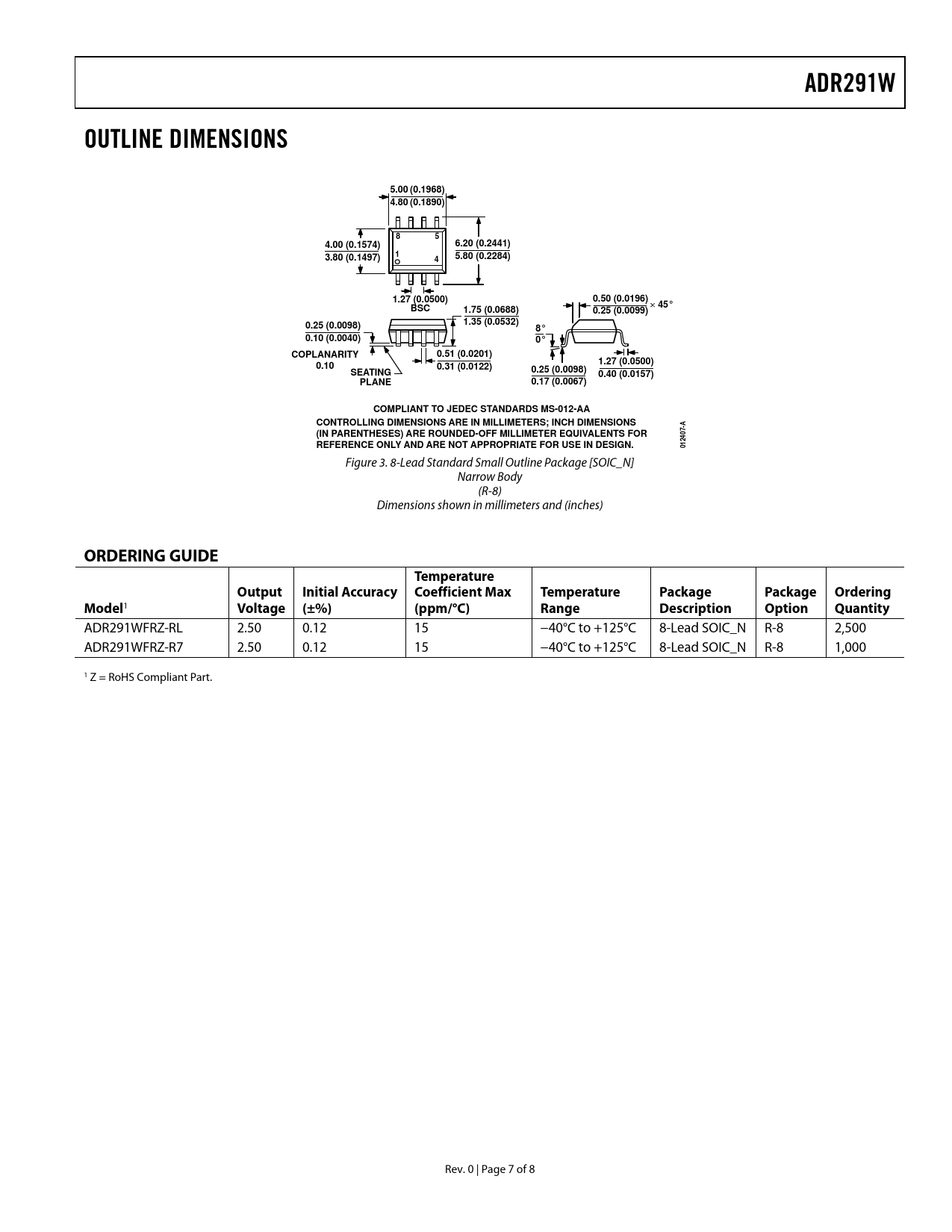

ADR291W. OUTLINE DIMENSIONS. 5.00 (0.1968) 4.80 (0.1890). 4.00 (0.1574). 6.20 (0.2441). 3.80 (0.1497). 5.80 (0.2284). 1.27 (0.0500)
Model Line for this Datasheet
Text Version of Document
link to page 7
ADR291W OUTLINE DIMENSIONS 5.00 (0.1968) 4.80 (0.1890) 8 5 4.00 (0.1574) 6.20 (0.2441) 1 3.80 (0.1497) 5.80 (0.2284) 4 1.27 (0.0500) 0.50 (0.0196) 45° BSC 1.75 (0.0688) 0.25 (0.0099) 1.35 (0.0532) 0.25 (0.0098) 8° 0.10 (0.0040) 0° COPLANARITY 0.51 (0.0201) 1.27 (0.0500) 0.10 0.31 (0.0122) 0.25 (0.0098) SEATING 0.40 (0.0157) PLANE 0.17 (0.0067) COMPLIANT TO JEDEC STANDARDS MS-012-AA CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS A (IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 012407-
Figure 3. 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8) Dimensions shown in millimeters and (inches)
ORDERING GUIDE Temperature Output Initial Accuracy Coefficient Max Temperature Package Package Ordering Model
1
Voltage (±%) (ppm/°C) Range Description Option Quantity
ADR291WFRZ-RL 2.50 0.12 15 −40°C to +125°C 8-Lead SOIC_N R-8 2,500 ADR291WFRZ-R7 2.50 0.12 15 −40°C to +125°C 8-Lead SOIC_N R-8 1,000 1 Z = RoHS Compliant Part. Rev. 0 | Page 7 of 8 Document Outline Features Applications Connection Diagram General Description Revision History Specifications Electrical Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Terminology Outline Dimensions Ordering Guide
