Datasheet REF43 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | +2.5V Low Power Precision Voltage Reference |
| Pages / Page | 12 / 4 — REF43. DICE CHARACTERISTICS. VIN. TEMPERATURE OUT. 4A. GROUND* 4B. … |
| Revision | D |
| File Format / Size | PDF / 979 Kb |
| Document Language | English |

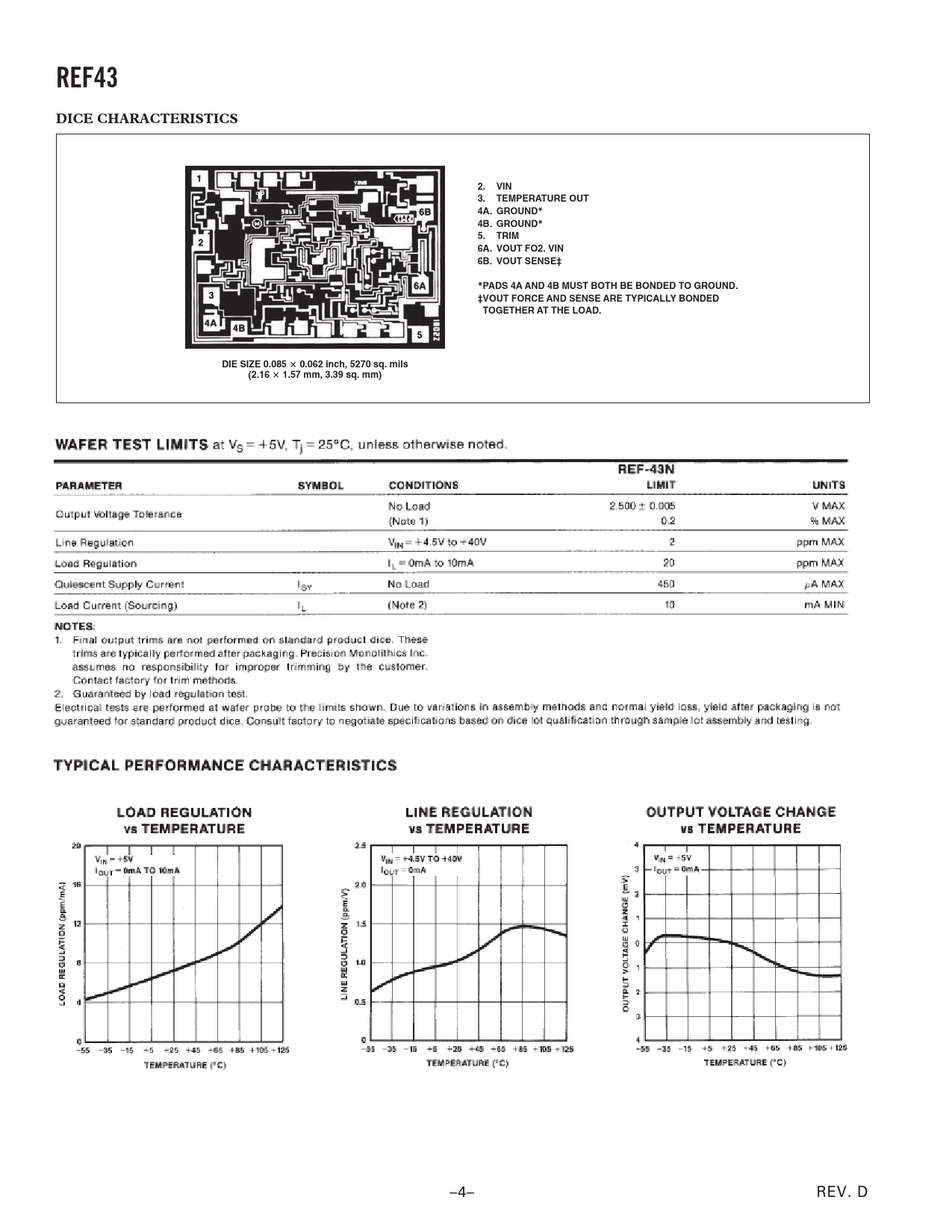

REF43. DICE CHARACTERISTICS. VIN. TEMPERATURE OUT. 4A. GROUND* 4B. GROUND* 5. TRIM. 6A. VOUT FO2. VIN 6B. VOUT SENSE‡
Model Line for this Datasheet
Text Version of Document
REF43 DICE CHARACTERISTICS 2. VIN 3. TEMPERATURE OUT 4A. GROUND* 4B. GROUND* 5. TRIM 6A. VOUT FO2. VIN 6B. VOUT SENSE‡ *PADS 4A AND 4B MUST BOTH BE BONDED TO GROUND. ‡VOUT FORCE AND SENSE ARE TYPICALLY BONDED TOGETHER AT THE LOAD. DIE SIZE 0.085
ⴛ
0.062 inch, 5270 sq. mils (2.16
ⴛ
1.57 mm, 3.39 sq. mm)
–4– REV. D Document Outline FEATURES GENERAL DESCRIPTION PIN CONFIGURATION ORDERING GUIDE SIMPLIFIED SCHEMATIC ABSOLUTE MAXIMUM RATINGS ELECTRICAL CHARACTERISTICS BURN-IN CIRCUIT OUTPUT VOLTAGE TRIM METHOD DICE CHARACTERISTICS WAFER TEST LIMITS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION GENERATING A –2.5V REFERENCE BOOST TRANSISTOR PROVIDES HIGH OUTPUT CURRENT LOW POWER CMOS DAC REFERENCE PRECISION CURRENT SOURCE TEMPERATURE MEASUREMENT OUTLINE DIMENSIONS Revision History
