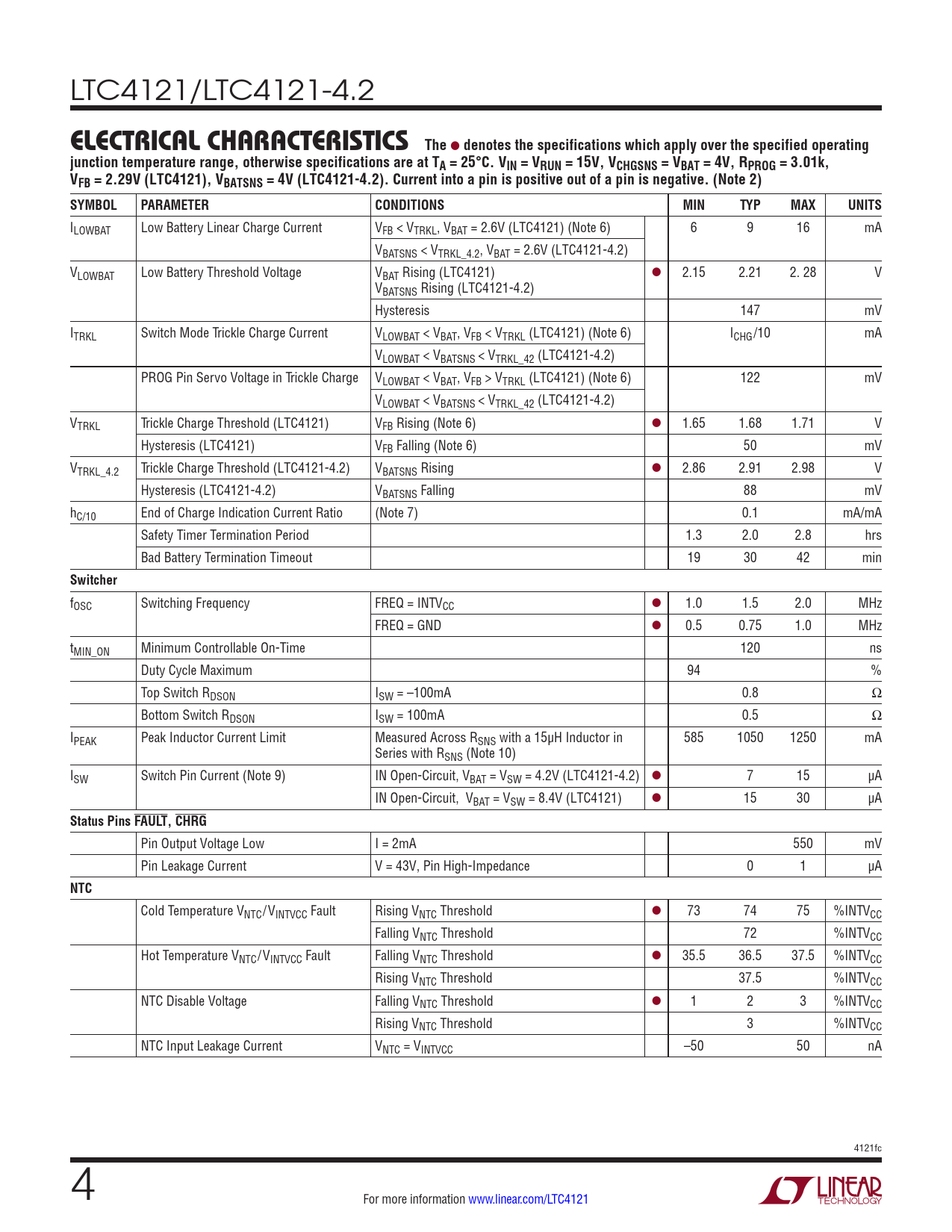

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the specified operating
Model Line for this Datasheet
Text Version of Document
LTC4121/LTC4121-4.2
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TA = 25°C. VIN = VRUN = 15V, VCHGSNS = VBAT = 4V, RPROG = 3.01k, VFB = 2.29V (LTC4121), VBATSNS = 4V (LTC4121-4.2). Current into a pin is positive out of a pin is negative. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
ILOWBAT Low Battery Linear Charge Current VFB < VTRKL, VBAT = 2.6V (LTC4121) (Note 6) 6 9 16 mA VBATSNS < VTRKL_4.2, VBAT = 2.6V (LTC4121-4.2) VLOWBAT Low Battery Threshold Voltage VBAT Rising (LTC4121) l 2.15 2.21 2. 28 V VBATSNS Rising (LTC4121-4.2) Hysteresis 147 mV ITRKL Switch Mode Trickle Charge Current VLOWBAT < VBAT, VFB < VTRKL (LTC4121) (Note 6) ICHG/10 mA VLOWBAT < VBATSNS < VTRKL_42 (LTC4121-4.2) PROG Pin Servo Voltage in Trickle Charge VLOWBAT < VBAT, VFB > VTRKL (LTC4121) (Note 6) 122 mV VLOWBAT < VBATSNS < VTRKL_42 (LTC4121-4.2) VTRKL Trickle Charge Threshold (LTC4121) VFB Rising (Note 6) l 1.65 1.68 1.71 V Hysteresis (LTC4121) VFB Falling (Note 6) 50 mV VTRKL_4.2 Trickle Charge Threshold (LTC4121-4.2) VBATSNS Rising l 2.86 2.91 2.98 V Hysteresis (LTC4121-4.2) VBATSNS Falling 88 mV hC/10 End of Charge Indication Current Ratio (Note 7) 0.1 mA/mA Safety Timer Termination Period 1.3 2.0 2.8 hrs Bad Battery Termination Timeout 19 30 42 min
