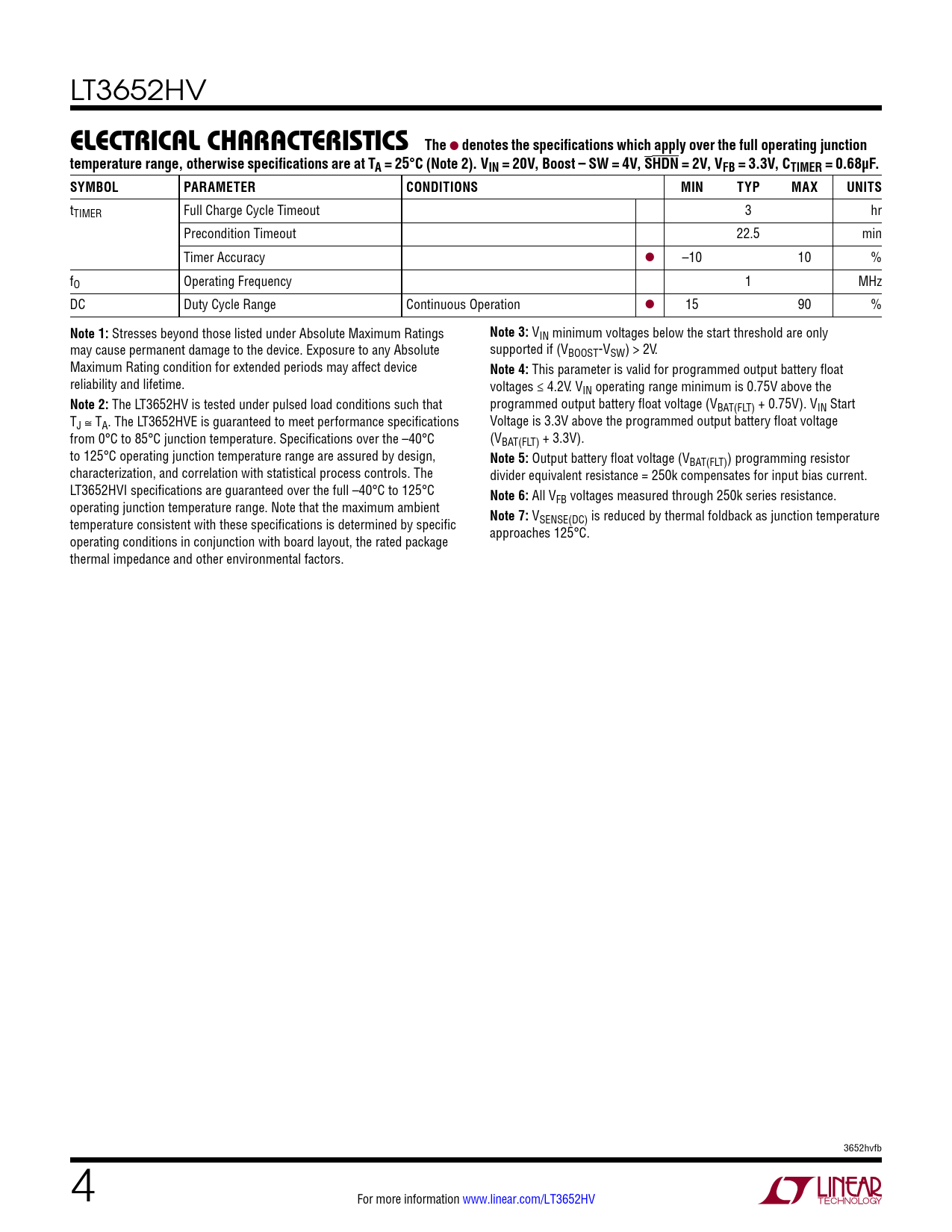

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating junction
Model Line for this Datasheet
Text Version of Document
LT3652HV
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating junction temperature range, otherwise specifications are at TA = 25°C (Note 2). VIN = 20V, Boost – SW = 4V, SHDN = 2V, VFB = 3.3V, CTIMER = 0.68µF. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
tTIMER Full Charge Cycle Timeout 3 hr Precondition Timeout 22.5 min Timer Accuracy l –10 10 % fO Operating Frequency 1 MHz DC Duty Cycle Range Continuous Operation l 15 90 %
