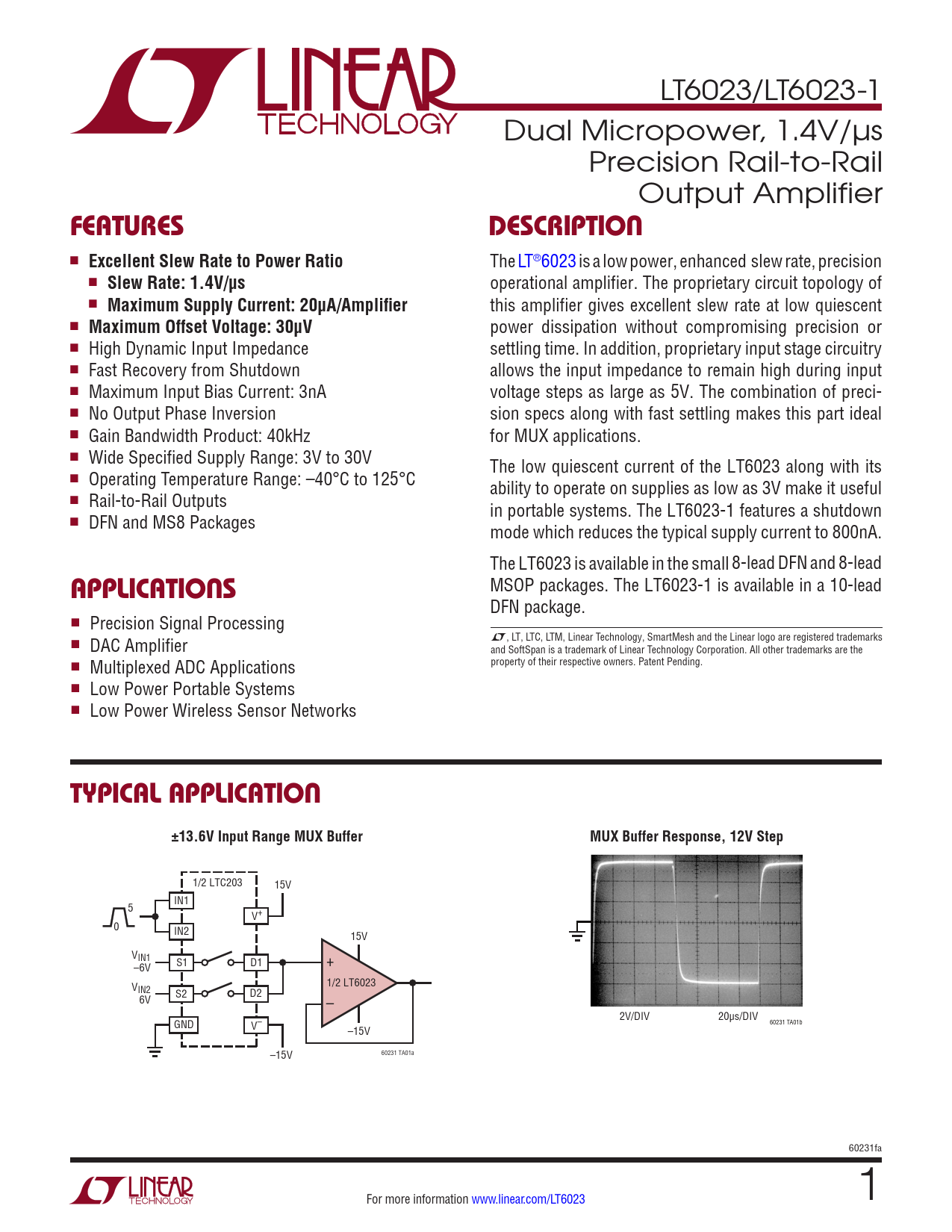

LT6023/LT6023-1 Dual Micropower, 1.4V/µs Precision Rail-to-Rail Output Amplifier
FEATURES DESCRIPTION
n
Excellent Slew Rate to Power Ratio
The LT®6023 is a low power, enhanced slew rate, precision n
Slew Rate: 1.4V/μs
operational amplifier. The proprietary circuit topology of n
Maximum Supply Current: 20μA/Amplifier
this amplifier gives excellent slew rate at low quiescent n
Maximum Offset Voltage: 30μV
power dissipation without compromising precision or n High Dynamic Input Impedance settling time. In addition, proprietary input stage circuitry n Fast Recovery from Shutdown allows the input impedance to remain high during input n Maximum Input Bias Current: 3nA voltage steps as large as 5V. The combination of preci- n No Output Phase Inversion sion specs along with fast settling makes this part ideal n Gain Bandwidth Product: 40kHz for MUX applications. n Wide Specified Supply Range: 3V to 30V The low quiescent current of the LT6023 along with its n Operating Temperature Range: –40°C to 125°C ability to operate on supplies as low as 3V make it useful n Rail-to-Rail Outputs in portable systems. The LT6023-1 features a shutdown n DFN and MS8 Packages mode which reduces the typical supply current to 800nA. The LT6023 is available in the small 8-lead DFN and 8-lead MSOP packages. The LT6023-1 is available in a 10-lead
APPLICATIONS
DFN package. n Precision Signal Processing L, LT, LTC, LTM, Linear Technology, SmartMesh and the Linear logo are registered trademarks n DAC Amplifier and SoftSpan is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners. Patent Pending. n Multiplexed ADC Applications n Low Power Portable Systems n Low Power Wireless Sensor Networks
TYPICAL APPLICATION ±13.6V Input Range MUX Buffer MUX Buffer Response, 12V Step
1/2 LTC203 15V IN1 5 V+ 0 IN2 15V VIN1 S1 D1 –6V + V 1/2 LT6023 IN2 S2 D2 6V – 2V/DIV 20µs/DIV GND V– 60231 TA01b –15V 60231 TA01a –15V 60231fa For more information www.linear.com/LT6023 1 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Applications Information Typical Applications Package Description Typical Application Related Parts
