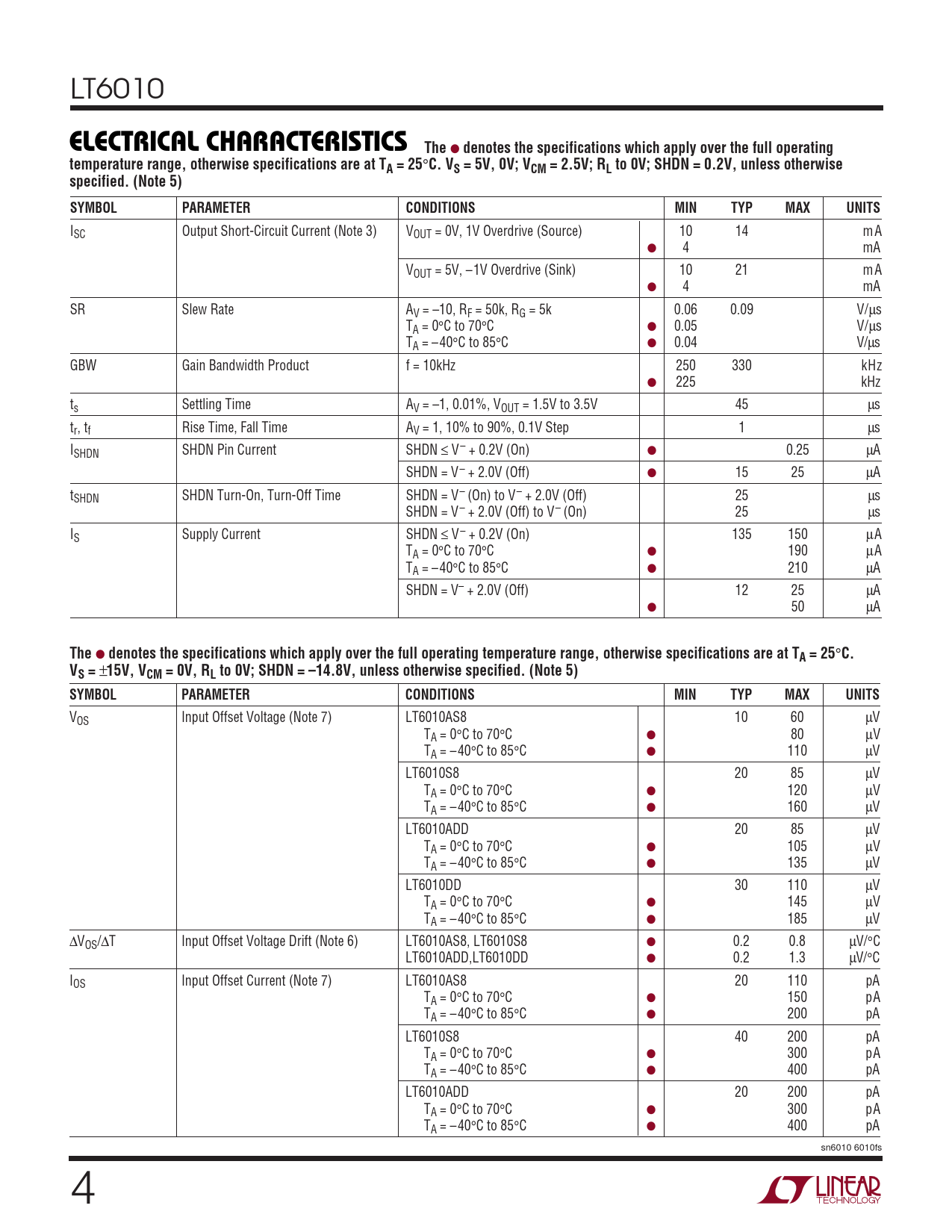

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LT6010
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS = 5V, 0V; VCM = 2.5V; RL to 0V; SHDN = 0.2V, unless otherwise specified. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
ISC Output Short-Circuit Current (Note 3) VOUT = 0V, 1V Overdrive (Source) 10 14 m A ● 4 mA VOUT = 5V, –1V Overdrive (Sink) 10 21 m A ● 4 mA SR Slew Rate AV = –10, RF = 50k, RG = 5k 0.06 0.09 V/µs TA = 0°C to 70°C ● 0.05 V/µs TA = –40°C to 85°C ● 0.04 V/µs GBW Gain Bandwidth Product f = 10kHz 250 330 kHz ● 225 kHz ts Settling Time AV = –1, 0.01%, VOUT = 1.5V to 3.5V 45 µs tr, tf Rise Time, Fall Time AV = 1, 10% to 90%, 0.1V Step 1 µs ISHDN SHDN Pin Current SHDN ≤ V– + 0.2V (On) ● 0.25 µA SHDN = V– + 2.0V (Off) ● 15 25 µA tSHDN SHDN Turn-On, Turn-Off Time SHDN = V– (On) to V– + 2.0V (Off) 25 µs SHDN = V– + 2.0V (Off) to V– (On) 25 µs IS Supply Current SHDN ≤ V– + 0.2V (On) 135 150 µA TA = 0°C to 70°C ● 190 µA TA = –40°C to 85°C ● 210 µA SHDN = V– + 2.0V (Off) 12 25 µA ● 50 µA
The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS =
±
15V, VCM = 0V, RL to 0V; SHDN = –14.8V, unless otherwise specified. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 7) LT6010AS8 10 60 µV TA = 0°C to 70°C ● 80 µV TA = –40°C to 85°C ● 110 µV LT6010S8 20 85 µV TA = 0°C to 70°C ● 120 µV TA = –40°C to 85°C ● 160 µV LT6010ADD 20 85 µV TA = 0°C to 70°C ● 105 µV TA = –40°C to 85°C ● 135 µV LT6010DD 30 110 µV TA = 0°C to 70°C ● 145 µV TA = –40°C to 85°C ● 185 µV ∆VOS/∆T Input Offset Voltage Drift (Note 6) LT6010AS8, LT6010S8 ● 0.2 0.8 µV/°C LT6010ADD,LT6010DD ● 0.2 1.3 µV/°C IOS Input Offset Current (Note 7) LT6010AS8 20 110 pA TA = 0°C to 70°C ● 150 pA TA = –40°C to 85°C ● 200 pA LT6010S8 40 200 pA TA = 0°C to 70°C ● 300 pA TA = –40°C to 85°C ● 400 pA LT6010ADD 20 200 pA TA = 0°C to 70°C ● 300 pA TA = –40°C to 85°C ● 400 pA sn6010 6010fs 4
