| Description | Dual/Quad 135µA, 14nV/√Hz, Rail-to-Rail Output Precision Op Amp |
| Pages / Page | 20 / 4 — elecTrical characTerisTics. The. denotes the specifications which apply … |
| File Format / Size | PDF / 384 Kb |
| Document Language | English |

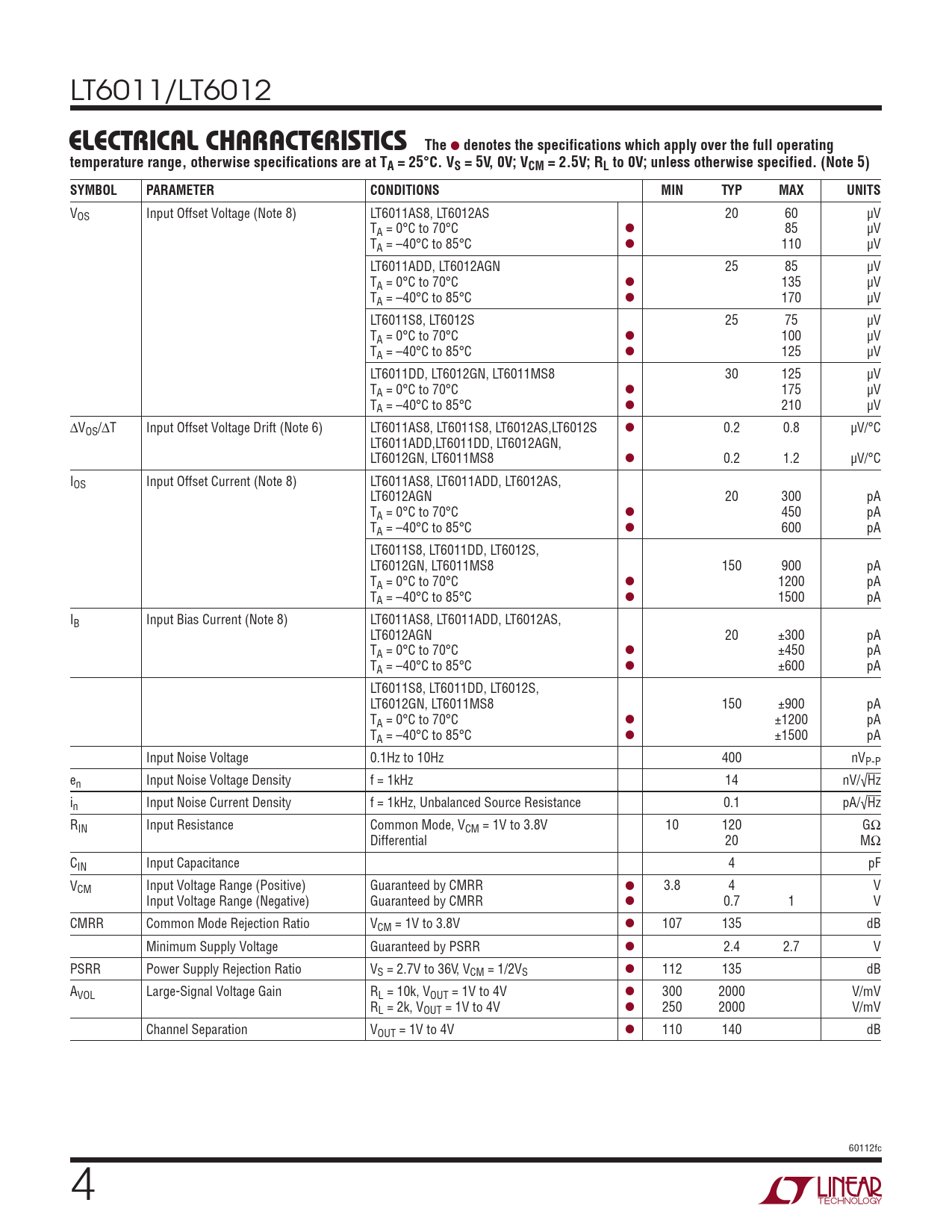

elecTrical characTerisTics. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LT6011ACDD#PBF LT6011ACDD#TRPBF LT6011ACS8#PBF LT6011ACS8#TRPBF LT6011AIDD#PBF LT6011AIDD#TRPBF LT6011AIS8#PBF LT6011AIS8#TRPBF LT6011CDD#PBF LT6011CDD#TRPBF LT6011CMS8#PBF LT6011CMS8#TRPBF LT6011CS8#PBF LT6011CS8#TRPBF LT6011IDD#PBF LT6011IDD#TRPBF LT6011IMS8#PBF LT6011IMS8#TRPBF LT6011IS8#PBF LT6011IS8#TRPBF
Text Version of Document
LT6011/LT6012
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VS = 5V, 0V; VCM = 2.5V; RL to 0V; unless otherwise specified. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 8) LT6011AS8, LT6012AS 20 60 µV TA = 0°C to 70°C l 85 µV TA = –40°C to 85°C l 110 µV LT6011ADD, LT6012AGN 25 85 µV TA = 0°C to 70°C l 135 µV TA = –40°C to 85°C l 170 µV LT6011S8, LT6012S 25 75 µV TA = 0°C to 70°C l 100 µV TA = –40°C to 85°C l 125 µV LT6011DD, LT6012GN, LT6011MS8 30 125 µV TA = 0°C to 70°C l 175 µV TA = –40°C to 85°C l 210 µV ∆VOS/∆T Input Offset Voltage Drift (Note 6) LT6011AS8, LT6011S8, LT6012AS,LT6012S l 0.2 0.8 µV/°C LT6011ADD,LT6011DD, LT6012AGN, LT6012GN, LT6011MS8 l 0.2 1.2 µV/°C IOS Input Offset Current (Note 8) LT6011AS8, LT6011ADD, LT6012AS, LT6012AGN 20 300 pA TA = 0°C to 70°C l 450 pA TA = –40°C to 85°C l 600 pA LT6011S8, LT6011DD, LT6012S, LT6012GN, LT6011MS8 150 900 pA TA = 0°C to 70°C l 1200 pA TA = –40°C to 85°C l 1500 pA IB Input Bias Current (Note 8) LT6011AS8, LT6011ADD, LT6012AS, LT6012AGN 20 ±300 pA TA = 0°C to 70°C l ±450 pA TA = –40°C to 85°C l ±600 pA LT6011S8, LT6011DD, LT6012S, LT6012GN, LT6011MS8 150 ±900 pA TA = 0°C to 70°C l ±1200 pA TA = –40°C to 85°C l ±1500 pA Input Noise Voltage 0.1Hz to 10Hz 400 nVP-P en Input Noise Voltage Density f = 1kHz 14 nV/√Hz in Input Noise Current Density f = 1kHz, Unbalanced Source Resistance 0.1 pA/√Hz RIN Input Resistance Common Mode, VCM = 1V to 3.8V 10 120 GΩ Differential 20 MΩ CIN Input Capacitance 4 pF VCM Input Voltage Range (Positive) Guaranteed by CMRR l 3.8 4 V Input Voltage Range (Negative) Guaranteed by CMRR l 0.7 1 V CMRR Common Mode Rejection Ratio VCM = 1V to 3.8V l 107 135 dB Minimum Supply Voltage Guaranteed by PSRR l 2.4 2.7 V PSRR Power Supply Rejection Ratio VS = 2.7V to 36V, VCM = 1/2VS l 112 135 dB AVOL Large-Signal Voltage Gain RL = 10k, VOUT = 1V to 4V l 300 2000 V/mV RL = 2k, VOUT = 1V to 4V l 250 2000 V/mV Channel Separation VOUT = 1V to 4V l 110 140 dB 60112fc 4 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Package/Order Information Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Application Related Parts
