| Manufacturer | Analog Devices |
| Description | Dual/Quad 135µA, 14nV/√Hz, Rail-to-Rail Output Precision Op Amp |
| Pages / Page | 20 / 10 — Typical perForMance characTerisTics. Settling Time vs Output Step. … |
| File Format / Size | PDF / 384 Kb |
| Document Language | English |

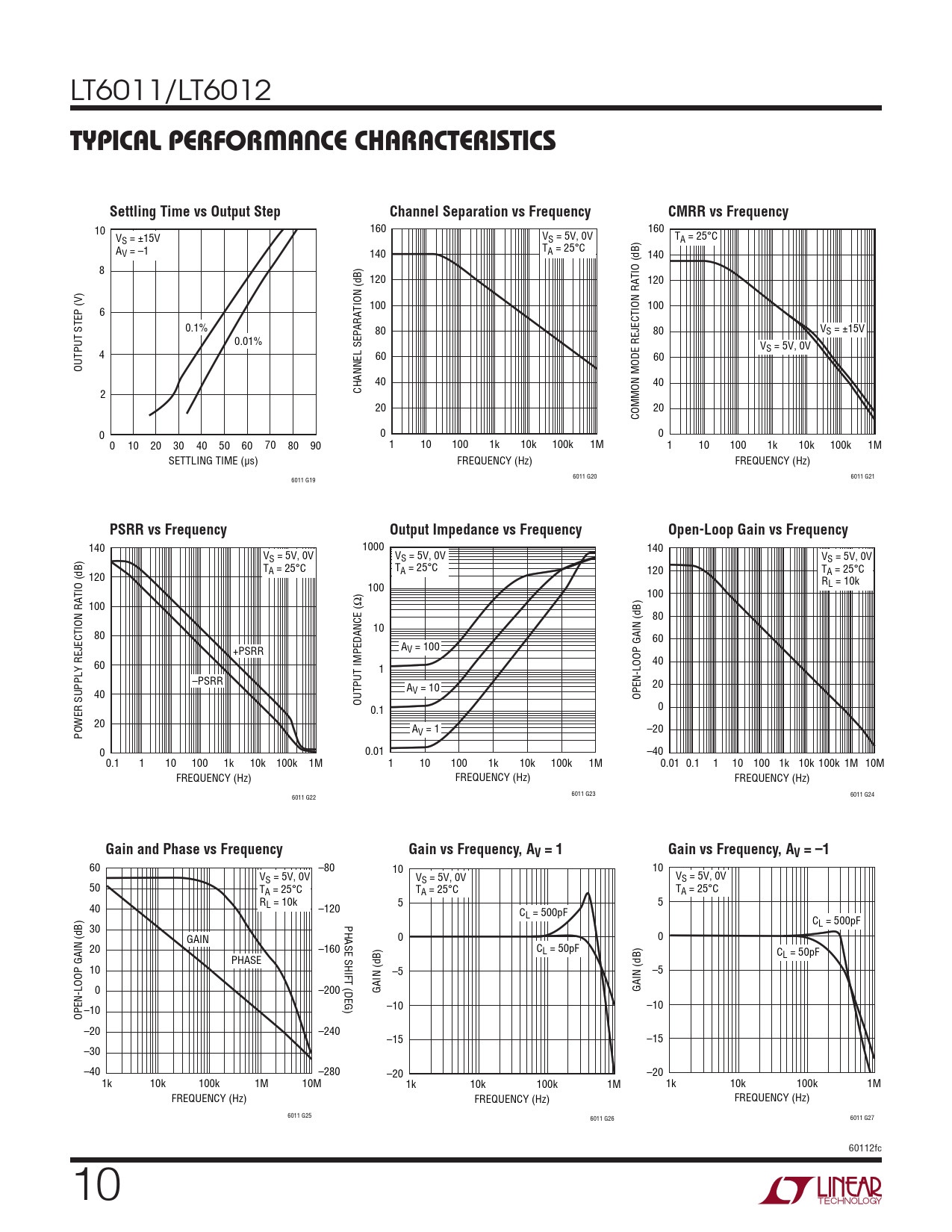

Typical perForMance characTerisTics. Settling Time vs Output Step. Channel Separation vs Frequency. CMRR vs Frequency
Model Line for this Datasheet
- LT6011ACDD#PBF LT6011ACDD#TRPBF LT6011ACS8#PBF LT6011ACS8#TRPBF LT6011AIDD#PBF LT6011AIDD#TRPBF LT6011AIS8#PBF LT6011AIS8#TRPBF LT6011CDD#PBF LT6011CDD#TRPBF LT6011CMS8#PBF LT6011CMS8#TRPBF LT6011CS8#PBF LT6011CS8#TRPBF LT6011IDD#PBF LT6011IDD#TRPBF LT6011IMS8#PBF LT6011IMS8#TRPBF LT6011IS8#PBF LT6011IS8#TRPBF
Text Version of Document
LT6011/LT6012
Typical perForMance characTerisTics Settling Time vs Output Step Channel Separation vs Frequency CMRR vs Frequency
10 160 160 VS = ±15V VS = 5V, 0V TA = 25°C AV = –1 140 TA = 25°C 140 8 120 120 100 100 6 0.1% 80 80 VS = ±15V 0.01% V 4 S = 5V, 0V 60 60 OUTPUT STEP (V) 40 40 2 CHANNEL SEPARATION (dB) 20 20 COMMON MODE REJECTION RATIO (dB) 0 0 0 0 10 20 30 40 50 60 70 80 90 1 10 100 1k 10k 100k 1M 1 10 100 1k 10k 100k 1M SETTLING TIME (µs) FREQUENCY (Hz) FREQUENCY (Hz) 6011 G19 6011 G20 6011 G21
PSRR vs Frequency Output Impedance vs Frequency Open-Loop Gain vs Frequency
140 1000 140 VS = 5V, 0V VS = 5V, 0V VS = 5V, 0V T T T 120 A = 25°C A = 25°C 120 A = 25°C 100 RL = 10k 100 100 80 10 80 60 +PSRR AV = 100 60 40 1 –PSRR 20 40 AV = 10 OUTPUT IMPEDANCE (Ω) OPEN-LOOP GAIN (dB) 0.1 0 20 POWER SUPPLY REJECTION RATIO (dB) AV = 1 –20 0 0.01 –40 0.1 1 10 100 1k 10k 100k 1M 1 10 100 1k 10k 100k 1M 0.01 0.1 1 10 100 1k 10k 100k 1M 10M FREQUENCY (Hz) FREQUENCY (Hz) FREQUENCY (Hz) 6011 G22 6011 G23 6011 G24
Gain and Phase vs Frequency Gain vs Frequency, AV = 1 Gain vs Frequency, AV = –1
60 –80 10 10 VS = 5V, 0V VS = 5V, 0V VS = 5V, 0V 50 TA = 25°C TA = 25°C TA = 25°C 40 RL = 10k –120 5 5 CL = 500pF PHASE SHIFT (DEG) C 30 L = 500pF GAIN 0 0 20 –160 CL = 50pF C PHASE L = 50pF 10 –5 –5 0 –200 GAIN (dB) GAIN (dB) –10 –10 –10 OPEN-LOOP GAIN (dB) –20 –240 –15 –15 –30 –40 –280 –20 –20 1k 10k 100k 1M 10M 1k 10k 100k 1M 1k 10k 100k 1M FREQUENCY (Hz) FREQUENCY (Hz) FREQUENCY (Hz) 6011 G25 6011 G26 6011 G27 60112fc 10 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Package/Order Information Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Application Related Parts
