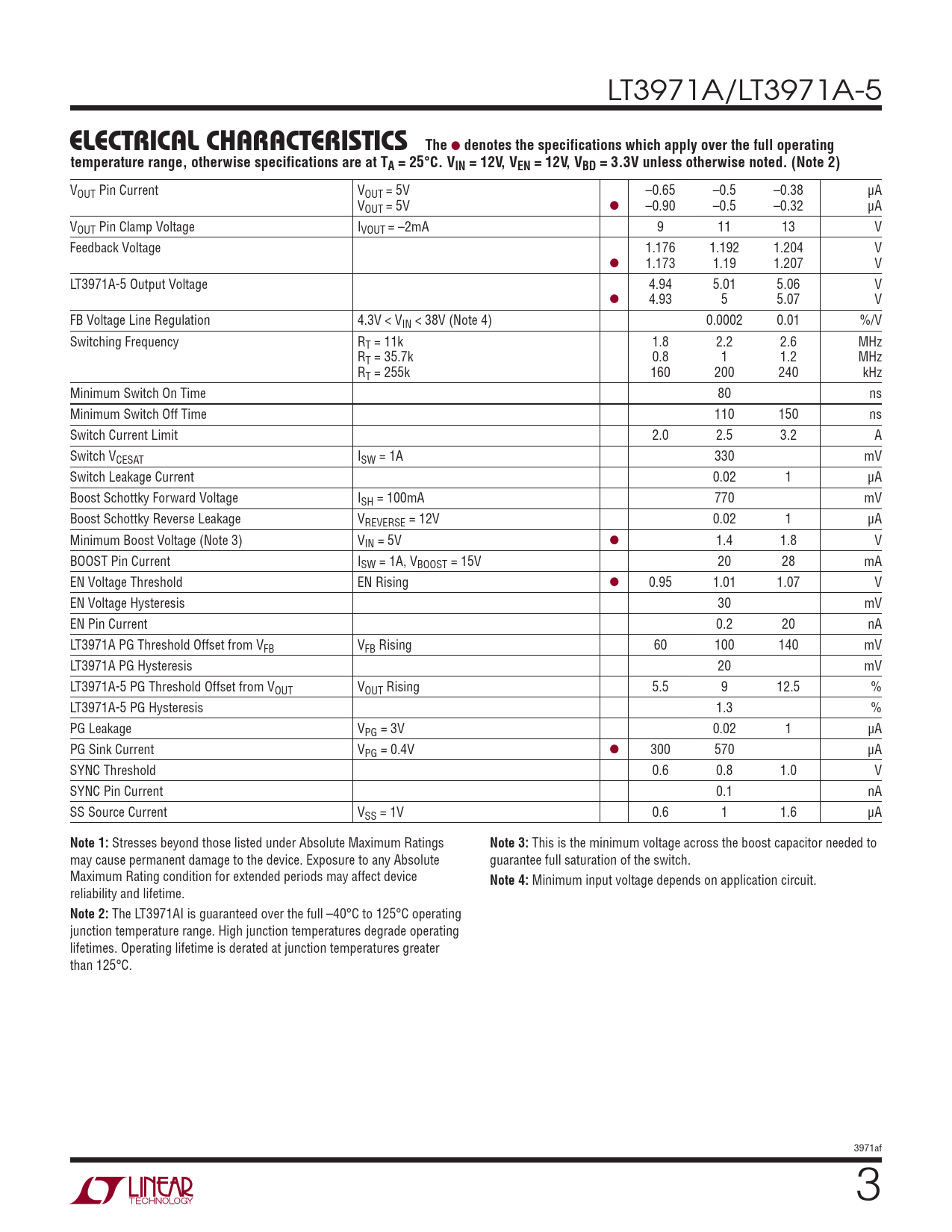

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LT3971A/LT3971A-5
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 12V, VEN = 12V, VBD = 3.3V unless otherwise noted. (Note 2)
VOUT Pin Current VOUT = 5V –0.65 –0.5 –0.38 μA VOUT = 5V l –0.90 –0.5 –0.32 μA VOUT Pin Clamp Voltage IVOUT = –2mA 9 11 13 V Feedback Voltage 1.176 1.192 1.204 V l 1.173 1.19 1.207 V LT3971A-5 Output Voltage 4.94 5.01 5.06 V l 4.93 5 5.07 V FB Voltage Line Regulation 4.3V < VIN < 38V (Note 4) 0.0002 0.01 %/V Switching Frequency RT = 11k 1.8 2.2 2.6 MHz RT = 35.7k 0.8 1 1.2 MHz RT = 255k 160 200 240 kHz Minimum Switch On Time 80 ns Minimum Switch Off Time 110 150 ns Switch Current Limit 2.0 2.5 3.2 A Switch VCESAT ISW = 1A 330 mV Switch Leakage Current 0.02 1 μA Boost Schottky Forward Voltage ISH = 100mA 770 mV Boost Schottky Reverse Leakage VREVERSE = 12V 0.02 1 μA Minimum Boost Voltage (Note 3) VIN = 5V l 1.4 1.8 V BOOST Pin Current ISW = 1A, VBOOST = 15V 20 28 mA EN Voltage Threshold EN Rising l 0.95 1.01 1.07 V EN Voltage Hysteresis 30 mV EN Pin Current 0.2 20 nA LT3971A PG Threshold Offset from VFB VFB Rising 60 100 140 mV LT3971A PG Hysteresis 20 mV LT3971A-5 PG Threshold Offset from VOUT VOUT Rising 5.5 9 12.5 % LT3971A-5 PG Hysteresis 1.3 % PG Leakage VPG = 3V 0.02 1 μA PG Sink Current VPG = 0.4V l 300 570 μA SYNC Threshold 0.6 0.8 1.0 V SYNC Pin Current 0.1 nA SS Source Current VSS = 1V 0.6 1 1.6 μA
