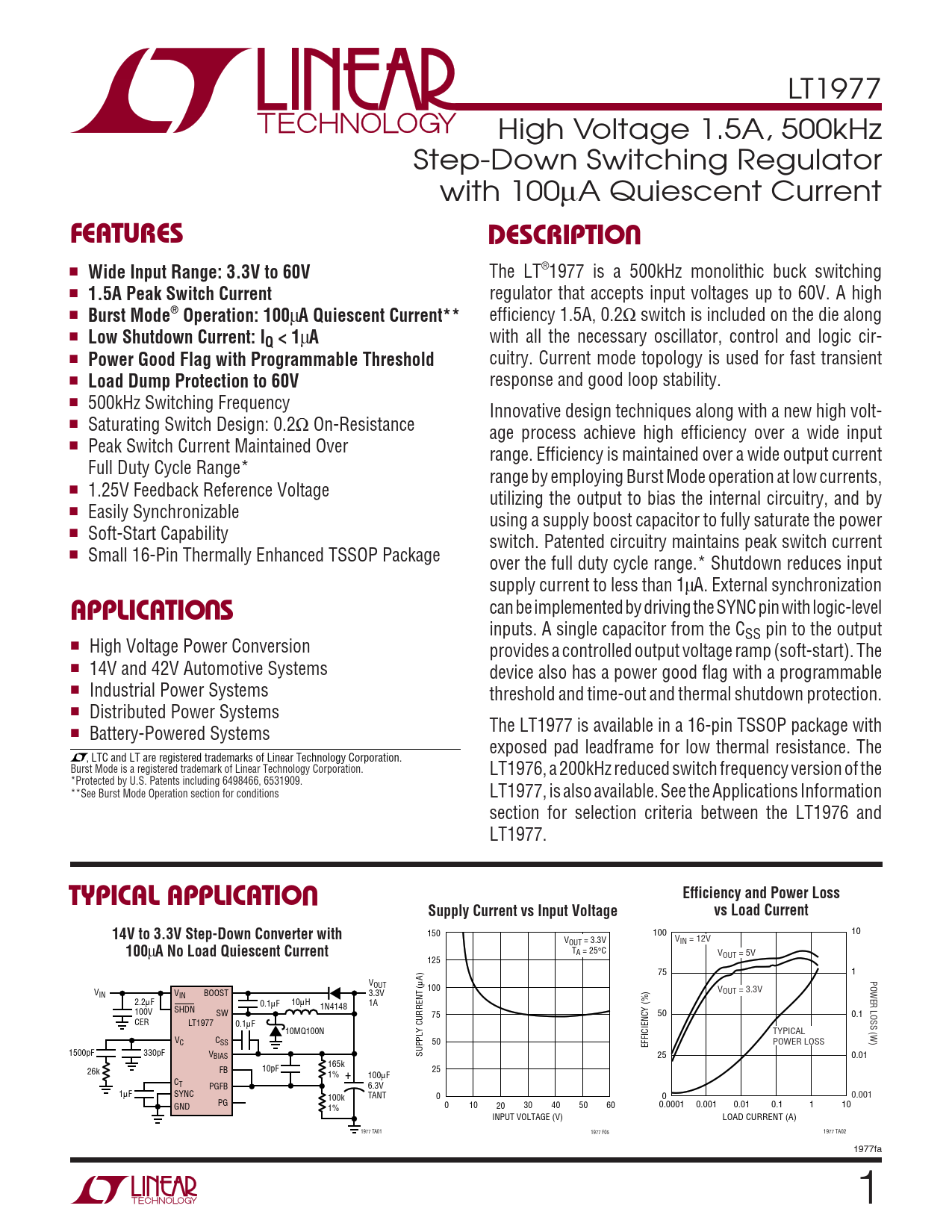

LT1977 High Voltage 1.5A, 500kHz Step-Down Switching Regulator with 100µA Quiescent Current
U FEATURES DESCRIPTIO

Wide Input Range: 3.3V to 60V
The LT®1977 is a 500kHz monolithic buck switching ■
1.5A Peak Switch Current
regulator that accepts input voltages up to 60V. A high ■
Burst Mode® Operation: 100
µ
A Quiescent Current**
efficiency 1.5A, 0.2Ω switch is included on the die along ■
Low Shutdown Current: IQ < 1
µ
A
with all the necessary oscillator, control and logic cir- ■
Power Good Flag with Programmable Threshold
cuitry. Current mode topology is used for fast transient ■
Load Dump Protection to 60V
response and good loop stability. ■ 500kHz Switching Frequency Innovative design techniques along with a new high volt- ■ Saturating Switch Design: 0.2Ω On-Resistance age process achieve high efficiency over a wide input ■ Peak Switch Current Maintained Over range. Efficiency is maintained over a wide output current Full Duty Cycle Range* range by employing Burst Mode operation at low currents, ■ 1.25V Feedback Reference Voltage utilizing the output to bias the internal circuitry, and by ■ Easily Synchronizable using a supply boost capacitor to fully saturate the power ■ Soft-Start Capability switch. Patented circuitry maintains peak switch current ■ Small 16-Pin Thermally Enhanced TSSOP Package over the full duty cycle range.* Shutdown reduces input supply current to less than 1µA. External synchronization
U
can be implemented by driving the SYNC pin with logic-level
APPLICATIO S
inputs. A single capacitor from the CSS pin to the output ■ High Voltage Power Conversion provides a controlled output voltage ramp (soft-start). The ■ 14V and 42V Automotive Systems device also has a power good flag with a programmable ■ Industrial Power Systems threshold and time-out and thermal shutdown protection. ■ Distributed Power Systems ■ Battery-Powered Systems The LT1977 is available in a 16-pin TSSOP package with exposed pad leadframe for low thermal resistance. The , LTC and LT are registered trademarks of Linear Technology Corporation. Burst Mode is a registered trademark of Linear Technology Corporation. LT1976, a 200kHz reduced switch frequency version of the *Protected by U.S. Patents including 6498466, 6531909. **See Burst Mode Operation section for conditions LT1977, is also available. See the Applications Information section for selection criteria between the LT1976 and LT1977.
U Efficiency and Power Loss TYPICAL APPLICATIO Supply Current vs Input Voltage vs Load Current 14V to 3.3V Step-Down Converter with
