Complete LTC6363 Family. The. denotes the specifications which apply
Model Line for this Datasheet
- LTC6363HDCB#PBF LTC6363HDCB#TRMPBF LTC6363HDCB#TRPBF LTC6363HMS8#PBF LTC6363HMS8#TRPBF LTC6363HMS8-0.5#PBF LTC6363HMS8-0.5#TRPBF LTC6363HMS8-1#PBF LTC6363HMS8-1#TRPBF LTC6363HMS8-2#PBF LTC6363HMS8-2#TRPBF LTC6363HRD#PBF LTC6363HRD#TRPBF LTC6363IDCB#PBF LTC6363IDCB#TRMPBF LTC6363IDCB#TRPBF LTC6363IMS8#PBF LTC6363IMS8#TRPBF LTC6363IMS8-0.5#PBF LTC6363IMS8-0.5#TRPBF LTC6363IMS8-1#PBF LTC6363IMS8-1#TRPBF LTC6363IMS8-2#PBF LTC6363IMS8-2#TRPBF LTC6363IRD#PBF LTC6363IRD#TRPBF
Text Version of Document

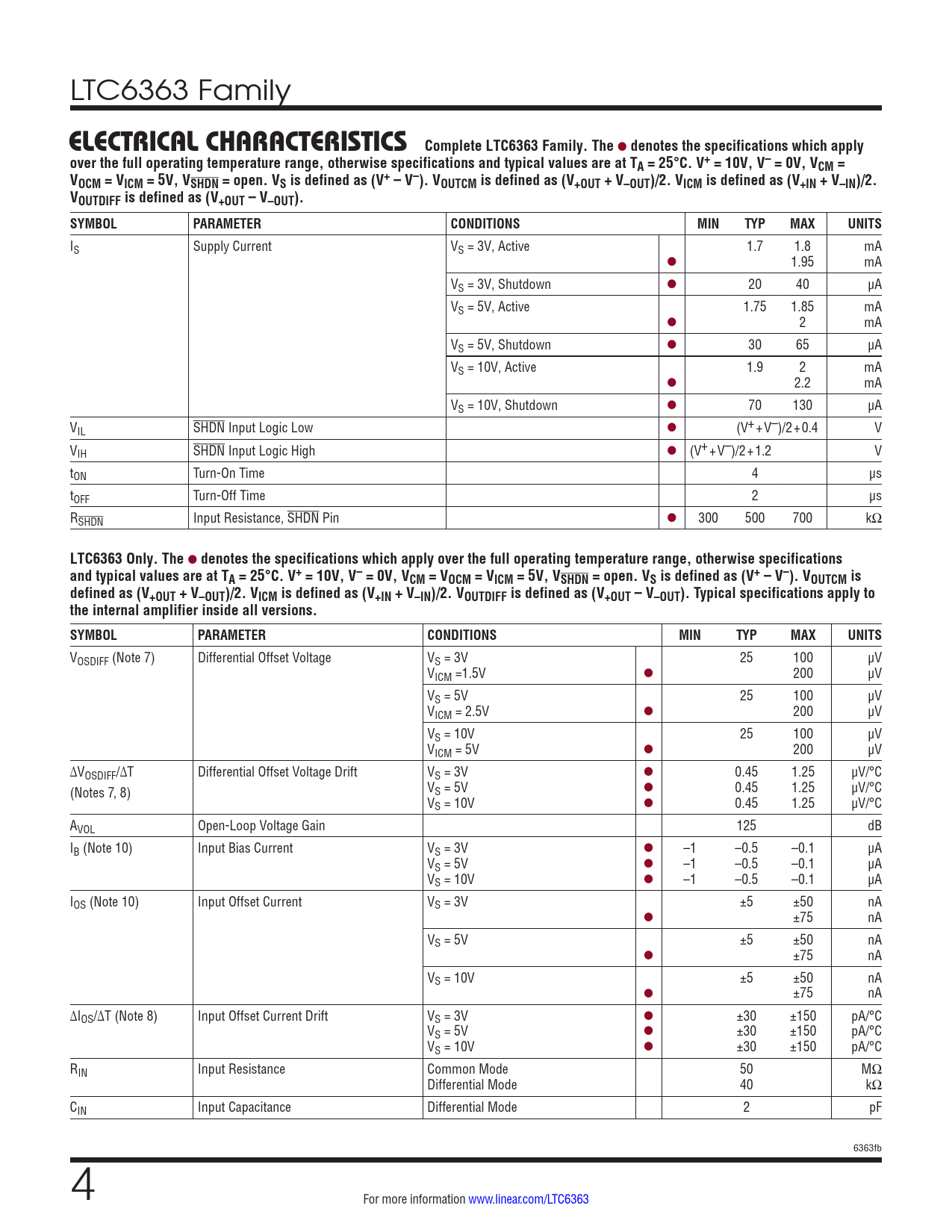

LTC6363 Family ELECTRICAL CHARACTERISTICS
Complete LTC6363 Family. The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications and typical values are at TA = 25°C. V+ = 10V, V– = 0V, VCM = VOCM = VICM = 5V, VSHDN = open. VS is defined as (V+ – V–). VOUTCM is defined as (V+OUT + V–OUT)/2. VICM is defined as (V+IN + V–IN)/2. VOUTDIFF is defined as (V+OUT – V–OUT). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IS Supply Current VS = 3V, Active 1.7 1.8 mA l 1.95 mA VS = 3V, Shutdown l 20 40 µA VS = 5V, Active 1.75 1.85 mA l 2 mA VS = 5V, Shutdown l 30 65 µA VS = 10V, Active 1.9 2 mA l 2.2 mA VS = 10V, Shutdown l 70 130 µA VIL SHDN Input Logic Low l (V+ + V–)/2 + 0.4 V VIH SHDN Input Logic High l (V+ + V–)/2 + 1.2 V tON Turn-On Time 4 μs tOFF Turn-Off Time 2 μs RSHDN Input Resistance, SHDN Pin l 300 500 700 kΩ
LTC6363 Only. The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications and typical values are at TA = 25°C. V+ = 10V, V– = 0V, VCM = VOCM = VICM = 5V, VSHDN = open. VS is defined as (V+ – V–). VOUTCM is defined as (V+OUT + V–OUT)/2. VICM is defined as (V+IN + V–IN)/2. VOUTDIFF is defined as (V+OUT – V–OUT). Typical specifications apply to the internal amplifier inside all versions. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOSDIFF (Note 7) Differential Offset Voltage VS = 3V 25 100 µV VICM =1.5V l 200 µV VS = 5V 25 100 µV VICM = 2.5V l 200 µV VS = 10V 25 100 µV VICM = 5V l 200 µV ∆VOSDIFF/∆T Differential Offset Voltage Drift VS = 3V l 0.45 1.25 µV/°C (Notes 7, 8) VS = 5V l 0.45 1.25 µV/°C VS = 10V l 0.45 1.25 µV/°C AVOL Open-Loop Voltage Gain 125 dB IB (Note 10) Input Bias Current VS = 3V l –1 –0.5 –0.1 µA VS = 5V l –1 –0.5 –0.1 µA VS = 10V l –1 –0.5 –0.1 µA IOS (Note 10) Input Offset Current VS = 3V ±5 ±50 nA l ±75 nA VS = 5V ±5 ±50 nA l ±75 nA VS = 10V ±5 ±50 nA l ±75 nA ∆IOS/∆T (Note 8) Input Offset Current Drift VS = 3V l ±30 ±150 pA/°C VS = 5V l ±30 ±150 pA/°C VS = 10V l ±30 ±150 pA/°C RIN Input Resistance Common Mode 50 MΩ Differential Mode 40 kΩ CIN Input Capacitance Differential Mode 2 pF 6363fb 4 For more information www.linear.com/LTC6363
Complete LTC6363 Family. The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications and typical values are at TA = 25°C. V+ = 10V, V– = 0V, VCM = VOCM = VICM = 5V, VSHDN = open. VS is defined as (V+ – V–). VOUTCM is defined as (V+OUT + V–OUT)/2. VICM is defined as (V+IN + V–IN)/2. VOUTDIFF is defined as (V+OUT – V–OUT). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IS Supply Current VS = 3V, Active 1.7 1.8 mA l 1.95 mA VS = 3V, Shutdown l 20 40 µA VS = 5V, Active 1.75 1.85 mA l 2 mA VS = 5V, Shutdown l 30 65 µA VS = 10V, Active 1.9 2 mA l 2.2 mA VS = 10V, Shutdown l 70 130 µA VIL SHDN Input Logic Low l (V+ + V–)/2 + 0.4 V VIH SHDN Input Logic High l (V+ + V–)/2 + 1.2 V tON Turn-On Time 4 μs tOFF Turn-Off Time 2 μs RSHDN Input Resistance, SHDN Pin l 300 500 700 kΩ
LTC6363 Only. The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications and typical values are at TA = 25°C. V+ = 10V, V– = 0V, VCM = VOCM = VICM = 5V, VSHDN = open. VS is defined as (V+ – V–). VOUTCM is defined as (V+OUT + V–OUT)/2. VICM is defined as (V+IN + V–IN)/2. VOUTDIFF is defined as (V+OUT – V–OUT). Typical specifications apply to the internal amplifier inside all versions. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOSDIFF (Note 7) Differential Offset Voltage VS = 3V 25 100 µV VICM =1.5V l 200 µV VS = 5V 25 100 µV VICM = 2.5V l 200 µV VS = 10V 25 100 µV VICM = 5V l 200 µV ∆VOSDIFF/∆T Differential Offset Voltage Drift VS = 3V l 0.45 1.25 µV/°C (Notes 7, 8) VS = 5V l 0.45 1.25 µV/°C VS = 10V l 0.45 1.25 µV/°C AVOL Open-Loop Voltage Gain 125 dB IB (Note 10) Input Bias Current VS = 3V l –1 –0.5 –0.1 µA VS = 5V l –1 –0.5 –0.1 µA VS = 10V l –1 –0.5 –0.1 µA IOS (Note 10) Input Offset Current VS = 3V ±5 ±50 nA l ±75 nA VS = 5V ±5 ±50 nA l ±75 nA VS = 10V ±5 ±50 nA l ±75 nA ∆IOS/∆T (Note 8) Input Offset Current Drift VS = 3V l ±30 ±150 pA/°C VS = 5V l ±30 ±150 pA/°C VS = 10V l ±30 ±150 pA/°C RIN Input Resistance Common Mode 50 MΩ Differential Mode 40 kΩ CIN Input Capacitance Differential Mode 2 pF 6363fb 4 For more information www.linear.com/LTC6363
