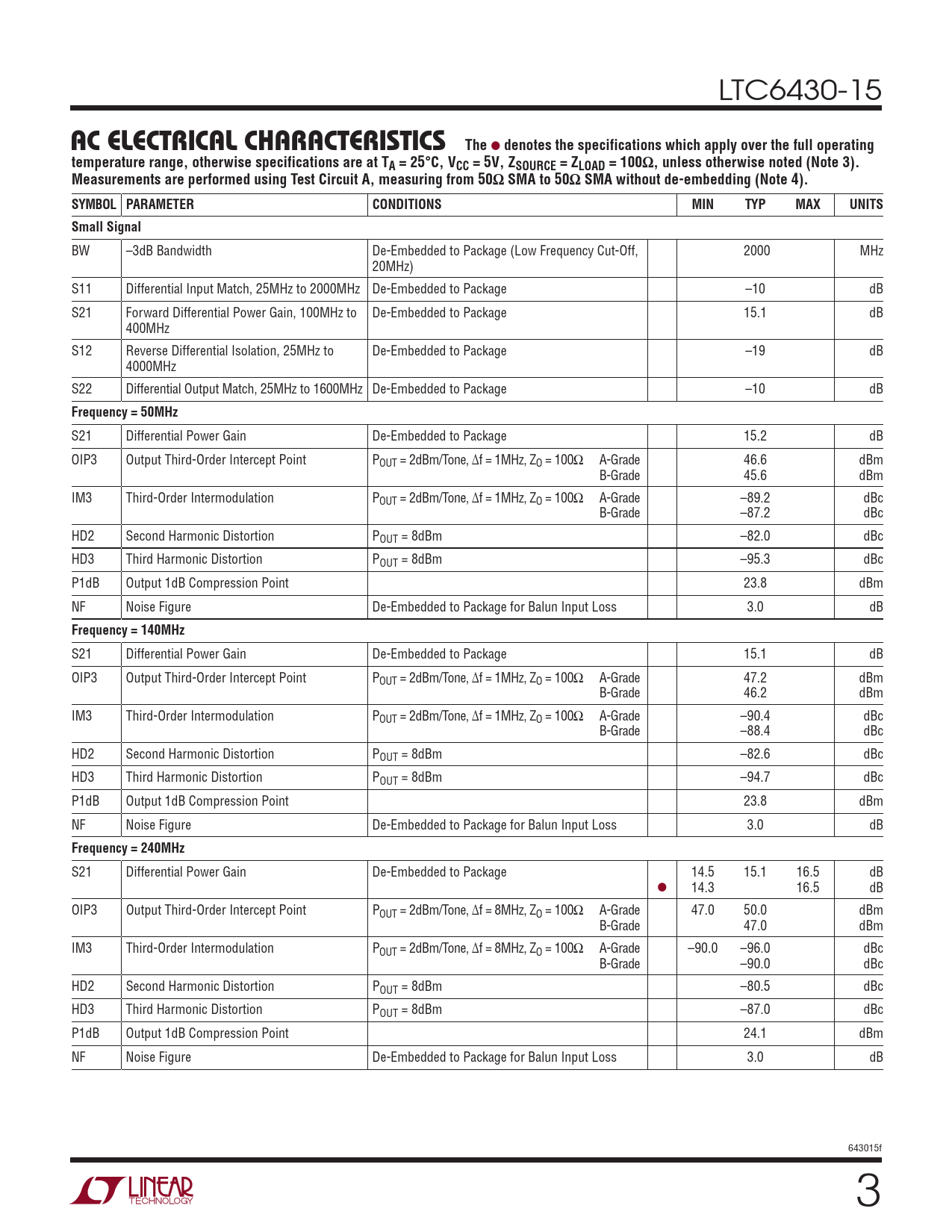

elecTrical characTerisTics The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC6430-15
ac elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, VCC = 5V, ZSOURCE = ZLOAD = 100Ω, unless otherwise noted (Note 3). Measurements are performed using Test Circuit A, measuring from 50Ω SMA to 50Ω SMA without de-embedding (Note 4). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Small Signal
BW –3dB Bandwidth De-Embedded to Package (Low Frequency Cut-Off, 2000 MHz 20MHz) S11 Differential Input Match, 25MHz to 2000MHz De-Embedded to Package –10 dB S21 Forward Differential Power Gain, 100MHz to De-Embedded to Package 15.1 dB 400MHz S12 Reverse Differential Isolation, 25MHz to De-Embedded to Package –19 dB 4000MHz S22 Differential Output Match, 25MHz to 1600MHz De-Embedded to Package –10 dB
Frequency = 50MHz
S21 Differential Power Gain De-Embedded to Package 15.2 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 46.6 dBm B-Grade 45.6 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –89.2 dBc B-Grade –87.2 dBc HD2 Second Harmonic Distortion POUT = 8dBm –82.0 dBc HD3 Third Harmonic Distortion POUT = 8dBm –95.3 dBc P1dB Output 1dB Compression Point 23.8 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.0 dB
Frequency = 140MHz
S21 Differential Power Gain De-Embedded to Package 15.1 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 47.2 dBm B-Grade 46.2 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –90.4 dBc B-Grade –88.4 dBc HD2 Second Harmonic Distortion POUT = 8dBm –82.6 dBc HD3 Third Harmonic Distortion POUT = 8dBm –94.7 dBc P1dB Output 1dB Compression Point 23.8 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.0 dB
Frequency = 240MHz
S21 Differential Power Gain De-Embedded to Package 14.5 15.1 16.5 dB l 14.3 16.5 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 8MHz, ZO = 100Ω A-Grade 47.0 50.0 dBm B-Grade 47.0 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 8MHz, ZO = 100Ω A-Grade –90.0 –96.0 dBc B-Grade –90.0 dBc HD2 Second Harmonic Distortion POUT = 8dBm –80.5 dBc HD3 Third Harmonic Distortion POUT = 8dBm –87.0 dBc P1dB Output 1dB Compression Point 24.1 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.0 dB 643015f 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information DC Electrical Characteristics AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation Applications Information Differential S Parameters Typical Applications Package Description Typical Application Related Parts
