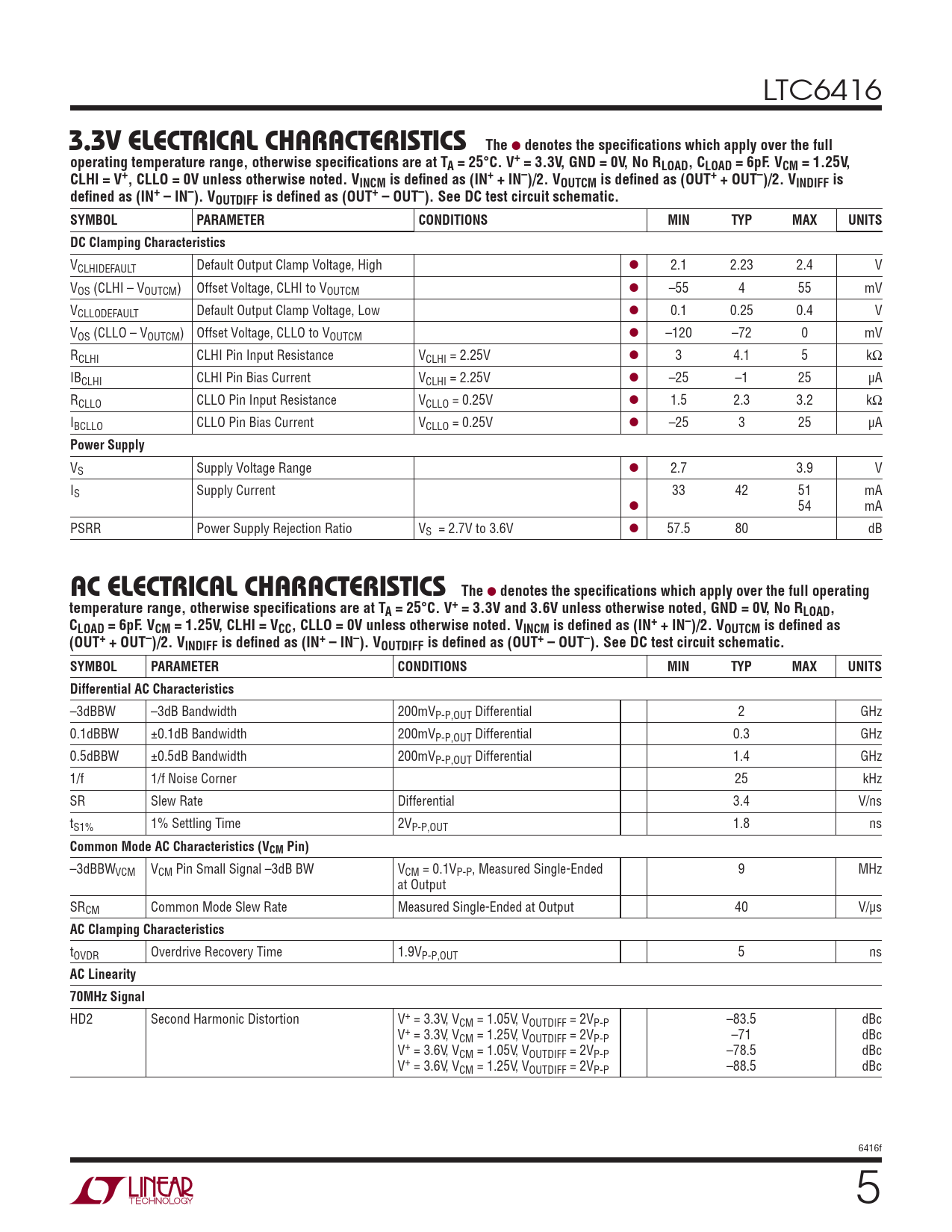

The. 3.3V ELECTRICAL CHARACTERISTICS. denotes the specifi cations which apply over the full
Model Line for this Datasheet
Text Version of Document
LTC6416
The 3.3V ELECTRICAL CHARACTERISTICS
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. V+ = 3.3V, GND = 0V, No RLOAD, CLOAD = 6pF. VCM = 1.25V, CLHI = V+, CLLO = 0V unless otherwise noted. VINCM is defi ned as (IN+ + IN–)/2. VOUTCM is defi ned as (OUT+ + OUT–)/2. VINDIFF is defi ned as (IN+ – IN–). VOUTDIFF is defi ned as (OUT+ – OUT–). See DC test circuit schematic. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS DC Clamping Characteristics
VCLHIDEFAULT Default Output Clamp Voltage, High l 2.1 2.23 2.4 V VOS (CLHI – VOUTCM) Offset Voltage, CLHI to VOUTCM l –55 4 55 mV VCLLODEFAULT Default Output Clamp Voltage, Low l 0.1 0.25 0.4 V VOS (CLLO – VOUTCM) Offset Voltage, CLLO to VOUTCM l –120 –72 0 mV RCLHI CLHI Pin Input Resistance VCLHI = 2.25V l 3 4.1 5 kΩ IBCLHI CLHI Pin Bias Current VCLHI = 2.25V l –25 –1 25 μA RCLLO CLLO Pin Input Resistance VCLLO = 0.25V l 1.5 2.3 3.2 kΩ IBCLLO CLLO Pin Bias Current VCLLO = 0.25V l –25 3 25 μA
Power Supply
VS Supply Voltage Range l 2.7 3.9 V IS Supply Current 33 42 51 mA l 54 mA PSRR Power Supply Rejection Ratio VS = 2.7V to 3.6V l 57.5 80 dB
