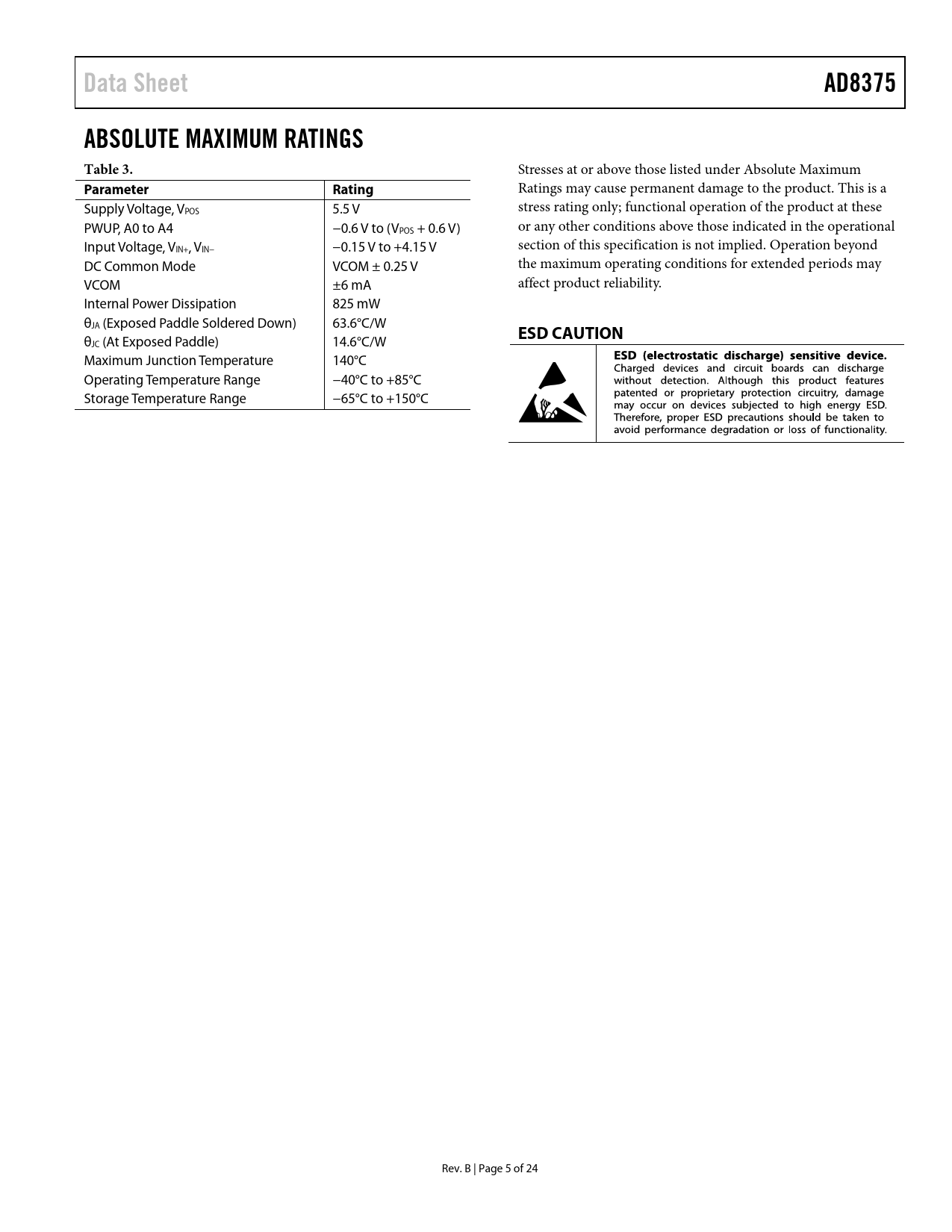

Data Sheet. AD8375. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Data Sheet AD8375 ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage, VPOS 5.5 V stress rating only; functional operation of the product at these PWUP, A0 to A4 −0.6 V to (VPOS + 0.6 V) or any other conditions above those indicated in the operational Input Voltage, VIN+, VIN− −0.15 V to +4.15 V section of this specification is not implied. Operation beyond DC Common Mode VCOM ± 0.25 V the maximum operating conditions for extended periods may VCOM ±6 mA affect product reliability. Internal Power Dissipation 825 mW θJA (Exposed Paddle Soldered Down) 63.6°C/W
ESD CAUTION
θJC (At Exposed Paddle) 14.6°C/W Maximum Junction Temperature 140°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Rev. B | Page 5 of 24 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION BASIC STRUCTURE Input System Output Amplifier Gain Control APPLICATIONS BASIC CONNECTIONS SINGLE-ENDED-TO-DIFFERENTIAL CONVERSION BROADBAND OPERATION ADC INTERFACING LAYOUT CONSIDERATIONS CHARACTERIZATION TEST CIRCUITS Differential-to-Differential Characterization EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
