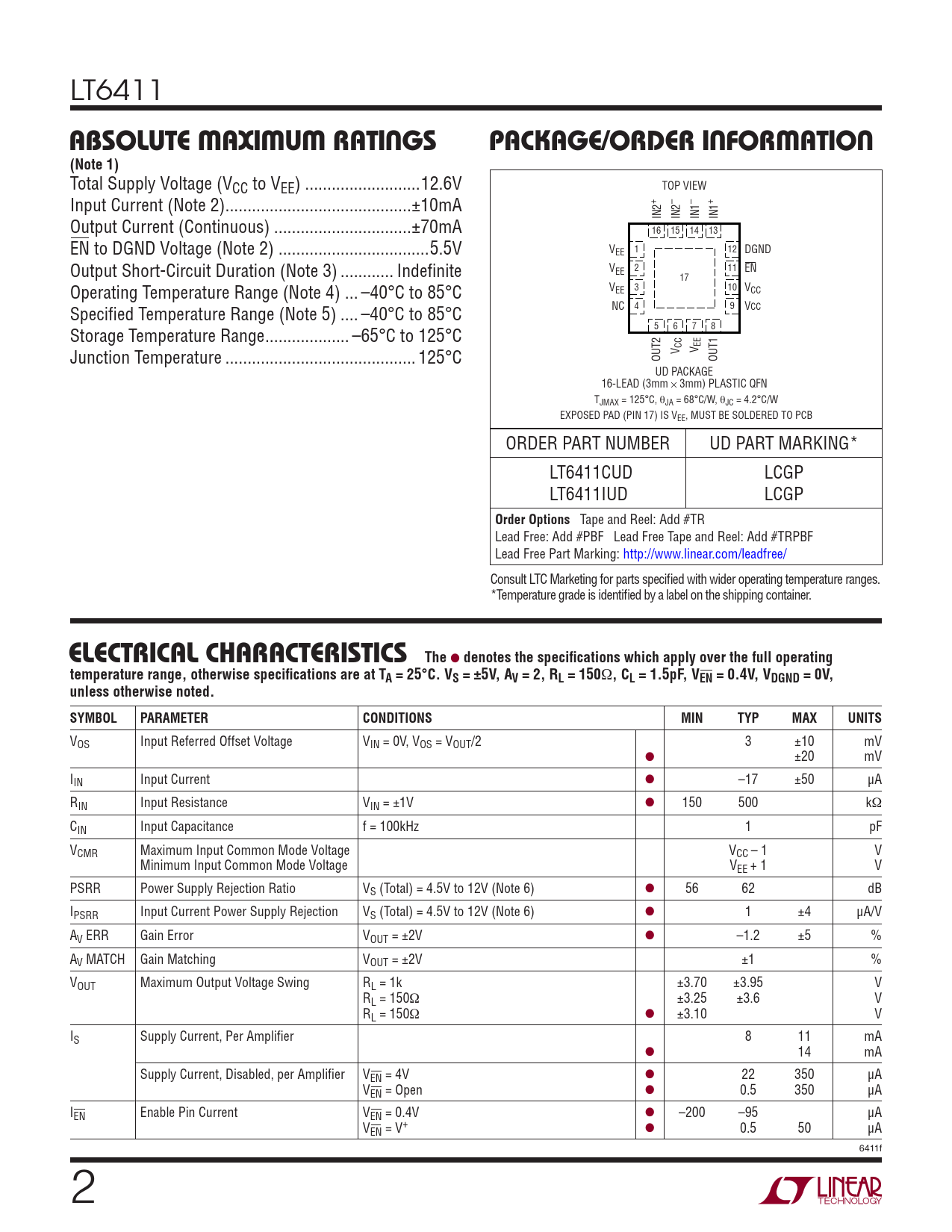

LT6411
ABSOLUTE MAXIMUM RATINGS PACKAGE/ORDER INFORMATION (Note 1)
Total Supply Voltage (VCC to VEE) ..12.6V TOP VIEW Input Current (Note 2) ..±10mA + – – + IN2 IN2 IN1 IN1 Output Current (Continuous) ...±70mA 16 15 14 13 EN to DGND Voltage (Note 2) ..5.5V V 1 12 DGND EE Output Short-Circuit Duration (Note 3) .. Indefi nite V 2 11 EN EE 17 Operating Temperature Range (Note 4) ... –40°C to 85°C V 3 10 V EE CC 4 9 Specifi ed Temperature Range (Note 5) .. –40°C to 85°C NC VCC 5 6 7 8 Storage Temperature Range ... –65°C to 125°C CC EEV Junction Temperature ... 125°C V OUT2 OUT1 UD PACKAGE 16-LEAD (3mm × 3mm) PLASTIC QFN TJMAX = 125°C, θJA = 68°C/W, θJC = 4.2°C/W EXPOSED PAD (PIN 17) IS VEE, MUST BE SOLDERED TO PCB ORDER PART NUMBER UD PART MARKING* LT6411CUD LCGP LT6411IUD LCGP
Order Options
Tape and Reel: Add #TR Lead Free: Add #PBF Lead Free Tape and Reel: Add #TRPBF Lead Free Part Marking: http://www.linear.com/leadfree/ Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *Temperature grade is identifi ed by a label on the shipping container.
ELECTRICAL CHARACTERISTICS The
●
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VS = ±5V, AV = 2, RL = 150
Ω
, CL = 1.5pF, VEN = 0.4V, VDGND = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Referred Offset Voltage VIN = 0V, VOS = VOUT/2 3 ±10 mV ● ±20 mV IIN Input Current ● –17 ±50 µA RIN Input Resistance VIN = ±1V ● 150 500 kΩ CIN Input Capacitance f = 100kHz 1 pF VCMR Maximum Input Common Mode Voltage VCC – 1 V Minimum Input Common Mode Voltage VEE + 1 V PSRR Power Supply Rejection Ratio VS (Total) = 4.5V to 12V (Note 6) ● 56 62 dB IPSRR Input Current Power Supply Rejection VS (Total) = 4.5V to 12V (Note 6) ● 1 ±4 µA/V AV ERR Gain Error VOUT = ±2V ● –1.2 ±5 % AV MATCH Gain Matching VOUT = ±2V ±1 % VOUT Maximum Output Voltage Swing RL = 1k ±3.70 ±3.95 V RL = 150Ω ±3.25 ±3.6 V RL = 150Ω ● ±3.10 V IS Supply Current, Per Amplifi er 8 11 mA ● 14 mA Supply Current, Disabled, per Amplifi er VEN = 4V ● 22 350 µA VEN = Open ● 0.5 350 µA IEN Enable Pin Current VEN = 0.4V ● –200 –95 µA VEN = V+ ● 0.5 50 µA 6411f 2
