Datasheet ADuM3190S (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Aerospace High Stability Isolated Error Amplifier |
| Pages / Page | 14 / 6 — 7/. Accuracy. is. measured. using. circuit. configuration. in. Figure. 3. … |
| Revision | C |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |
7/. Accuracy. is. measured. using. circuit. configuration. in. Figure. 3. for. EAout. and. Figure. 4. for. EAout2. TABLE. IB. NOTES:. 1/. Parameter. is. part. of. device
Model Line for this Datasheet
Text Version of Document

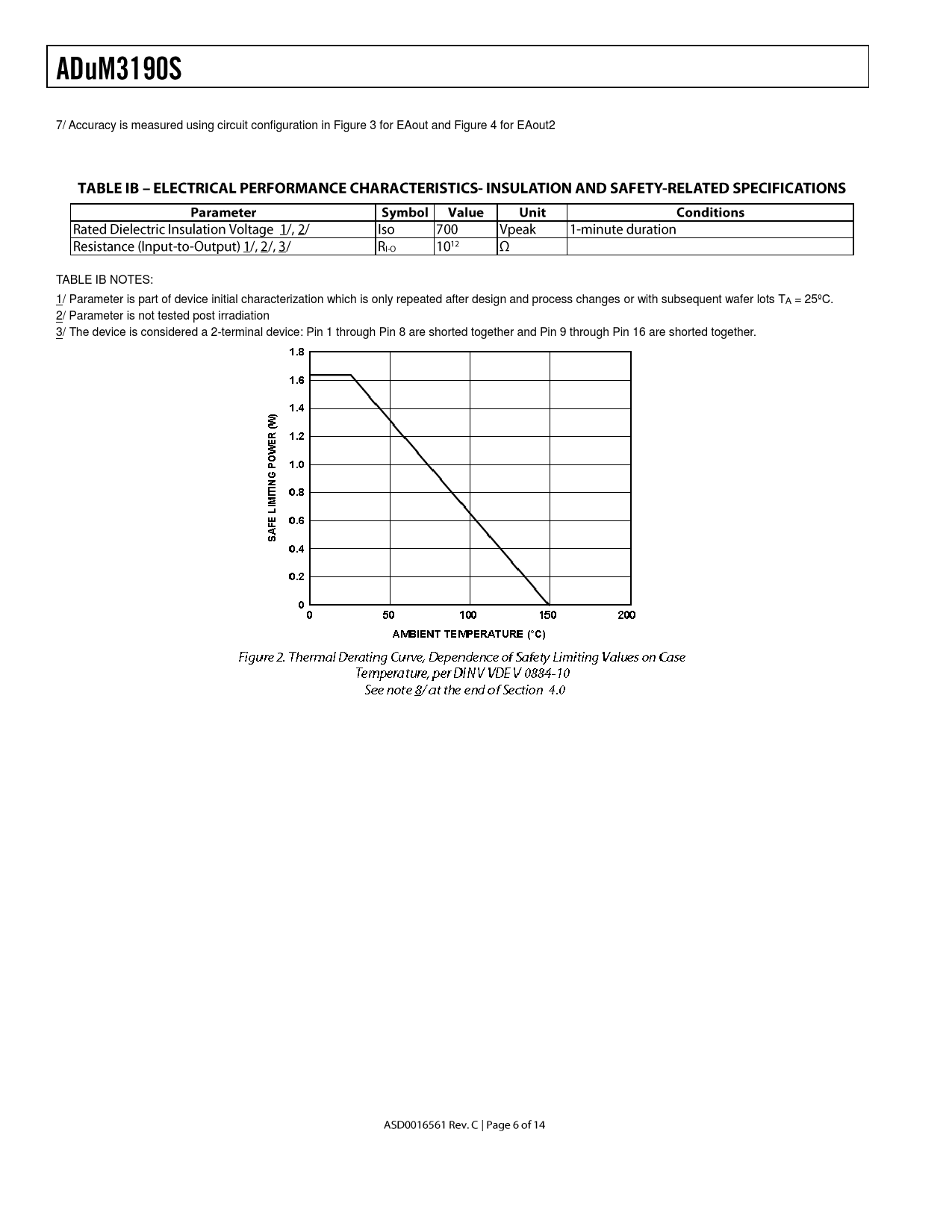

7/ Accuracy is measured using circuit configuration in Figure 3 for EAout and Figure 4 for EAout2 TABLE IB NOTES: 1/ Parameter is part of device initial characterization which is only repeated after design and process changes or with subsequent wafer lots TA = 25ºC. 2/ Parameter is not tested post irradiation 3/ The device is considered a 2-terminal device: Pin 1 through Pin 8 are shorted together and Pin 9 through Pin 16 are shorted together.
