Datasheet LT6557 (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | 500MHz, 2200V/µs Gain of 2, Single Supply Triple Video Amplifier with Input Bias Control |
| Pages / Page | 12 / 10 — SIMPLIFIED SCHEMATIC. PACKAGE DESCRIPTION. GN Package. 16-Lead Plastic … |
| File Format / Size | PDF / 615 Kb |
| Document Language | English |

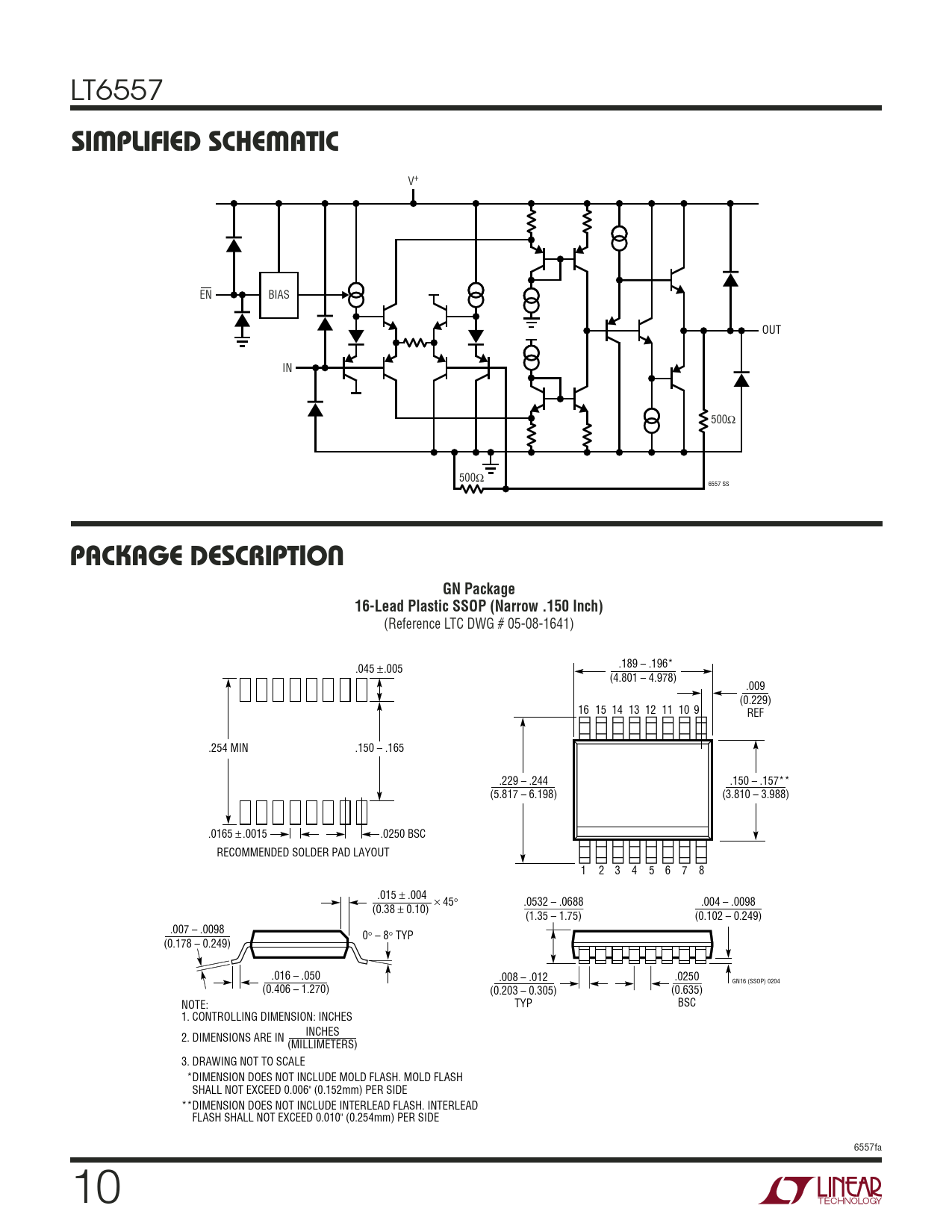

SIMPLIFIED SCHEMATIC. PACKAGE DESCRIPTION. GN Package. 16-Lead Plastic SSOP (Narrow .150 Inch)
Model Line for this Datasheet
Text Version of Document
LT6557
SIMPLIFIED SCHEMATIC
V+ EN BIAS OUT IN 500Ω 500Ω 6557 SS
PACKAGE DESCRIPTION GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
(Reference LTC DWG # 05-08-1641) .189 – .196* .045 ±.005 (4.801 – 4.978) .009 (0.229) 16 15 14 13 12 11 10 9 REF .254 MIN .150 – .165 .229 – .244 .150 – .157** (5.817 – 6.198) (3.810 – 3.988) .0165 ± .0015 .0250 BSC RECOMMENDED SOLDER PAD LAYOUT 1 2 3 4 5 6 7 8 .015 ± .004 × 45° .0532 – .0688 .004 – .0098 (0.38 ± 0.10) (1.35 – 1.75) (0.102 – 0.249) .007 – .0098 0° – 8° TYP (0.178 – 0.249) .016 – .050 .008 – .012 .0250 GN16 (SSOP) 0204 (0.406 – 1.270) (0.203 – 0.305) (0.635) NOTE: TYP BSC 1. CONTROLLING DIMENSION: INCHES INCHES 2. DIMENSIONS ARE IN (MILLIMETERS) 3. DRAWING NOT TO SCALE *DIMENSION DOES NOT INCLUDE MOLD FLASH. MOLD FLASH SHALL NOT EXCEED 0.006" (0.152mm) PER SIDE **DIMENSION DOES NOT INCLUDE INTERLEAD FLASH. INTERLEAD FLASH SHALL NOT EXCEED 0.010" (0.254mm) PER SIDE 6557fa 10
SIMPLIFIED SCHEMATIC
V+ EN BIAS OUT IN 500Ω 500Ω 6557 SS
PACKAGE DESCRIPTION GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
(Reference LTC DWG # 05-08-1641) .189 – .196* .045 ±.005 (4.801 – 4.978) .009 (0.229) 16 15 14 13 12 11 10 9 REF .254 MIN .150 – .165 .229 – .244 .150 – .157** (5.817 – 6.198) (3.810 – 3.988) .0165 ± .0015 .0250 BSC RECOMMENDED SOLDER PAD LAYOUT 1 2 3 4 5 6 7 8 .015 ± .004 × 45° .0532 – .0688 .004 – .0098 (0.38 ± 0.10) (1.35 – 1.75) (0.102 – 0.249) .007 – .0098 0° – 8° TYP (0.178 – 0.249) .016 – .050 .008 – .012 .0250 GN16 (SSOP) 0204 (0.406 – 1.270) (0.203 – 0.305) (0.635) NOTE: TYP BSC 1. CONTROLLING DIMENSION: INCHES INCHES 2. DIMENSIONS ARE IN (MILLIMETERS) 3. DRAWING NOT TO SCALE *DIMENSION DOES NOT INCLUDE MOLD FLASH. MOLD FLASH SHALL NOT EXCEED 0.006" (0.152mm) PER SIDE **DIMENSION DOES NOT INCLUDE INTERLEAD FLASH. INTERLEAD FLASH SHALL NOT EXCEED 0.010" (0.254mm) PER SIDE 6557fa 10
