| Description | Dual 500mA, Differential xDSL Line Driver in 28-Lead TSSOP Package |
| Pages / Page | 16 / 2 — ABSOLUTE MAXIMUM RATINGS. PACKAGE/ORDER INFORMATION. (Note 1). ELECTRICAL … |
| File Format / Size | PDF / 252 Kb |
| Document Language | English |

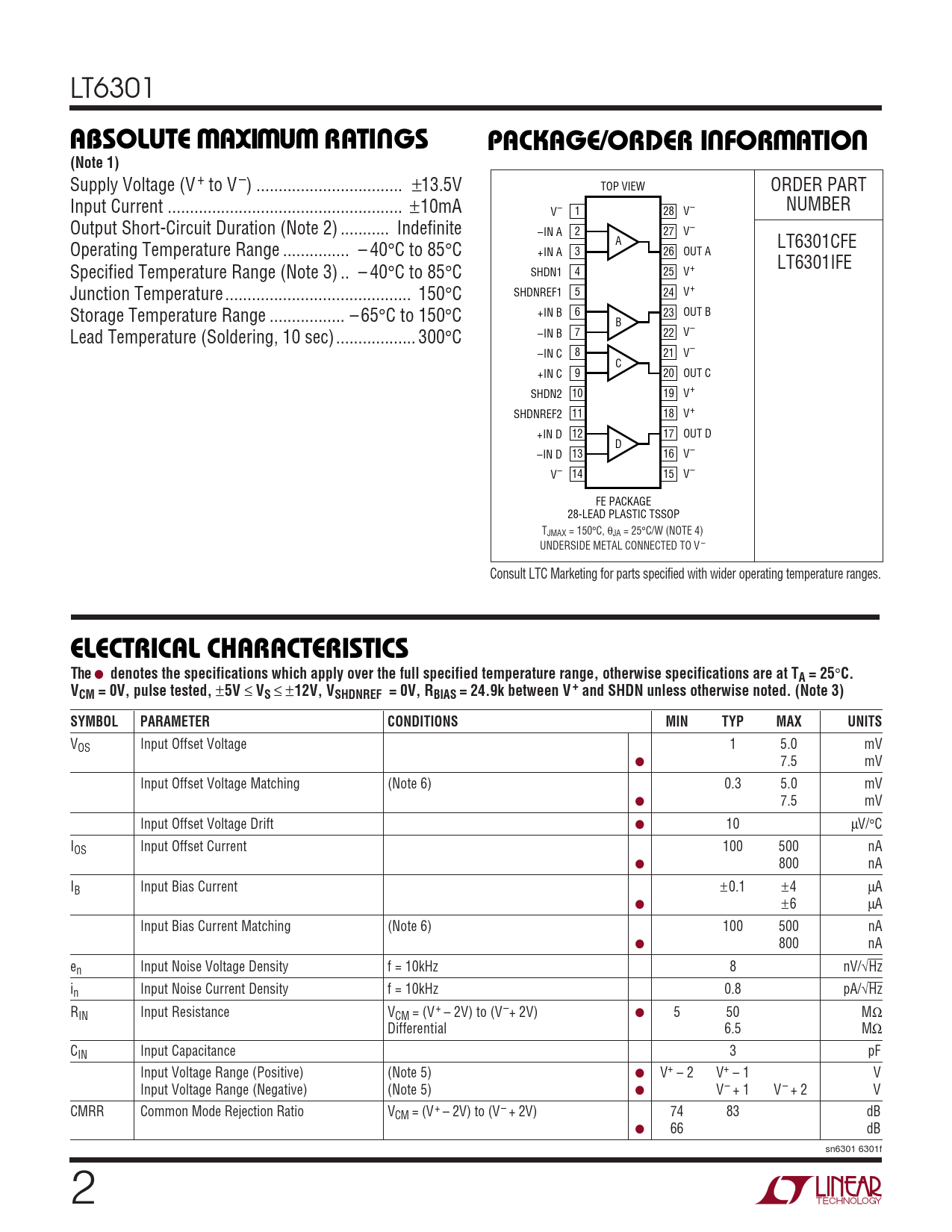

ABSOLUTE MAXIMUM RATINGS. PACKAGE/ORDER INFORMATION. (Note 1). ELECTRICAL CHARACTERISTICS. The
Model Line for this Datasheet
Text Version of Document
LT6301
W W W U U W U ABSOLUTE MAXIMUM RATINGS PACKAGE/ORDER INFORMATION (Note 1)
Supply Voltage (V + to V –) ... ±13.5V TOP VIEW ORDER PART Input Current ... ±10mA NUMBER V– 1 28 V– Output Short-Circuit Duration (Note 2) ... Indefinite –IN A 2 27 V– A LT6301CFE Operating Temperature Range ... – 40°C to 85°C +IN A 3 26 OUT A LT6301IFE Specified Temperature Range (Note 3) .. – 40°C to 85°C SHDN1 4 25 V+ Junction Temperature .. 150°C SHDNREF1 5 24 V+ Storage Temperature Range ... – 65°C to 150°C +IN B 6 23 OUT B B Lead Temperature (Soldering, 10 sec).. 300°C –IN B 7 22 V– –IN C 8 21 V– C +IN C 9 20 OUT C SHDN2 10 19 V+ SHDNREF2 11 18 V+ +IN D 12 17 OUT D D –IN D 13 16 V– V– 14 15 V– FE PACKAGE 28-LEAD PLASTIC TSSOP TJMAX = 150°C, θJA = 25°C/W (NOTE 4) UNDERSIDE METAL CONNECTED TO V – Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full specified temperature range, otherwise specifications are at TA = 25
°
C. VCM = 0V, pulse tested,
±
5V
≤
VS
≤ ±
12V, VSHDNREF = 0V, RBIAS = 24.9k between V+ and SHDN unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage 1 5.0 mV ● 7.5 mV Input Offset Voltage Matching (Note 6) 0.3 5.0 mV ● 7.5 mV Input Offset Voltage Drift ● 10 µV/°C IOS Input Offset Current 100 500 nA ● 800 nA IB Input Bias Current ±0.1 ±4 µA ● ±6 µA Input Bias Current Matching (Note 6) 100 500 nA ● 800 nA en Input Noise Voltage Density f = 10kHz 8 nV/√Hz in Input Noise Current Density f = 10kHz 0.8 pA/√Hz RIN Input Resistance VCM = (V+ – 2V) to (V–+ 2V) ● 5 50 MΩ Differential 6.5 MΩ CIN Input Capacitance 3 pF Input Voltage Range (Positive) (Note 5) ● V+ – 2 V+ – 1 V Input Voltage Range (Negative) (Note 5) ● V– + 1 V– + 2 V CMRR Common Mode Rejection Ratio VCM = (V+ – 2V) to (V– + 2V) 74 83 dB ● 66 dB sn6301 6301f 2
