Datasheet LT1363 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 70MHz, 1000V/µs Op Amp |
| Pages / Page | 12 / 4 — ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply … |
| File Format / Size | PDF / 220 Kb |
| Document Language | English |

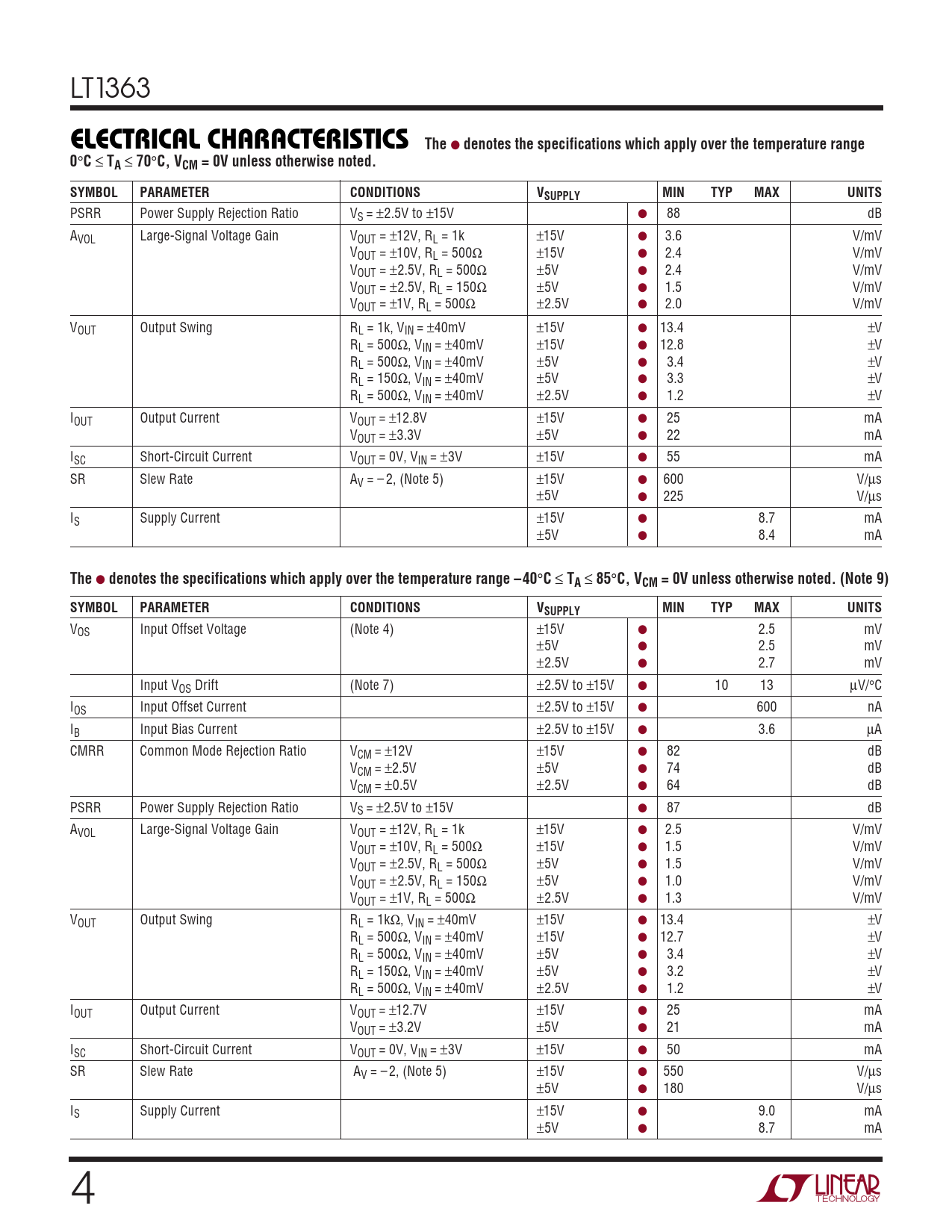

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the temperature range
Model Line for this Datasheet
Text Version of Document
LT1363
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the temperature range 0
°
C
≤
TA
≤
70
°
C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
PSRR Power Supply Rejection Ratio VS = ±2.5V to ±15V ● 88 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 1k ±15V ● 3.6 V/mV VOUT = ±10V, RL = 500Ω ±15V ● 2.4 V/mV VOUT = ±2.5V, RL = 500Ω ±5V ● 2.4 V/mV VOUT = ±2.5V, RL = 150Ω ±5V ● 1.5 V/mV VOUT = ±1V, RL = 500Ω ±2.5V ● 2.0 V/mV VOUT Output Swing RL = 1k, VIN = ±40mV ±15V ● 13.4 ±V RL = 500Ω, VIN = ±40mV ±15V ● 12.8 ±V RL = 500Ω, VIN = ±40mV ±5V ● 3.4 ±V RL = 150Ω, VIN = ±40mV ±5V ● 3.3 ±V RL = 500Ω, VIN = ±40mV ±2.5V ● 1.2 ±V IOUT Output Current VOUT = ±12.8V ±15V ● 25 mA VOUT = ±3.3V ±5V ● 22 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±3V ±15V ● 55 mA SR Slew Rate AV = – 2, (Note 5) ±15V ● 600 V/µs ±5V ● 225 V/µs IS Supply Current ±15V ● 8.7 mA ±5V ● 8.4 mA
The
●
denotes the specifications which apply over the temperature range –40
°
C
≤
TA
≤
85
°
C, VCM = 0V unless otherwise noted. (Note 9) SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 4) ±15V ● 2.5 mV ±5V ● 2.5 mV ±2.5V ● 2.7 mV Input VOS Drift (Note 7) ±2.5V to ±15V ● 10 13 µV/°C IOS Input Offset Current ±2.5V to ±15V ● 600 nA IB Input Bias Current ±2.5V to ±15V ● 3.6 µA CMRR Common Mode Rejection Ratio VCM = ±12V ±15V ● 82 dB VCM = ±2.5V ±5V ● 74 dB VCM = ±0.5V ±2.5V ● 64 dB PSRR Power Supply Rejection Ratio VS = ±2.5V to ±15V ● 87 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 1k ±15V ● 2.5 V/mV VOUT = ±10V, RL = 500Ω ±15V ● 1.5 V/mV VOUT = ±2.5V, RL = 500Ω ±5V ● 1.5 V/mV VOUT = ±2.5V, RL = 150Ω ±5V ● 1.0 V/mV VOUT = ±1V, RL = 500Ω ±2.5V ● 1.3 V/mV VOUT Output Swing RL = 1kΩ, VIN = ±40mV ±15V ● 13.4 ±V RL = 500Ω, VIN = ±40mV ±15V ● 12.7 ±V RL = 500Ω, VIN = ±40mV ±5V ● 3.4 ±V RL = 150Ω, VIN = ±40mV ±5V ● 3.2 ±V RL = 500Ω, VIN = ±40mV ±2.5V ● 1.2 ±V IOUT Output Current VOUT = ±12.7V ±15V ● 25 mA VOUT = ±3.2V ±5V ● 21 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±3V ±15V ● 50 mA SR Slew Rate AV = – 2, (Note 5) ±15V ● 550 V/µs ±5V ● 180 V/µs IS Supply Current ±15V ● 9.0 mA ±5V ● 8.7 mA 4
