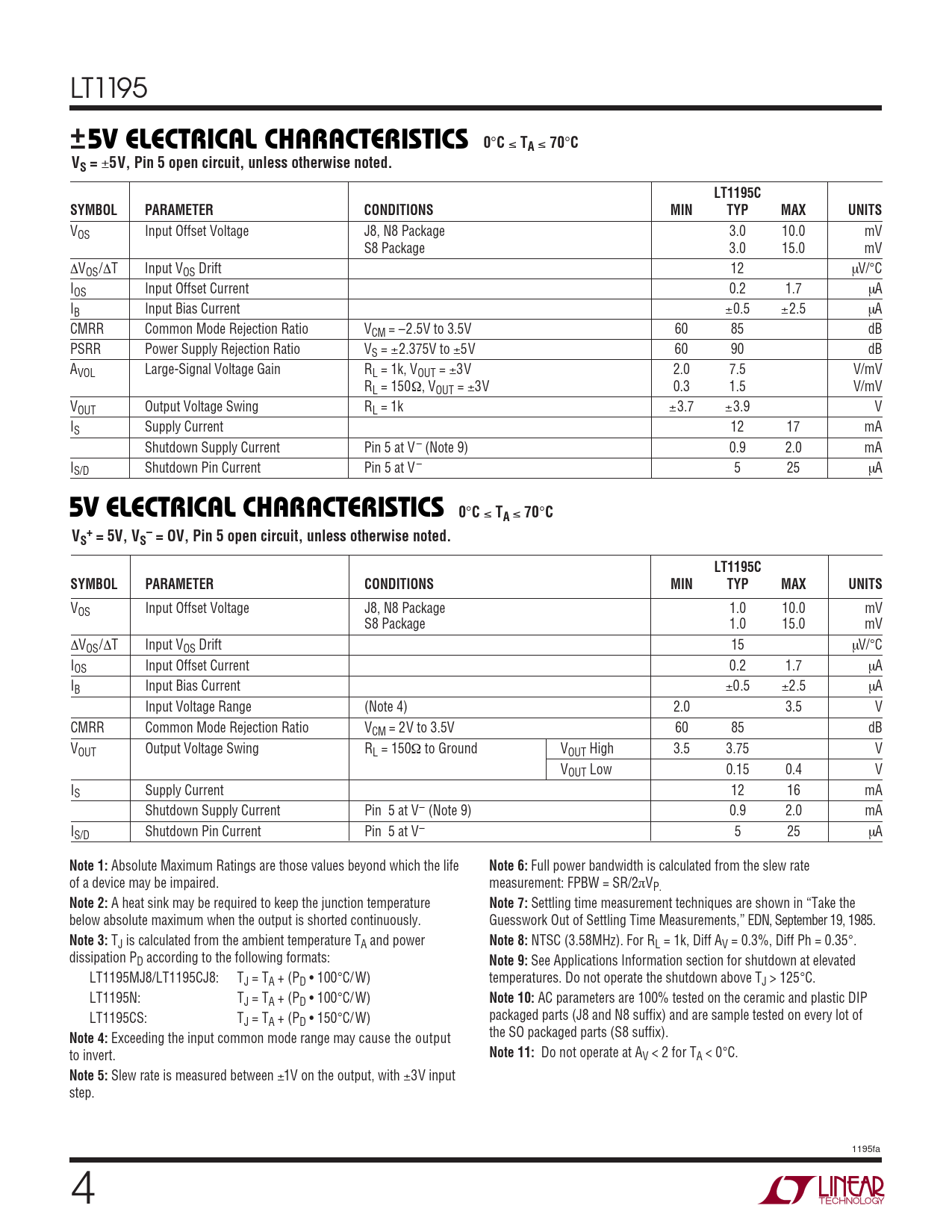

+5V ELECTRICAL CHARACTERISTICS 0. VS =. 5V, Pin 5 open circuit, unless otherwise noted. LT1195C. SYMBOL. PARAMETER. CONDITIONS. MIN
Model Line for this Datasheet
Text Version of Document
LT1195
+5V ELECTRICAL CHARACTERISTICS 0
°
C
≤
TA
≤
70
°
C – VS =
±
5V, Pin 5 open circuit, unless otherwise noted. LT1195C SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage J8, N8 Package 3.0 10.0 mV S8 Package 3.0 15.0 mV ∆VOS/∆T Input VOS Drift 12 µV/°C IOS Input Offset Current 0.2 1.7 µA IB Input Bias Current ±0.5 ±2.5 µA CMRR Common Mode Rejection Ratio VCM = –2.5V to 3.5V 60 85 dB PSRR Power Supply Rejection Ratio VS = ±2.375V to ±5V 60 90 dB AVOL Large-Signal Voltage Gain RL = 1k, VOUT = ±3V 2.0 7.5 V/mV RL = 150Ω, VOUT = ±3V 0.3 1.5 V/mV VOUT Output Voltage Swing RL = 1k ±3.7 ±3.9 V IS Supply Current 12 17 mA Shutdown Supply Current Pin 5 at V – (Note 9) 0.9 2.0 mA IS/D Shutdown Pin Current Pin 5 at V – 5 25 µA
5V ELECTRICAL CHARACTERISTICS 0
°
C
≤
TA
≤
70
°
C V + – S = 5V, VS = OV, Pin 5 open circuit, unless otherwise noted. LT1195C SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage J8, N8 Package 1.0 10.0 mV S8 Package 1.0 15.0 mV ∆VOS/∆T Input VOS Drift 15 µV/°C IOS Input Offset Current 0.2 1.7 µA IB Input Bias Current ±0.5 ±2.5 µA Input Voltage Range (Note 4) 2.0 3.5 V CMRR Common Mode Rejection Ratio VCM = 2V to 3.5V 60 85 dB VOUT Output Voltage Swing RL = 150Ω to Ground VOUT High 3.5 3.75 V VOUT Low 0.15 0.4 V IS Supply Current 12 16 mA Shutdown Supply Current Pin 5 at V– (Note 9) 0.9 2.0 mA IS/D Shutdown Pin Current Pin 5 at V– 5 25 µA
