TYPICAL PERFOR A CE CHARACTERISTICS. Output Voltage Step vs. Slew Rate vs Temperature. Settling Time, AV = –1
Model Line for this Datasheet
Text Version of Document
LT1195

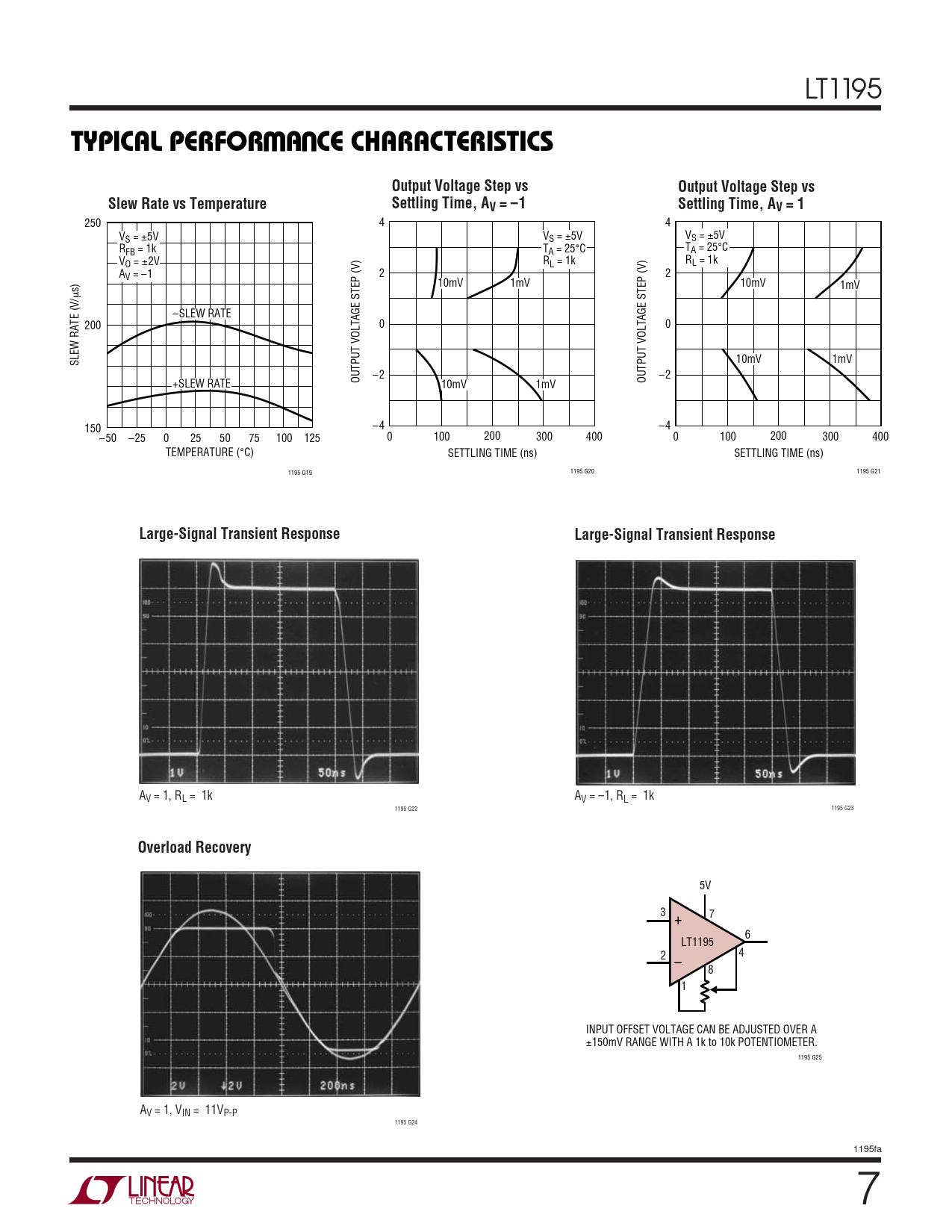

W U TYPICAL PERFOR A CE CHARACTERISTICS Output Voltage Step vs Output Voltage Step vs Slew Rate vs Temperature Settling Time, AV = –1 Settling Time, AV = 1
250 4 4 V V S = ±5V VS = ±5V S = ±5V R T FB = 1k TA = 25°C A = 25°C V R O = ±2V RL = 1k L = 1k AV = –1 2 2 s) 10mV 1mV 10mV 1mV µ –SLEW RATE 200 0 0 SLEW RATE (V/ 10mV 1mV –2 –2 +SLEW RATE OUTPUT VOLTAGE STEP (V) OUTPUT VOLTAGE STEP (V) 10mV 1mV 150 –4 –4 –50 –25 0 25 50 75 100 125 0 100 200 300 400 0 100 200 300 400 TEMPERATURE (°C) SETTLING TIME (ns) SETTLING TIME (ns) 1195 G19 1195 G20 1195 G21
Large-Signal Transient Response Large-Signal Transient Response
AV = 1, RL = 1k AV = –1, RL = 1k 1195 G22 1195 G23
Overload Recovery
5V 3 + 7 6 LT1195 2 4 – 8 1 INPUT OFFSET VOLTAGE CAN BE ADJUSTED OVER A ±150mV RANGE WITH A 1k to 10k POTENTIOMETER. 1195 G25 AV = 1, VIN = 11VP-P 1195 G24 1195fa 7
