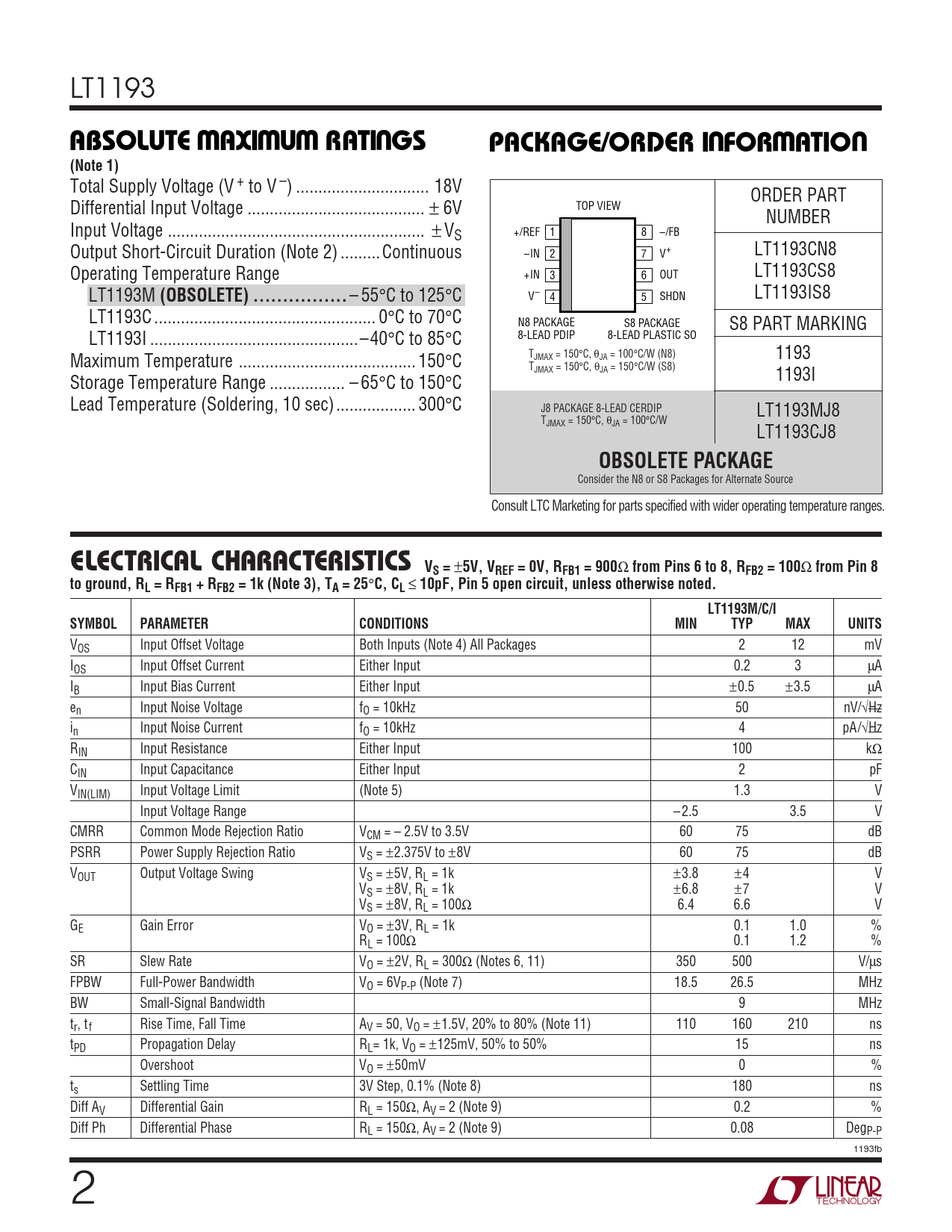

LT1193
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
Total Supply Voltage (V + to V –) .. 18V ORDER PART Differential Input Voltage .. ± 6V TOP VIEW NUMBER Input Voltage .. ± VS +/REF 1 8 –/FB Output Short-Circuit Duration (Note 2) ... Continuous –IN 2 7 V+ LT1193CN8 Operating Temperature Range +IN 3 6 OUT LT1193CS8 LT1193M
(OBSOLETE) ..
– 55°C to 125°C V– 4 5 SHDN LT1193IS8 LT1193C .. 0°C to 70°C N8 PACKAGE S8 PACKAGE S8 PART MARKING LT1193I ...–40°C to 85°C 8-LEAD PDIP 8-LEAD PLASTIC SO Maximum Temperature .. 150°C TJMAX = 150°C, θJA = 100°C/W (N8) 1193 TJMAX = 150°C, θJA = 150°C/W (S8) Storage Temperature Range ... – 65°C to 150°C 1193I Lead Temperature (Soldering, 10 sec).. 300°C J8 PACKAGE 8-LEAD CERDIP LT1193MJ8 TJMAX = 150°C, θJA = 100°C/W LT1193CJ8
OBSOLETE PACKAGE
Consider the N8 or S8 Packages for Alternate Source Consult LTC Marketing for parts specified with wider operating temperature ranges.
V ELECTRICAL CH C ARA TERISTICS S =
±
5V, VREF = 0V, RFB1 = 900
Ω
from Pins 6 to 8, RFB2 = 100
Ω
from Pin 8 to ground, RL = RFB1 + RFB2 = 1k (Note 3), TA = 25
°
C, CL
≤
10pF, Pin 5 open circuit, unless otherwise noted. LT1193M/C/I SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage Both Inputs (Note 4) All Packages 2 12 mV IOS Input Offset Current Either Input 0.2 3 µA IB Input Bias Current Either Input ±0.5 ±3.5 µA en Input Noise Voltage fO = 10kHz 50 nV/√Hz in Input Noise Current fO = 10kHz 4 pA/√Hz RIN Input Resistance Either Input 100 kΩ CIN Input Capacitance Either Input 2 pF VIN(LIM) Input Voltage Limit (Note 5) 1.3 V Input Voltage Range – 2.5 3.5 V CMRR Common Mode Rejection Ratio VCM = – 2.5V to 3.5V 60 75 dB PSRR Power Supply Rejection Ratio VS = ±2.375V to ±8V 60 75 dB VOUT Output Voltage Swing VS = ±5V, RL = 1k ±3.8 ±4 V VS = ±8V, RL = 1k ±6.8 ±7 V VS = ±8V, RL = 100Ω 6.4 6.6 V GE Gain Error VO = ±3V, RL = 1k 0.1 1.0 % RL = 100Ω 0.1 1.2 % SR Slew Rate VO = ±2V, RL = 300Ω (Notes 6, 11) 350 500 V/µs FPBW Full-Power Bandwidth VO = 6VP-P (Note 7) 18.5 26.5 MHz BW Small-Signal Bandwidth 9 MHz tr, tf Rise Time, Fall Time AV = 50, VO = ±1.5V, 20% to 80% (Note 11) 110 160 210 ns tPD Propagation Delay RL= 1k, VO = ±125mV, 50% to 50% 15 ns Overshoot VO = ±50mV 0 % ts Settling Time 3V Step, 0.1% (Note 8) 180 ns Diff AV Differential Gain RL = 150Ω, AV = 2 (Note 9) 0.2 % Diff Ph Differential Phase RL = 150Ω, AV = 2 (Note 9) 0.08 DegP-P 1193fb 2
